5V RGB Addressable Serpentine Stripxel (48/M, 2.5M spool) SKU: 60544

5V RGB Addressable Serpentine Stripxel (48/M, 2.5M spool)

$49.95 USD

Here’s an addressable RGB strip with a kink – literally! Snake that strip around using the special S-curve PCB.

In stock

$49.95 USD
SKU: 60544 Categories: , , Tag:

Description

Addressable RGB strips are nothing new, and they’re great for straight-line installations. But try to bend them around a corner and either they kink out, or you have to cut and splice them to make them lay flat.

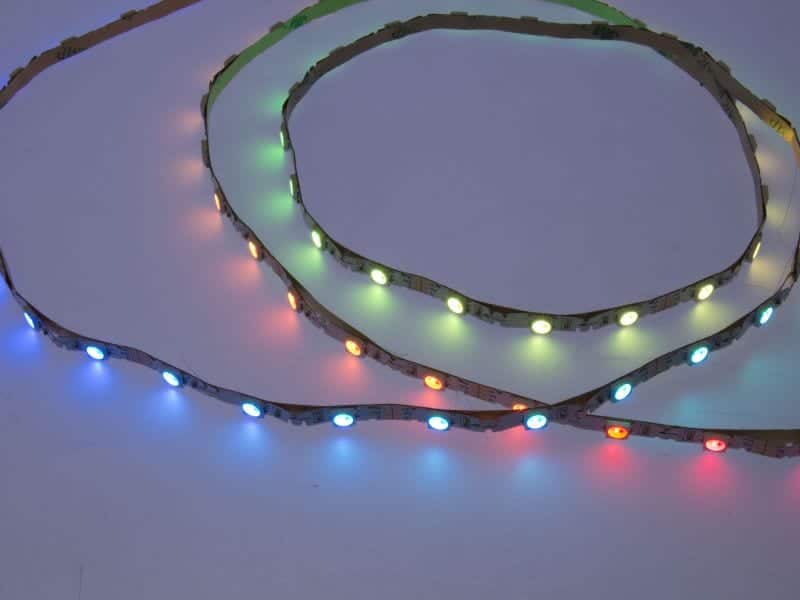

THIS is not a problem for the new Serpentine Stripxel! Constructed with a narrower-than-usual 5mm wide PCB that incorporates a little “S” bend between each LED, you can peel the backing and stick them down into actual curves that don’t kink out. Each S-bend absorbs up to ~ 20° deflection, allowing you to get curvy shapes down onto flat surfaces.

Specifications:

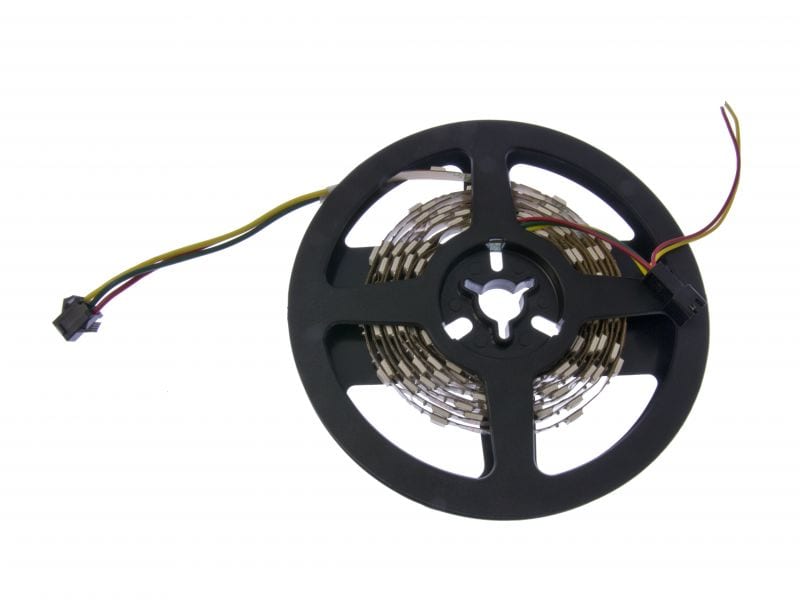

  • Only sold in 2.5M spools
  • SK6812 based SMD5050 LED modules (WS2812B compatible data communication)
  • 48 LEDs per Meter
  • Divisible in 3 LED sections, PCB soldered together in 0.5M lengths
  • Unusually thin 5mm wide, S-curve serpentine PCB (white)
  • Complete with 3-pin (Male & Female) JST SM connectors
  • IP20 (bare) finish
  • Luminance (mCD/M):
    • R: 12900
    • G: 33600
    • B: 9120
  • 5V nominal operation
  • 14.4Watt / Meter power consumption
  • Wiring standard:
    • Red: 5V
    • Yellow: Ground
    • Green: Data

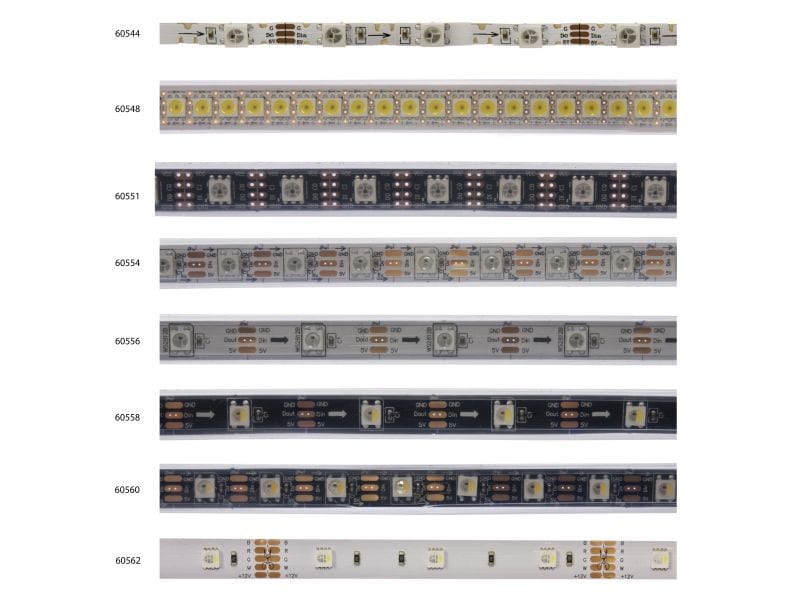

See other new LED strips that we carry:
SKU 60544 5V RGB Addressable Serpentine Stripxel (48/M, 2.5M spool)
SKU 60548 5V StripStar Addressable WHITE ONLY 144/M LED strip
SKU 60551 5V Addressable RGB Stripxel LEDs (60/M, APA102, Black PCB)
SKU 60554 5V RGB Addressable LED Stripxel (60/M, WS2812B, White PCB)
SKU 60556 Full Colour LED flexible strips WS2811/1903IC, waterproof
SKU 60558 Color LED strip, 30pcs LED SK6812RGBW IC/m, waterproof, IP65
SKU 60560 Full Colour LED strip, 60pcs LED &60pcs APA102C /m, waterproof, IP65
SKU 60562 RGBW LED flexible strips with IC, WS2811 IC/m Non-waterproof

More Info

Weight 0.108 kg
Dimensions 19 × 18 × 2.5 cm
