Description

Sometimes you don’t want to add color; just illumination. For those times, here’s an interesting addressable Stripxel – the StripStar!

144 LEDs/M, with each pixel having 3 white elements. Using standard 3-channel (usually R/G/B) control at 8 bits each, this cool-white LED strip offers 8-bit control of each element.

Update September 2021: You would THINK that this would be 24-bit (16,777,216 levels) illumination control of white. BUT, as pointed out by a helpful customer (A.B.), illumination of a 3-element white is still just 768 levels (as 255/0/0 offers same brightness as 0/255/0 or 0/0/255). Using the same argument, how many valid combinations are there?

If you assume 3/0/0 has the same illumination as 1/1/1, then it’s…768 levels? (Sorry, my binary is rusty). But light is a harsh mistress, and we cannot confirm that the illumination curve is indeed linear like this suggests. So it may be the case that 3/0/0 illumination offers a different lux than 1/1/1, in which case you would have 1/3 of 24-bit illumination, being only 5.527,125 levels.

When we get fresh inventory, we will try testing this theory out and report back to the page!

Specifications:

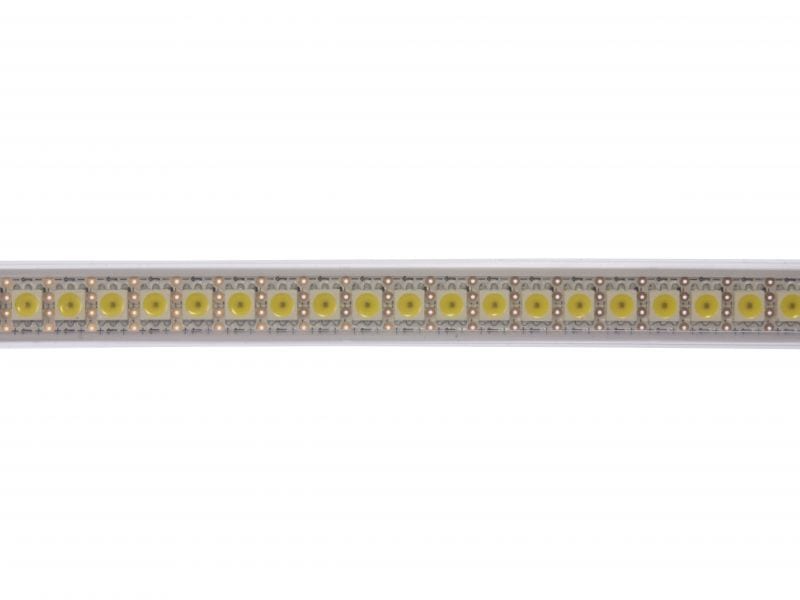

• APA102 Epistar 5050SMD LEDs (white/white/white), 140° viewing angle
• 24 (3*8bit) illumination control. Control that is. Actual illumination levels to be determined!
• 144 leds / M
• 5V
• 34.6W / M power consumption

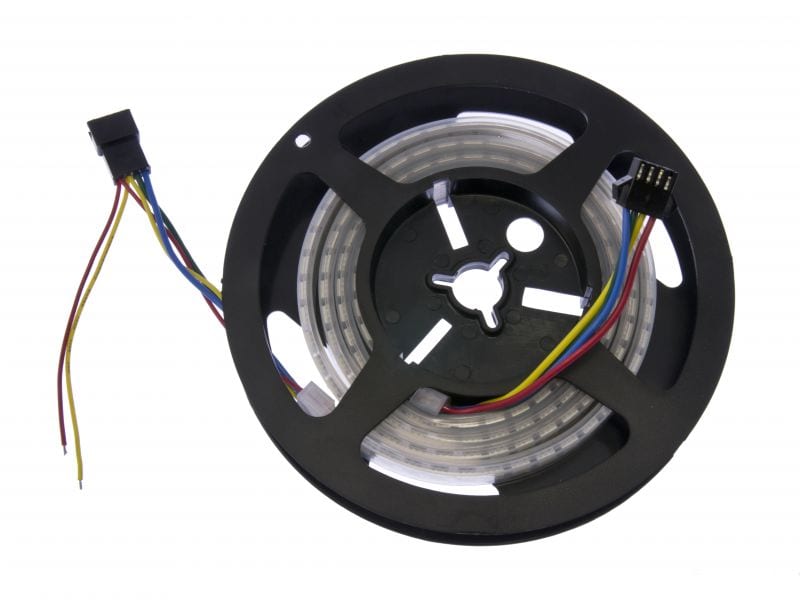

• 1M spools, complete with JST-SM Male/Female connectors and extra power injection wires
• 12mm wide, IP65 rated (silicone jacket)
• -30 to 50°C operating temperature rated
• APA wiring:
  • Red: 5V
  • Blue: Clock
  • Green: Data
  • Yellow: Ground

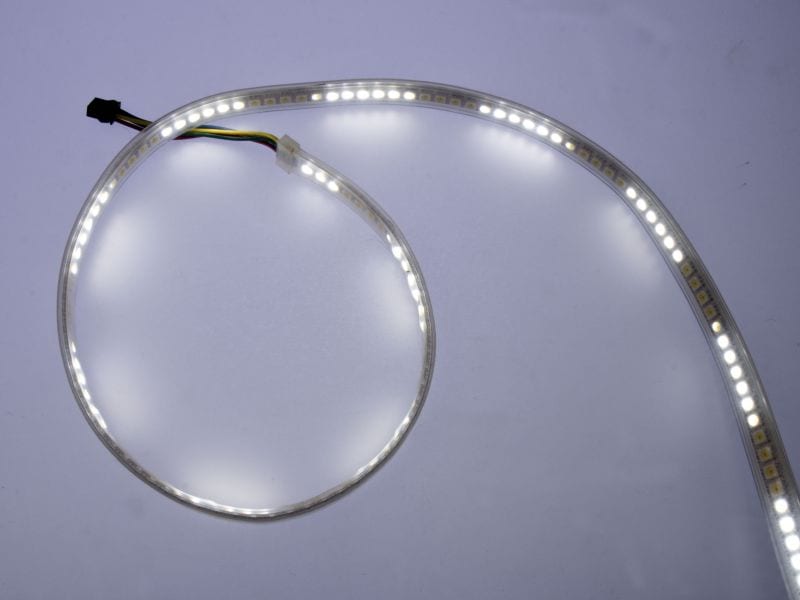

Note: Photos taken at 1/4 brightness. Brighter blows out the camera imager!

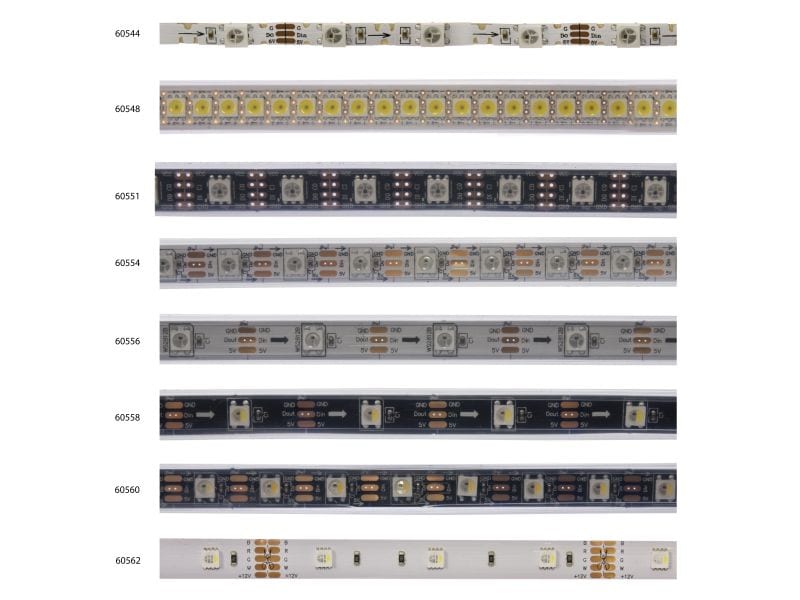

See other new LED strips that we carry:
