5V RGB Addressable LED Stripxel (60/M, WS2812B, White PCB) SKU: 60554
5V RGB Addressable LED Stripxel (60/M, WS2812B, White PCB)
$24.95 CAD
The venerable WS2812B is among the most used and well-supported addressable RGB strip LED. 60 LEDs per meter on white PCB, IP65 water resistant.
In stock
Description
WS2812B-based LED strips are a favourite among hackers. They are well supported, well proven, and a great performer.
These are sold by the meter
Specifications:

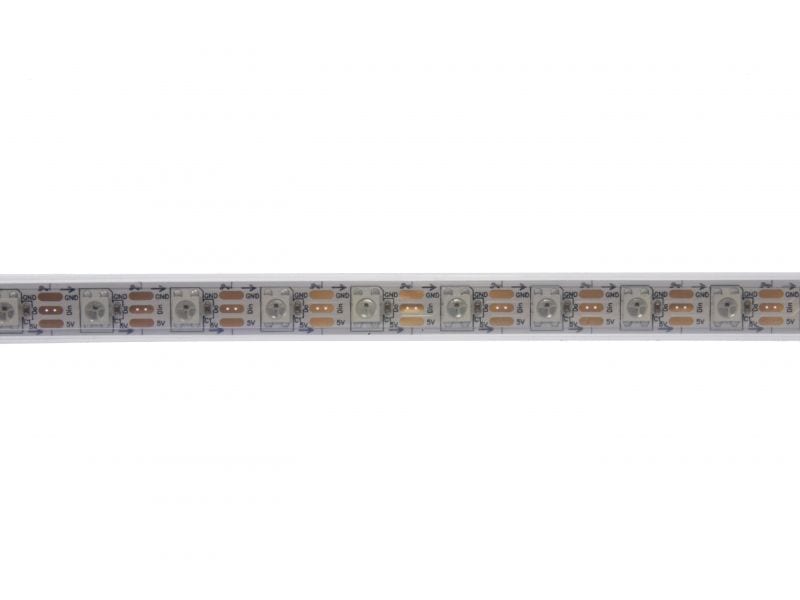

- WS2812B 5050SMD addressable RGB LEDs
- 5VDC
- 18W maximum power draw per meter at full white (3.6A @ 5V)
- 60 LEDs per meter (16.1mm spacing)
- 10mm wide PCB (white)

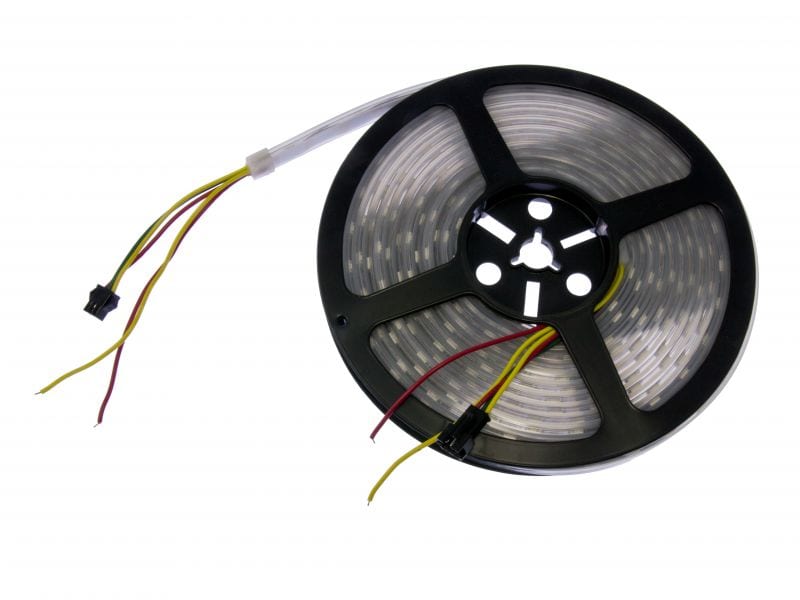

- 5 meters per roll comes complete with 3 pin JST SM male & female connectors with extra power-injection lines
- Connector pinout:
- Red – 5VDC aux power (+)
- Yellow – Common aux power (-)
- Blue – 5VDC (+)
- Green – Data
- Yellow – Common (-)
- Connector pinout:
- IP65 water resistant (silicone sleeve)
- -40 to 60°C operating temperature
These are sold by the meter! You may or may not get a power connector pre-soldered to the end of your strip. The only way to be sure is to order a full spool (5M length). A set of 3-wire connectors may be a good idea.

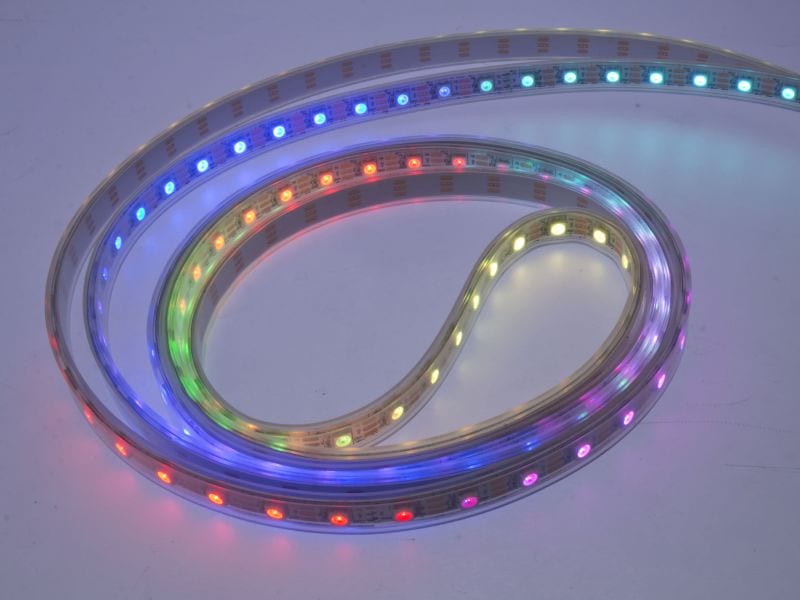

Note: Photos & video shot at 1/4 maximum brightness for best color rendition.

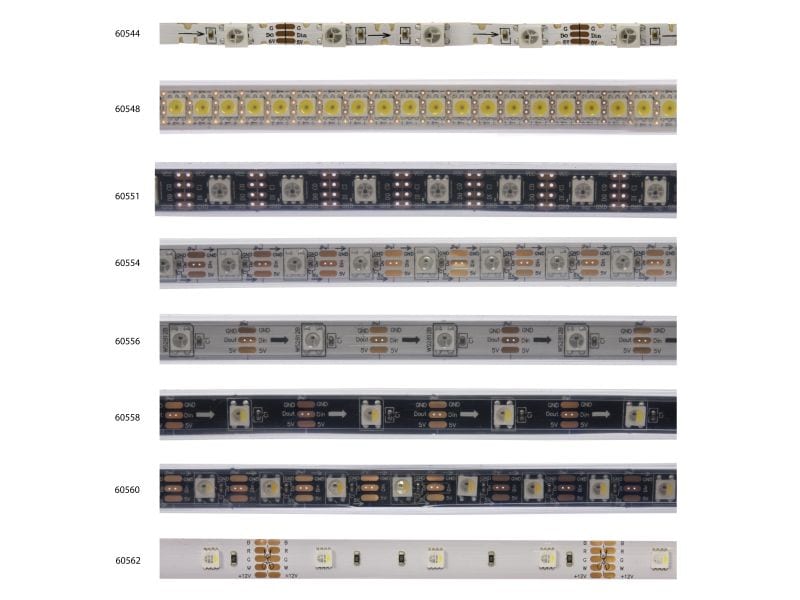

See other new LED strips that we carry:
SKU 60544 5V RGB Addressable Serpentine Stripxel (48/M, 2.5M spool)
SKU 60548 5V StripStar Addressable WHITE ONLY 144/M LED strip
SKU 60551 5V Addressable RGB Stripxel LEDs (60/M, APA102, Black PCB)
SKU 60554 5V RGB Addressable LED Stripxel (60/M, WS2812B, White PCB)
SKU 60556 Full Colour LED flexible strips WS2811/1903IC, waterproof
SKU 60558 Color LED strip, 30pcs LED SK6812RGBW IC/m, waterproof, IP65
SKU 60560 Full Colour LED strip, 60pcs LED &60pcs APA102C /m, waterproof, IP65
SKU 60562 RGBW LED flexible strips with IC, WS2811 IC/m Non-waterproof
More Info
Weight | 0.278 kg |
---|---|
Dimensions | 23 × 20 × 2 cm |
Type |
