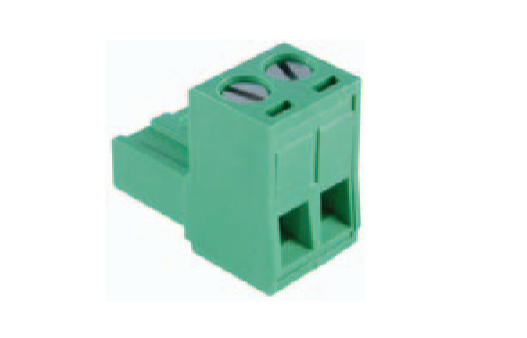

Terminal Block, 2 Pos'n PLUG - 5.08mm Pitch, 300V/15A, Phoenix

Terminal Block, 2 Pos’n PLUG – 5.08mm Pitch, 300V/15A, Phoenix

Available as in-store or call-to-order ONLY

In stock

$3.80 CAD
You save (%)

📞 Call to Order: (403) 232-6268

SKU: 701204 Categories: Board Connectors, Parts, Connectors Tag: Public

Description

Rated Voltage: 300V
Rated Current: 15A
Wire Range: −
Solid Wire (AWG): 28 − 12
Stranded Wire (AWG/mm²): 30 − 12
Rated Surge Voltage (UL/Max.): 1.6KV / 4KV
Torque (Lb−in): 4.5
Screw Type: 2.5
Wire Strip Length: .276 − .315″ (7 − 8mm)

Additional information

Availability	In Store Only

Manufacturer SKU	25-E1200-02
Supplier	NTE Electronics
