Description

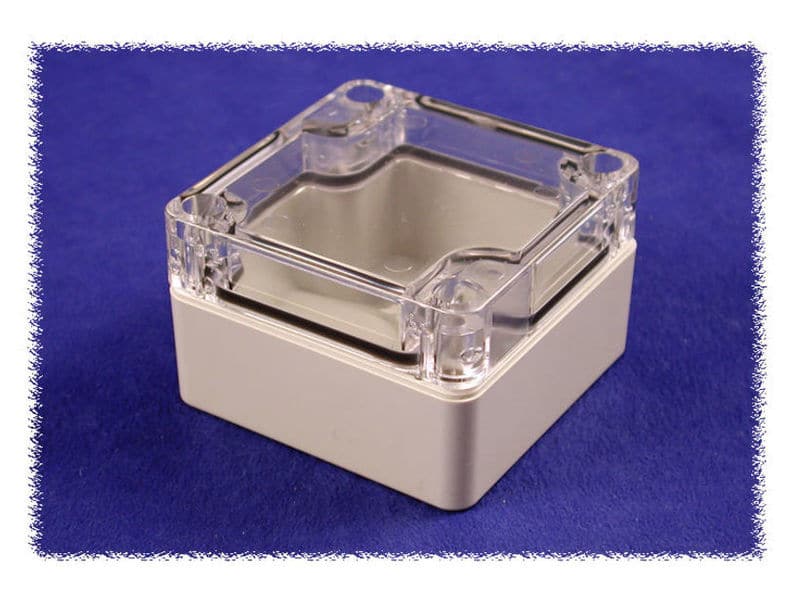

Hammond 1554B2GYCL
Features:

• Ideally suited for mounting printed circuit boards or DIN rail mounted components
• Polycarbonate is UV stabilized for outdoor use. Gray polycarb carries a UL94-5VA rating, while clear and smoked lids carry a UL94V-0 rating.
• Polycarbonate versions are cUL and UL 508A listed (File # E65324).
• Enclosure color is a light gray (RAL 7035).
• Gasketed lid with two-piece “tongue & groove” construction provides protection against access of oil, dust and water.
• Replaceable gasket is one piece made from high temperature, U.L. listed silicone. Supplied loose inside the enclosure (not pre-installed).
• Polycarb is designed to meet NEMA Type 4, 4X, 6, 6P, 12 & 13 ratings which meet and exceed IP ratings up to and including IP68. (Except 1554/55 V size which is 4,4X only)
• Lid is secured with included M4 stainless steel machine screws which are threaded into integral stainless steel bushings for repetitive assembly & disassembly. All hardware is stainless steel to avoid corrosion caused by dissimilar metals.
• Lid screws are self captivating (lid holes are threaded with the first installation of lid screws).
• Internal features are maximized for mounting options and vary with size:
  • Internal DIN rail mounting tabs molded into most models, except sizes “C” and “D”.
  • Threaded (M3) integral brass inserts and/or standoffs (#6 self tapping screws) for P.C. board or inner panel mounting in all but the smallest size (“B”).
  • Vertical P.C. card guides (for 1.5 mm thick P.C. boards) are molded in all but the smallest size (“B”).
