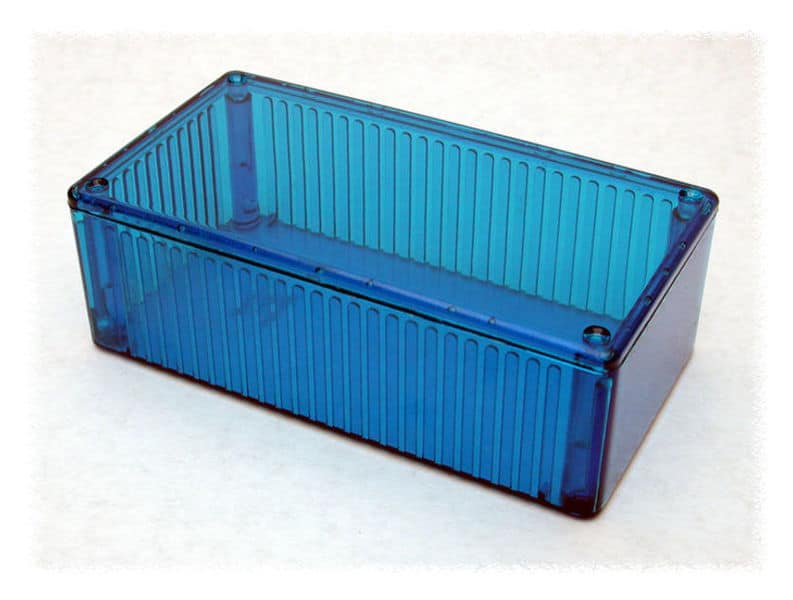

Polycarbonate Enclosure, General Purpose, Transparent Ice Blue – 150x81x46mm (5.9×3.2×1.8in)

1591DTBU – Suited for vertical mounting of printed circuit boards with molded side rails. Great for applications where parts, sensors, or indicators need to be visible.

$20.80 CAD
You save (%)

In stock

x

Description

Hammond 1591DTBU
Features:

  • Ideally suited for mounting printed circuit boards.
  • Perfect for applications where parts, sensors or indicators need to be visible.
  • Ice Blue version is almost totally transparent to blue, white and near white LEDs, readouts & displays.
  • Crystal Clear version is almost totally transparent.
  • Translucent Red version is almost totally transparent to infrared devices.
  • Integral card guides accept 1.5 mm (0.062”) P.C. cards.
  • Lap joint construction provides protection against access of dust and splashing water.
  • Designed to meet IP54.
  • Molded from flame retardant, easy to machine, translucent polycarbonate (material carries a UL flammability rating of 94V-0).
  • Lid is secured with M3 x 10 mm Phillips machine screws, threaded into integral brass bushings.

Additional information

Weight 0.139 kg
Dimensions 16.7 × 8.8 × 5 cm
Availability

Available Online

Color

IP Rating

Material

Type

Manufacturer SKU1591DTBU
SupplierHammond Manufacturing
UPC623980533131
