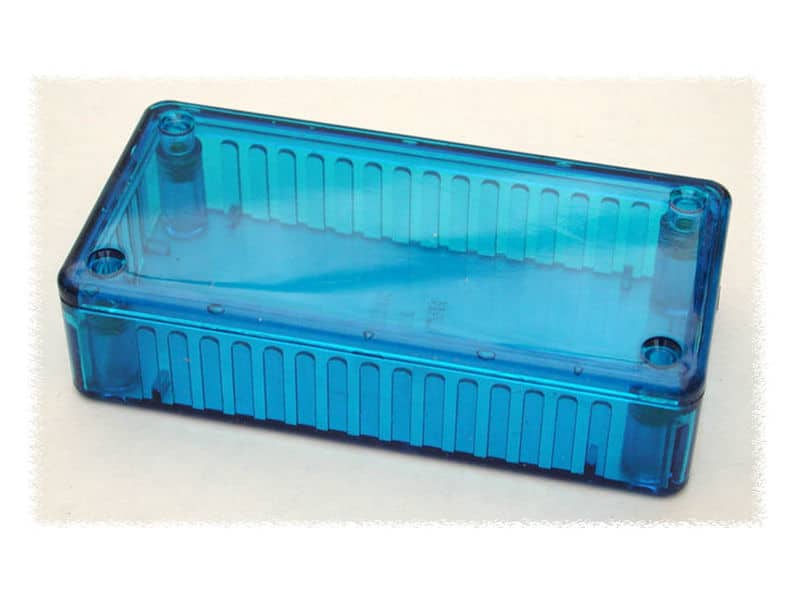

Polycarbonate Enclosure, General Purpose, Translucent Ice Blue - 99x51x20mm (3.9x2x0.8in) SKU: 137900
Polycarbonate Enclosure, General Purpose, Translucent Ice Blue – 99x51x20mm (3.9x2x0.8in)
$6.39 USD
1591ATBU – Suited for vertical mounting of printed circuit boards with molded side rails. Great for applications where parts, sensors, or indicators need to be visible.
In stock
Description
Hammond 1591ATBU
Features:
- Ideally suited for mounting printed circuit boards.
- Perfect for applications where parts, sensors or indicators need to be visible.
- Ice Blue version is almost totally transparent to blue, white and near white LEDs, readouts & displays.
- Crystal Clear version is almost totally transparent.
- Translucent Red version is almost totally transparent to infrared devices.
- Integral card guides accept 1.5 mm (0.062”) P.C. cards.
- Lap joint construction provides protection against access of dust and splashing water.
- Designed to meet IP54.
- Molded from flame retardant, easy to machine, translucent polycarbonate (material carries a UL flammability rating of 94V-0).
- Lid is secured with M3 x 10 mm Phillips machine screws, threaded into integral brass bushings.
More Info
Weight | 0.051 kg |
---|---|
Dimensions | 5.30 × 10.50 × 3 cm |
Material | |
Color | |
IP Rating | |
Type |
