Description

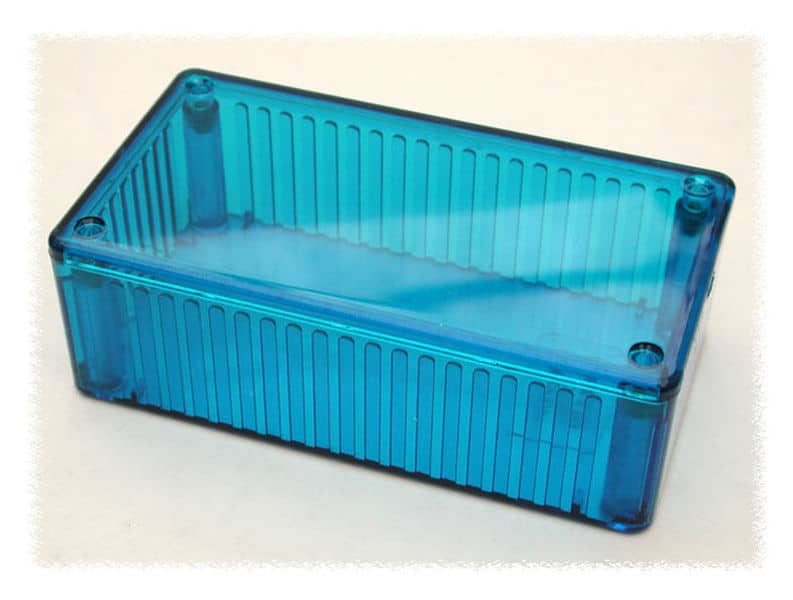

Hammond 1591CTBU
Features:

• Ideally suited for mounting printed circuit boards.
• Perfect for applications where parts, sensors or indicators need to be visible.
• Ice Blue version is almost totally transparent to blue, white and near white LEDs, readouts & displays.
• Crystal Clear version is almost totally transparent.
• Translucent Red version is almost totally transparent to infrared devices.
• Integral card guides accept 1.5 mm (0.062”) P.C. cards.
• Lap joint construction provides protection against access of dust and splashing water.
• Designed to meet IP54.
• Molded from flame retardant, easy to machine, translucent polycarbonate (material carries a UL flammability rating of 94V-0).
• Lid is secured with M3 x 10 mm Phillips machine screws, threaded into integral brass bushings.
