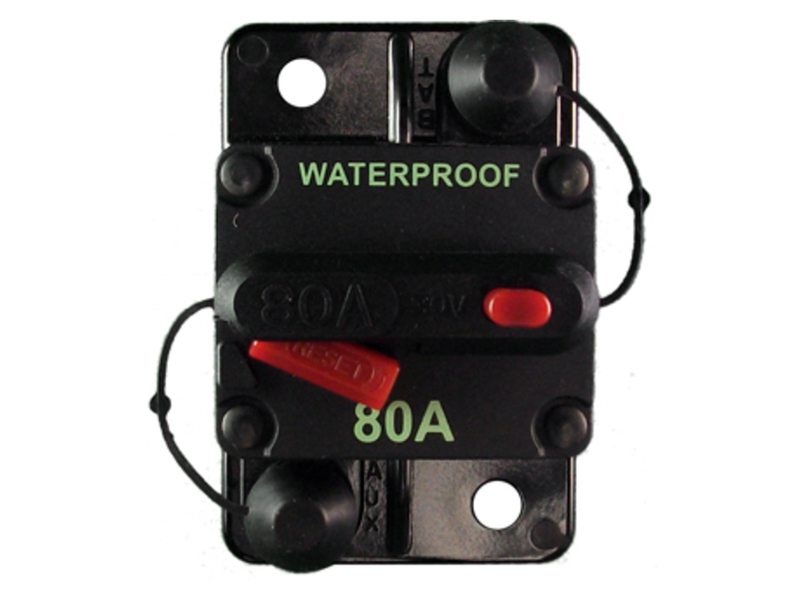

Circuit breaker will remain tripped (in the off position) until the lever is manually reset. Panel or surface mount. Typically used in auxilliary and accessory circuits-trucks, buses, RV’s and marine applications. Others might include battery chargers and DC audio systems.

Specifications:

• Amp    80A
• Colour    Black
• Flammability Rating    UL94-V0 (Housing)
• Interrupt Rating    3000A @ 30V DC
• Material    Thermoset Plastic
• SAE Standard    J1625
• Temperature Rating °C    Operating: -32 to 82
• Storage: -34 to 149
• Temperature Rating °F    Operating: -25 to 180
• Storage: -29 to 300
• Voltage    32V DC
