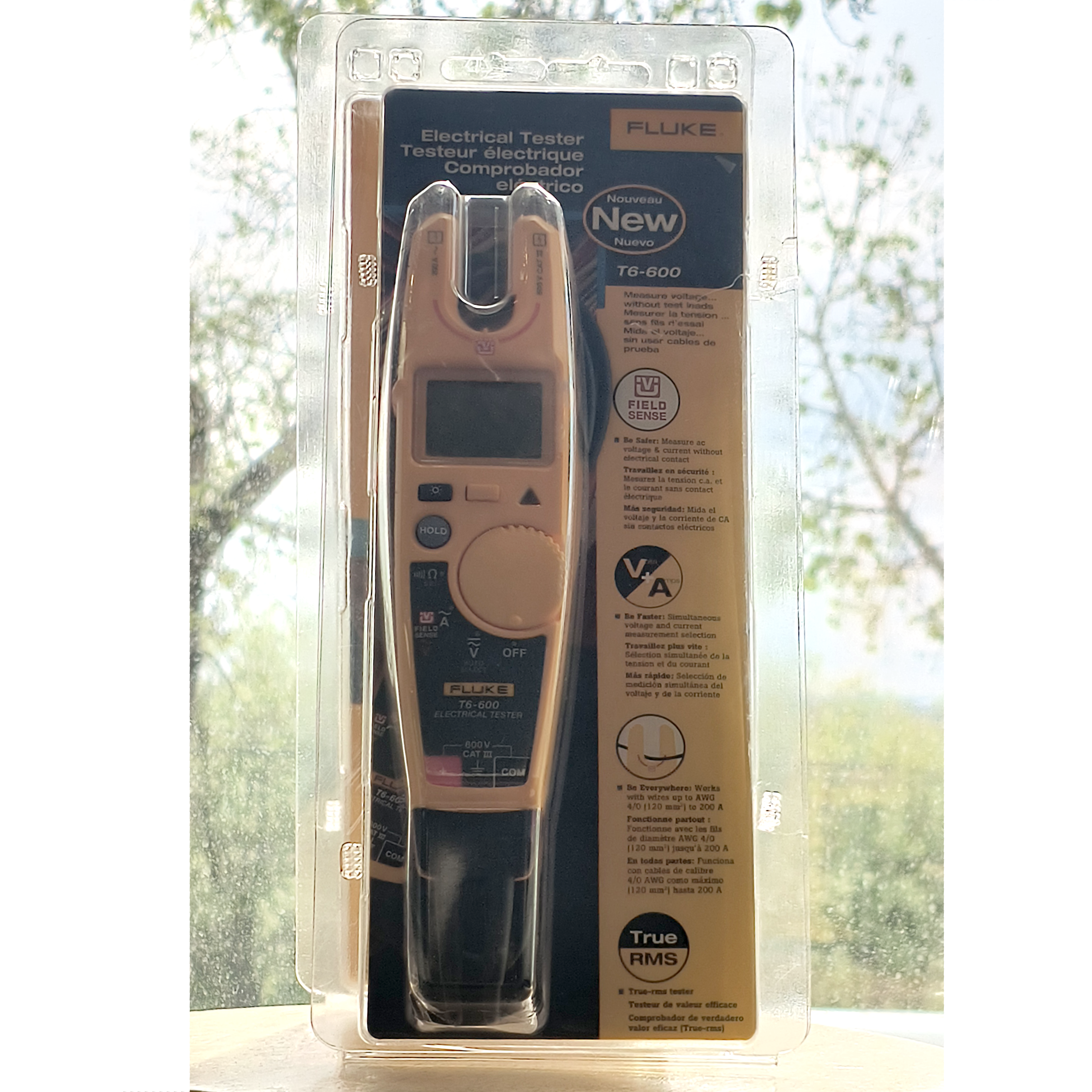

Fluke T6-600 Electrical Tester Fork Meter, 600V/200A

The Fluke T6-600 Electrical Tester – compact and capable in a clamp-less forked design making it ideal for tight situations.

Available as in-store or call-to-order ONLY

In stock

Original price was: $339.00.Current price is: $299.00. CAD
You save (%)

Description

Unlike other clamp meters, this Fluke T6-600 doesn’t have a clamp – it’s a fork using Fluke’s “FieldSense” technology, making it much more convenient for wiggling into tight spaces.

With this technology, the T6-600 is able to non-invasively measure AC current, Voltage and frequency without touching live AC wires.

With a maximum rating of 600V & 200A, it’s a capable unit.

T6-600
Fluke Electrical Tester — Specifications
Function Requires Test Leads Range Resolution Accuracy[1]

FieldSense AC Voltage true-rms
No 600 V 1 V ±(3% + 3 counts)
45 Hz to 66 Hz[2][3]

FieldSense AC Current true-rms
No 200.0 A 0.1 A ±(3% + 3 counts)
45 Hz to 66 Hz

FieldSense Frequency (Hz)
No 45 Hz to 66 Hz 1 Hz ±(1% + 2 counts)[3]
Volts AC true-rms Yes 600 V 1 V ±(1.5% + 2 counts)
45 Hz to 66 Hz
Volts DC Yes 600 V 1 V ±(1% + 2 counts)
Resistance Yes 2000 Ω 1 Ω ±(1% + 2 counts)
Yes 20.00 kΩ 0.01 kΩ
Yes 100.0 kΩ 0.1 kΩ
[1] Accuracy: ±( [ % of reading] + [number of least significant digits] ). Accuracy is specified for 1 year after calibration, at 18 °C to 28 °C (64 °F to 82 °F) with relative humidity to 90 %. AC measurements are ac coupled, RMS responding.
[2] Add 3 % typical without an external ground connection. External ground connection required for user wearing insulated gloves,
standing on an insulated ladder, or otherwise insulated from earth ground.
[3] FieldSense is specified from 16 V to 100 % of range.

Additional information

Availability

In Store Only

Manufacturer

Manufacturer SKUT6-600
SupplierFLUKE CANADA
RESOURCES & DOWNLOADS
