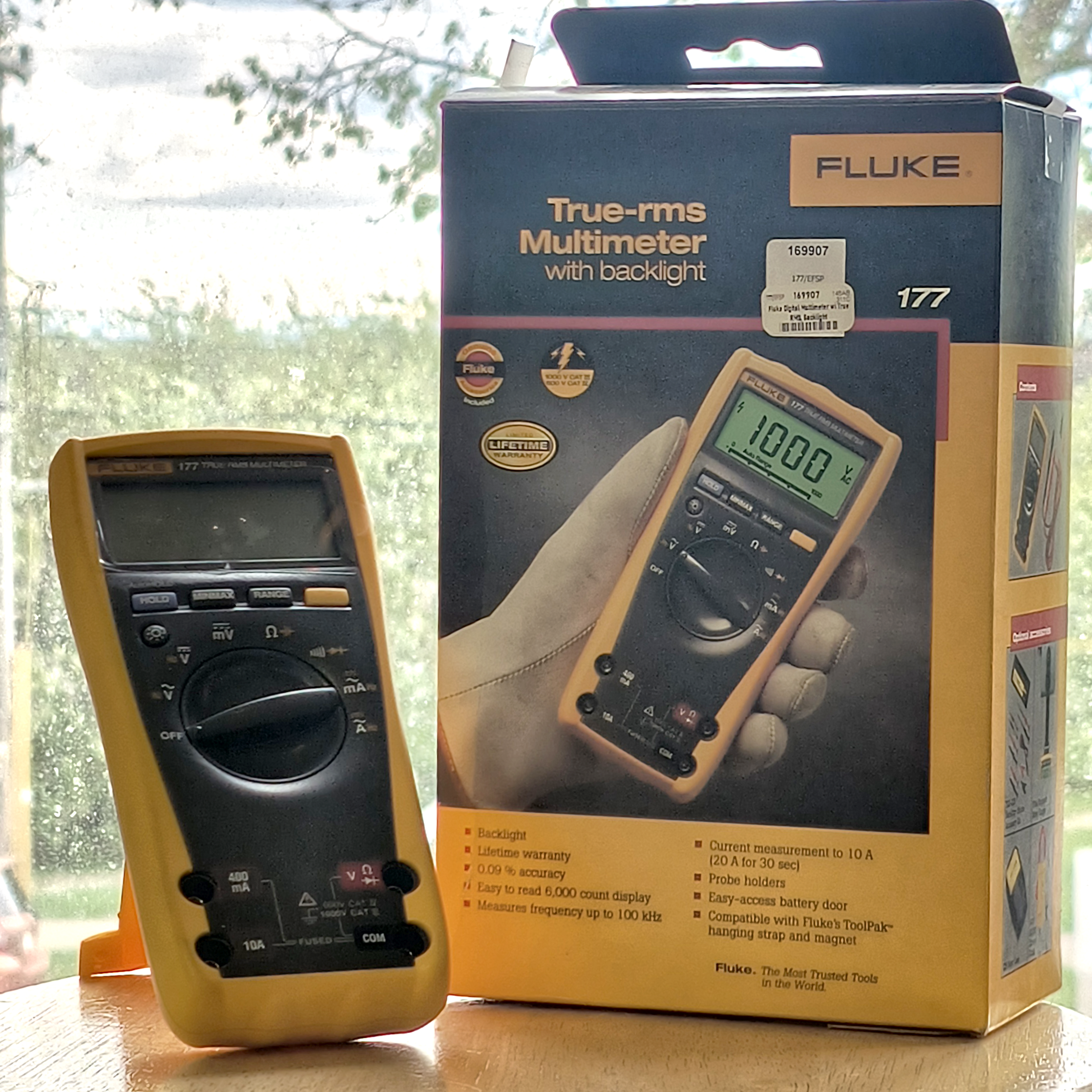

Fluke 177/ESFP Electrician's Digital Multimeter wi True RMS, Backlight

Fluke 177/ESFP Electrician’s Digital Multimeter wi True RMS, Backlight

Available as in-store or call-to-order ONLY

In stock

Original price was: $670.59.Current price is: $546.88. CAD
You save (%)

📞 Call to Order: (403) 232-6268
SKU: 169907 Categories: , , Tag:

Description

The Fluke 177/ESFP is a member of the venerable 11x Fluke multimeter family, with a well-rounded set of capabilities.

Features

  • True Professional-grade RMS digital multimeter
  • Standard AC current and voltage plus frequency, capacitance, resistance, continuity and diode measurements
  • Manual and automatic ranging, with display Hold, auto Hold, and Min/Max-average recording
  • 1000 V AC & DC capable
  • Safety rated CAT III 1000 V, CAT IV 600 V
  • Features digital display with backlight for working in dim lighting
Fluke 177
True RMS Digital Multimeter — Specifications

Accuracy Specifications

Function Parameter Value
Voltage DC Accuracy ±(0.09% + 2)
Maximum Resolution 0.1 mV
Maximum 1000 V
Voltage AC Accuracy ±(1.0% + 3)
Maximum Resolution 0.1 mV
Maximum 1000 V
Current DC Accuracy ±(1.0% + 3)
Maximum Resolution 0.01 mA
Maximum 10 A
Current AC Accuracy ±(1.5% + 3)
Maximum Resolution 0.01 mA
Maximum 10 A
Resistance Accuracy ±(0.9% + 1)
Maximum Resolution 0.1 Ω
Maximum 50 MΩ
Capacitance Accuracy ±(1.2% + 2)
Maximum Resolution 1 nF
Maximum 10,000 µF
Frequency Accuracy ±(0.1% + 1)
Maximum Resolution 0.01 Hz
Maximum 100 kHz

Environmental Specifications
Operating Temperature 14 to 122°F (-10 to 50°C)
Storage Temperature -22 to 140°F (-30 to 60°C)
Humidity (Without Condensation) 0 to 90% at 32 to 95°F (0 to 35°C)
0 to 70% at 95 to 122°F (35 to 50°C)

Safety Specifications
Overvoltage Category EN 61010–1 to 1000 V CAT III
EN 61010–1 to 600 V CAT IV
Agency Approvals UL, CSA, TÜV listed and VDE Pending

General Specifications
Battery Life Alkaline approximately 200 hours typical, without backlight
Dimensions 1.7 x 3.5 x 7.3″ (43 x 90 x 185 mm)
Weight 14.8 oz (420 g)

Additional information

Weight 0.68889 kg
Dimensions 17.4 × 31.9 × 9.4 cm
Availability

In Store Only
Manufacturer

Manufacturer SKU177/ESFP
SupplierFLUKE CANADA
