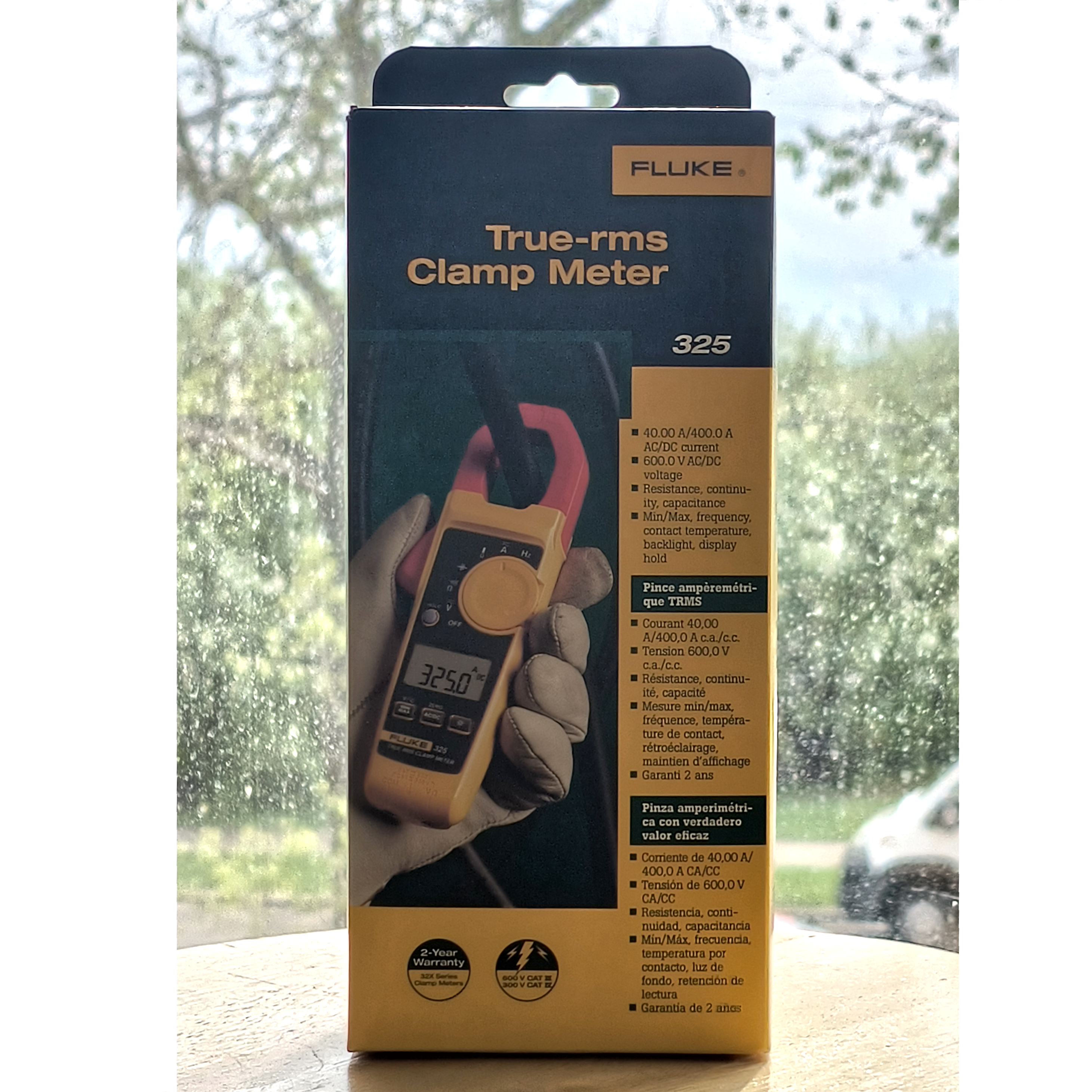

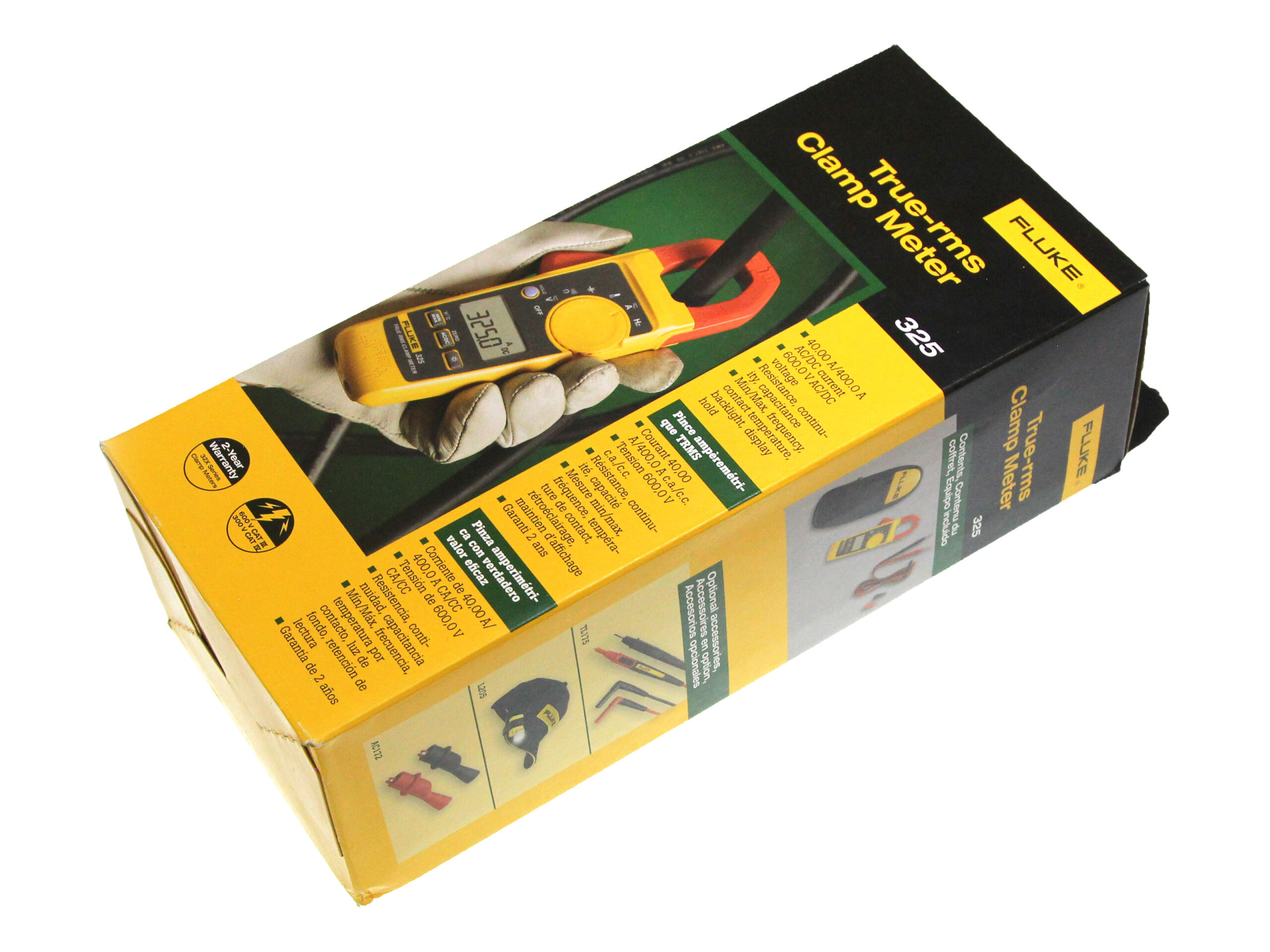

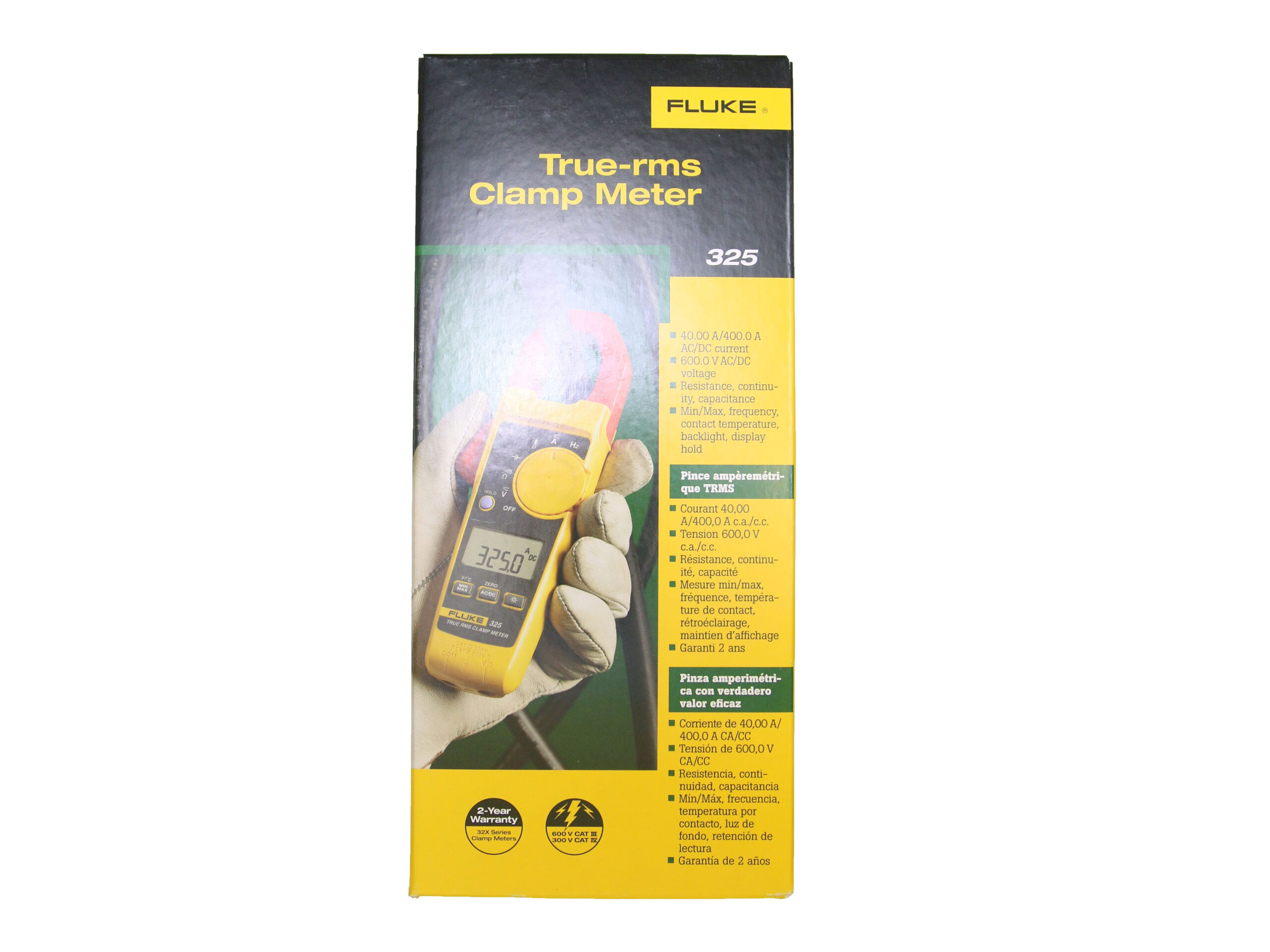

The fluke 325 Clamp Meter is a very solid non-invasive Voltage and Current measuring Tool. Never use a clamp meter before? WOW, so handy to isolate one live wire leg to see what power is moving through it!
In stock
Original price was: $613.89.$499.88Current price is: $499.88. CAD
You save (%)
The fluke 325 Clamp Meter is a very solid non-invasive Voltage and Current measuring Tool. Never use a clamp meter before? WOW, so handy to isolate one live wire leg to see what power is moving through it!
The Fluke 325 has a strong combination of measurement functions featuring True-RMS AC voltage and current measurements on non-linear signals. Paired with the CAT III 600 V, CAT IV 300 V safety rating the clamp meter can also measure:
| Function | Parameter | Value |
|---|---|---|
| AC Current | Range | 40.00 A / 400.0 A |
| Accuracy | 2% ± 5 digits (45 Hz to 65 Hz) 2.5% ± 5 digits (65 Hz to 400 Hz) |
|
| DC Current | Range | 40.00 A / 400.0 A |
| Accuracy | 2% ± 5 digits | |
| AC Voltage | Range | 600.0 V |
| Accuracy | 1.5% ± 5 digits | |
| DC Voltage | Range | 600.0 V |
| Accuracy | 1.0% ± 5 digits | |
| Resistance | Range | 400.0 Ω / 4000 Ω / 40.00 kΩ |
| Accuracy | 1.0% ± 5 digits |
| Continuity | ≤ 30 Ω |
| Capacitance | 0 to 100.0 µF / 100 µF to 1000 µF |
| Frequency | 5.0 Hz to 500.0 Hz |
| AC Response | True-RMS |
| Backlight | Yes |
| Data Hold | Yes |
| Contact Temperature | -10.0°C to 400.0°C (14.0°F to 752.0°F) |
| Min/Max | Yes |
| Size | H × W × D | 207 × 75 × 34 mm |
| Max Wire Diameter | 30 mm (600 MCM) | |
| Weight | 283 g | |
| Category Rating | CAT III 600 V / CAT IV 300 V | |
| Warranty | Two-year | |
| Weight | 0.605 kg |
|---|---|
| Dimensions | 12.1 × 29.1 × 7.9 cm |
| Availability | In Store Only |
| Manufacturer |
| Manufacturer SKU | 325 |
|---|---|
| Supplier | FLUKE CANADA |
