Fluke 117/323 Electrician's Digital Multimeter and Clampmeter Kit
Fluke 117/323 Electrician's Digital Multimeter and Clampmeter Kit - Image 2

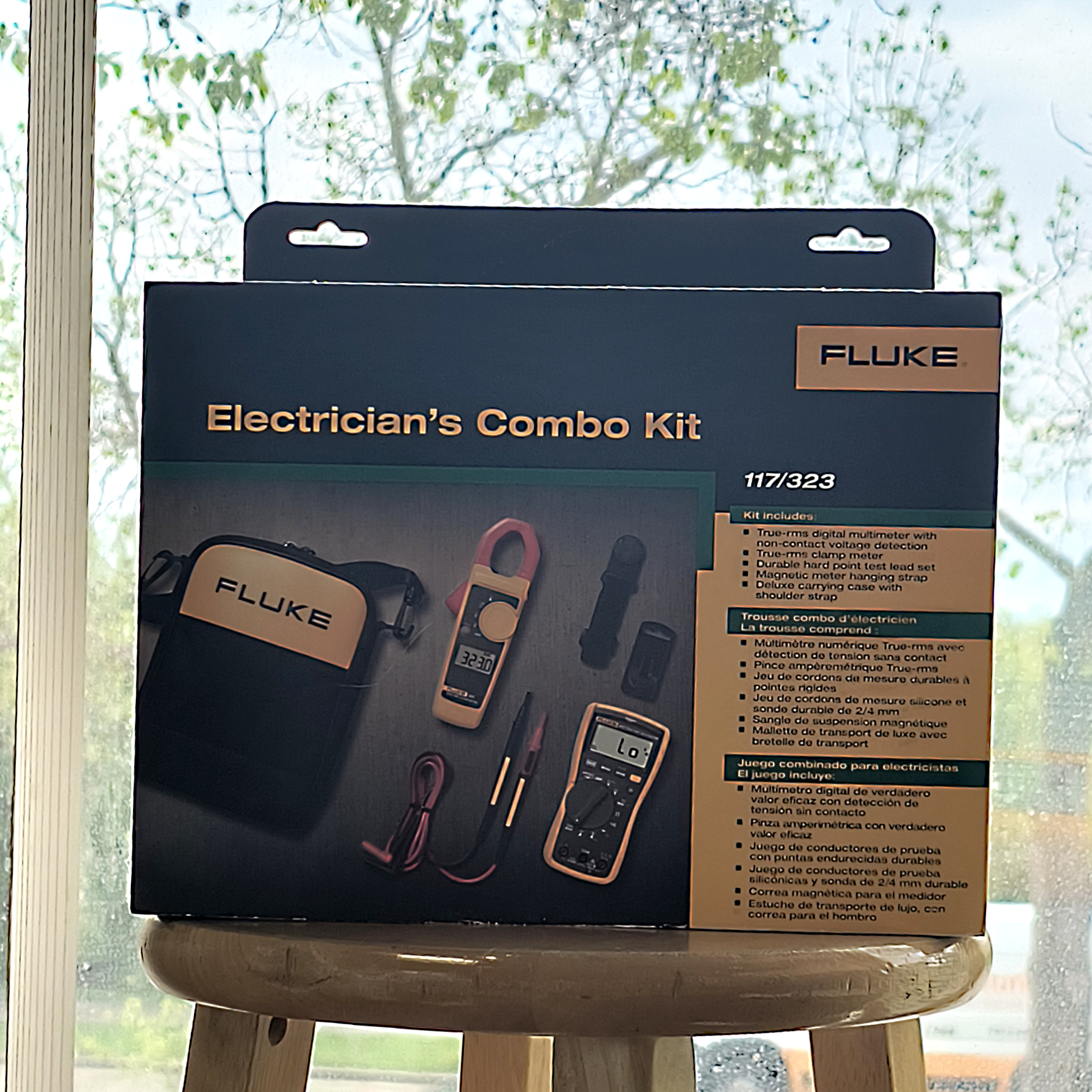

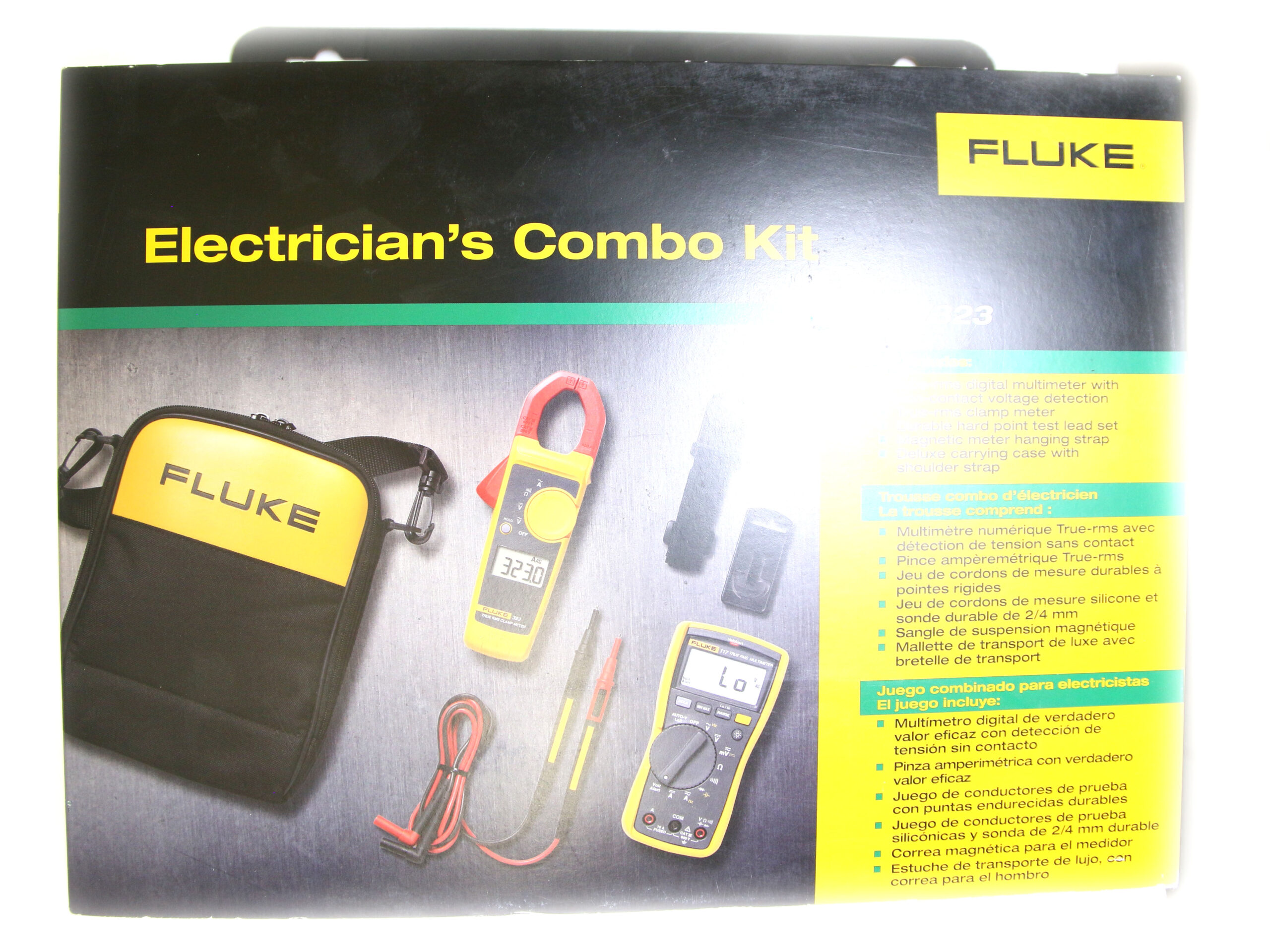

Fluke 117/323 Electrician’s Digital Multimeter and Clampmeter Kit

Here’s a convenient Fluke work-pack: The 323 clampmeter and 117 Multimeter, complete with accessories and carrying pouch

Available as in-store or call-to-order ONLY

In stock

Original price was: $660.00.Current price is: $538.88. CAD

📞 Call to Order: (403) 232-6268
SKU: 171907 Categories: , , Tag:

Description

Get the very useful Fluke 117 and the 323 clampmeter with a convenient pouch and hanger kit!

Fluke 117
Electrician’s Multimeter — Specifications

Accuracy Specifications

Measurement Range Resolution Accuracy
DC Millivolts 600.0 mV 0.1 mV ±0.5% of reading + 2 counts
DC Volts 6.000 V
60.00 V
600.0 V		 0.001 V
0.01 V
0.1 V		 ±0.5% of reading + 2 counts
Auto Volts 600 mV 0.1 mV 2% + 3 (dc, 45 to 500 Hz)
4% + 3 (500 Hz to 1 kHz)
AC Millivolts True RMS 600.0 mV 0.1 mV 45 to 500 Hz: ±1.0% of reading + 3 counts
500 Hz to 1 kHz: ±2.0% of reading + 3 counts
AC Volts True RMS 6.000 V
60.00 V
600.0 V		 0.001 V
0.01 V
0.1 V		 45 to 500 Hz: ±1.0% of reading + 3 counts
500 Hz to 1 kHz: ±2.0% of reading + 3 counts
Continuity 600 Ω 1 Ω Beeper on <20 Ω, off >250 Ω; detects opens or shorts of 500 µs or longer
Ohms 600 Ω
6 kΩ
60 kΩ
600 kΩ
6 MΩ
40 MΩ		 0.1 Ω
0.001 kΩ
0.01 kΩ
0.1 kΩ
0.001 MΩ
0.01 MΩ		 0.9% + 1
Diode Test 2 V 0.001 V 0.9% + 2
Capacitance 1000 nF
10 µF
100 µF
9999 µF
100 to 1000 µF		 1 nF
0.01 µF
0.1 µF
1 µF
—		 1.9% + 2

1.9% + 2
>1000 µF — 5% + 20
Lo-Z Capacitance 1 nF to 500 µF — 10% + 2 typical
AC Amps True RMS
(45 to 500 Hz)		 6.000 A
10.00 A
20 A overload for 30 seconds maximum		 0.001 A
0.01 A
—		 ±1.5% of reading + 3 counts
DC Amps 6.000 A
10.00 A
20 A overload for 30 seconds maximum		 0.001 A
0.01 A
—		 ±1.0% of readings + 3 counts
Hz (V or A input) 99.99 Hz
999.9 Hz
9.999 kHz
50.00 kHz		 0.01 Hz
0.1 Hz
0.001 kHz
0.01 kHz		 ±0.1% of readings + 2 counts

General Specifications
Maximum Voltage Between Any Terminal and Earth Ground 600 V
Surge Protection 6 kV peak per IEC 61010-1 600 V CAT III, Pollution Degree 2
Fuse for A Input 11 A, 1000 V FAST Fuse
Display Digital: 6000 counts, updates 4/sec
Bar Graph 33 segments, updates 32/sec
Temperature Operating: 14 to 122 °F (−10 to 50 °C)
Storage: −40 to 140 °F (−40 to 60 °C)
Battery Type: 9 V alkaline, NEDA 1604A / IEC 6LR61
Life: 400 hours typical, without backlight
Dimensions 6.57 x 3.31 x 1.82″ (167 x 84 x 46 mm)
Weight 19.4 oz (550 g)

Fluke 323
True RMS Clamp Meter

Delivers rugged and reliable performance and includes True RMS measurements, optimized ergonomics, and large display which makes it ideal for troubleshooting. This clamp meter is part of the 320 series and is built to perform in the toughest environments, and provides you with noise-free and reliable results. Its slim, compact size and rugged design makes it well suited for measuring currents up to 400 A in tight cable compartments. Use it to verify the presence of load current, AC voltage, continuity of circuits, switches, fuses, and contacts.

Features
  • Rugged, reliable basic True-RMS clamp meter for measuring current up to 400 A
  • Measures AC current to 400 A
  • Measures AC voltage and DC voltage to 600 V
  • Provides True RMS AC voltage and current for accurate measurements on non-linear signals
  • Measures resistance to 4 kΩ with continuity detection
  • Slim, ergonomic design for measuring in tight cable compartments
  • Presents measurements on a large, easy-to-read display
  • Hold function captures a reading on the display
  • CAT III 600 V, CAT IV 300 V safety rating
Applications
  • Electrical
  • Commercial
  • Residential
  • Plant maintenance
  • HVAC/R

Fluke TL175
TwistGuard Test Leads Set
Features
  • Patented TwistGuard™ extendable tip
  • WearGuard™ lead wire wear indication
  • Double insulated silicone leads
  • Extra-heavy duty strain relief on both probe-end and plug-end
  • Ratings: CAT II 1000 V, CAT III 1000 V, CAT IV 600 V, 10 A max., Pollution Degree 2
  • Conforms to EN61010-031

Fluke TPAK
ToolPak Magnetic Meter Hanger
Features
  • Powerful magnetic hanger allows you to hang your meter on any metallic surfaces
  • 9″ (228.6 mm) hook and loop strap allows you to loop around pipes
  • Hook hanger for hanging on non-magnetic surfaces
  • General purpose hanger allows you to hang your meter on nails, hooks and many other objects

Additional information

Weight 0.68889 kg
Dimensions 17.4 × 31.9 × 9.4 cm
Availability

In Store Only
Manufacturer

Manufacturer SKUFLK-117-323 KIT
SupplierFLUKE CANADA
