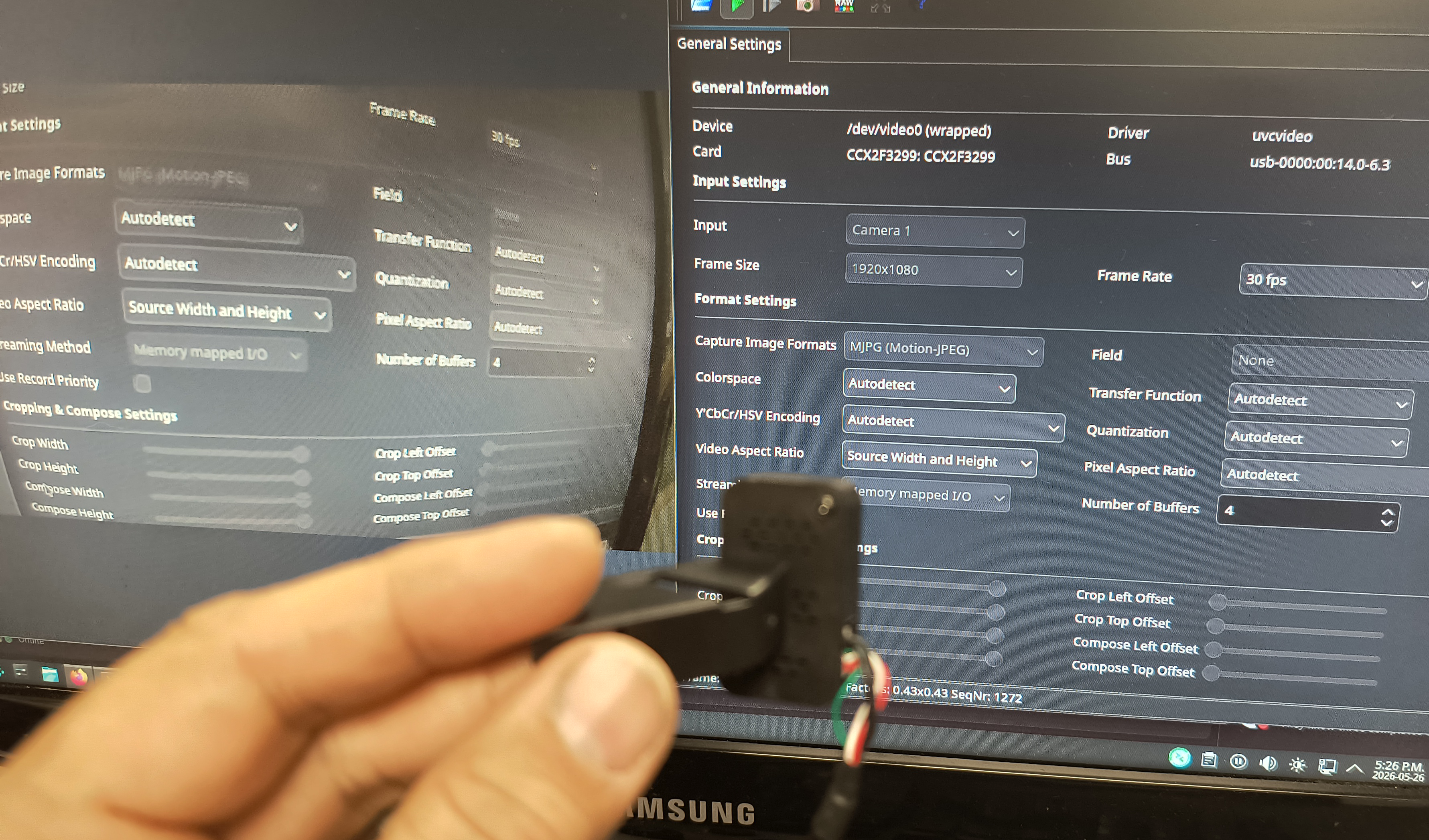

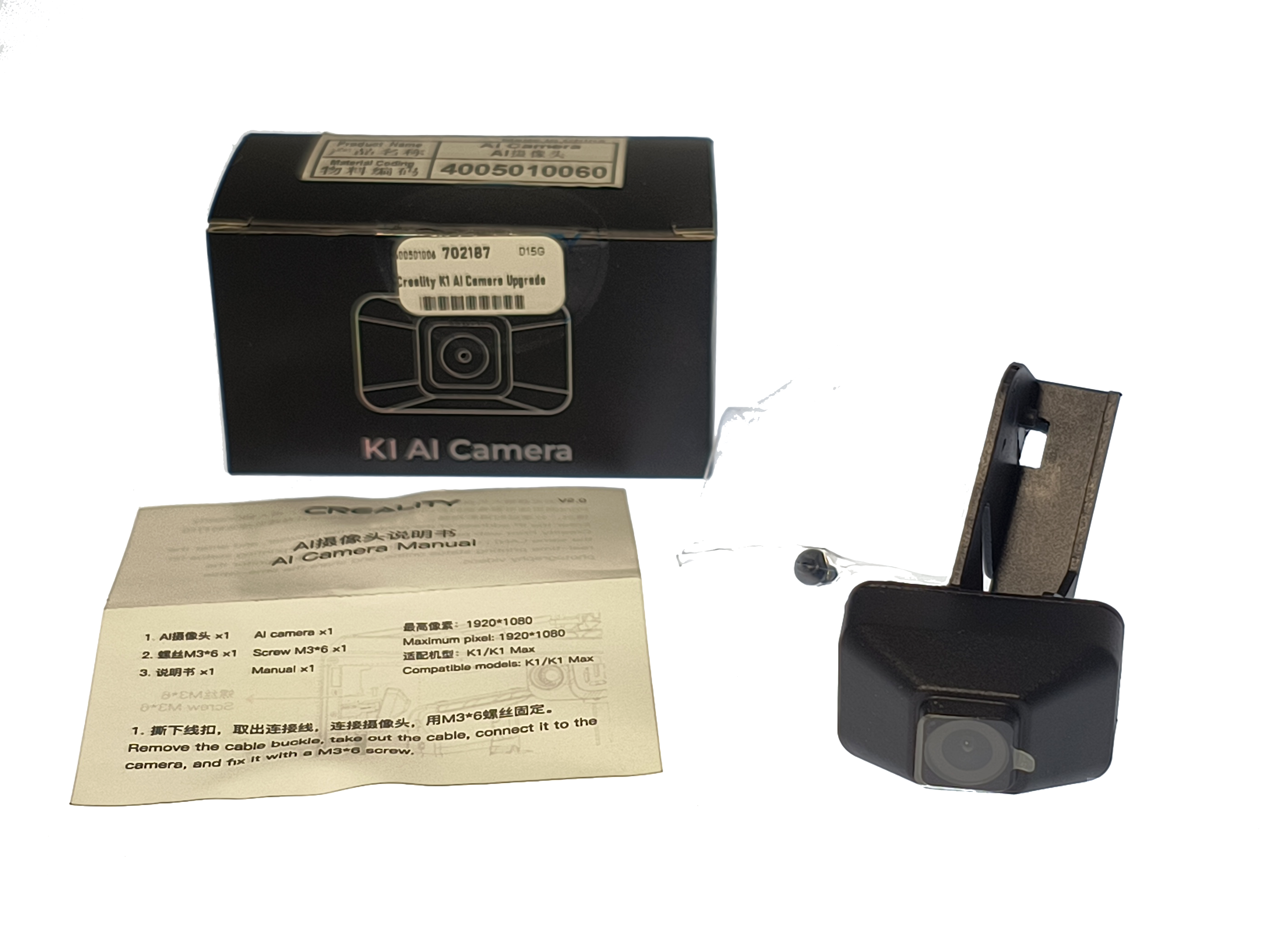

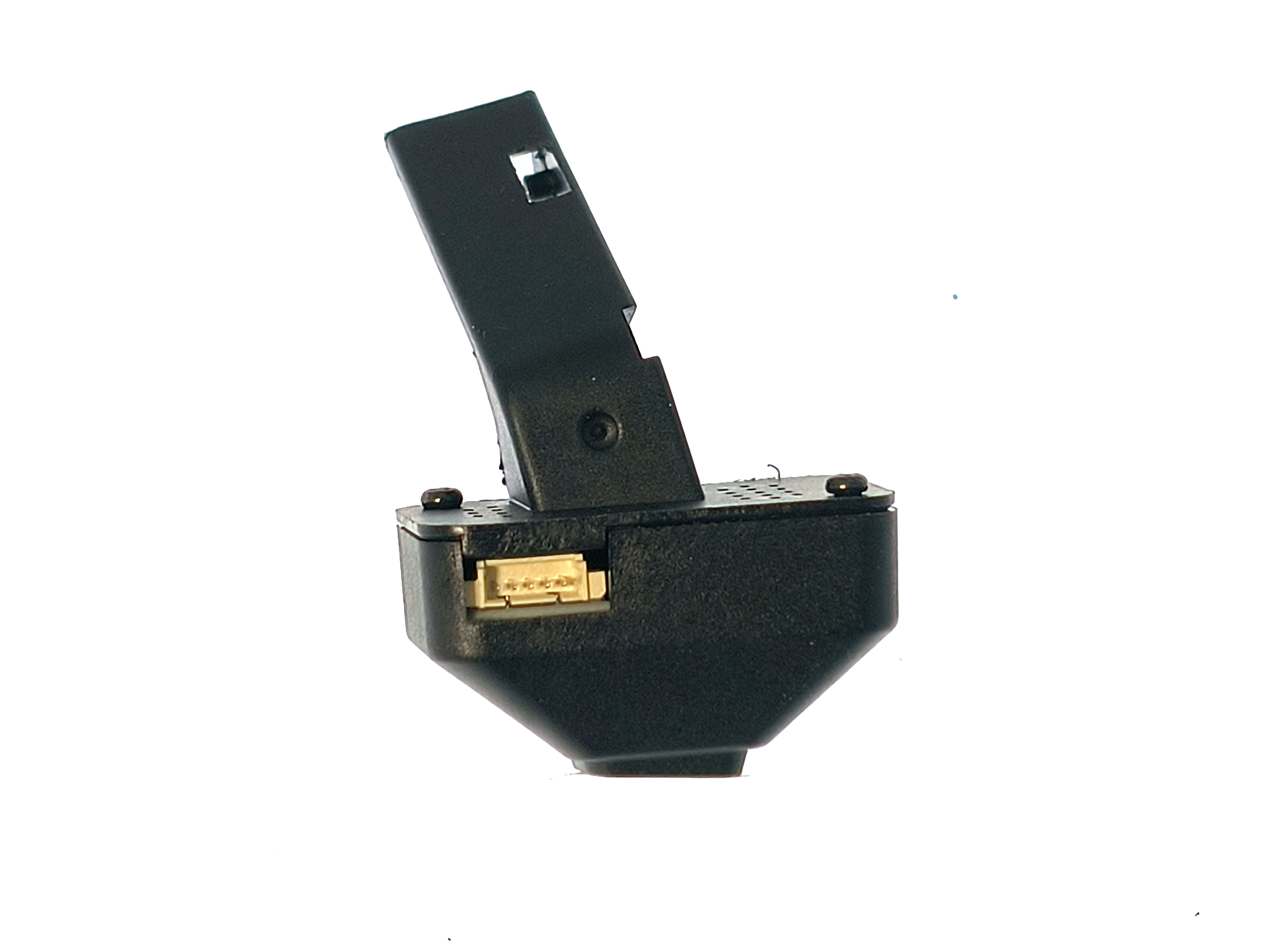

For the price of $20 and a broken USB cable, build yourself a decent little webcam! Or if you have a Creality K-series 3D printer lacking the monitoring camera? Here’s your chance to take advantage of our overstock in the K1/K1 Max AI Camera. It’s really a USB camera with a microblade pinout, which is not impossible to connect to a regular USB cable (we imagine you’re like us and have a bag full of dead USB cables you could apply to this project). We’ve succesfully retrofit one ourselves (and burned up 2 more).

You can dismantle it to de-gum the lens thread-focus mechanism for more precise focus adjustment.

• 1920×1080 resolution

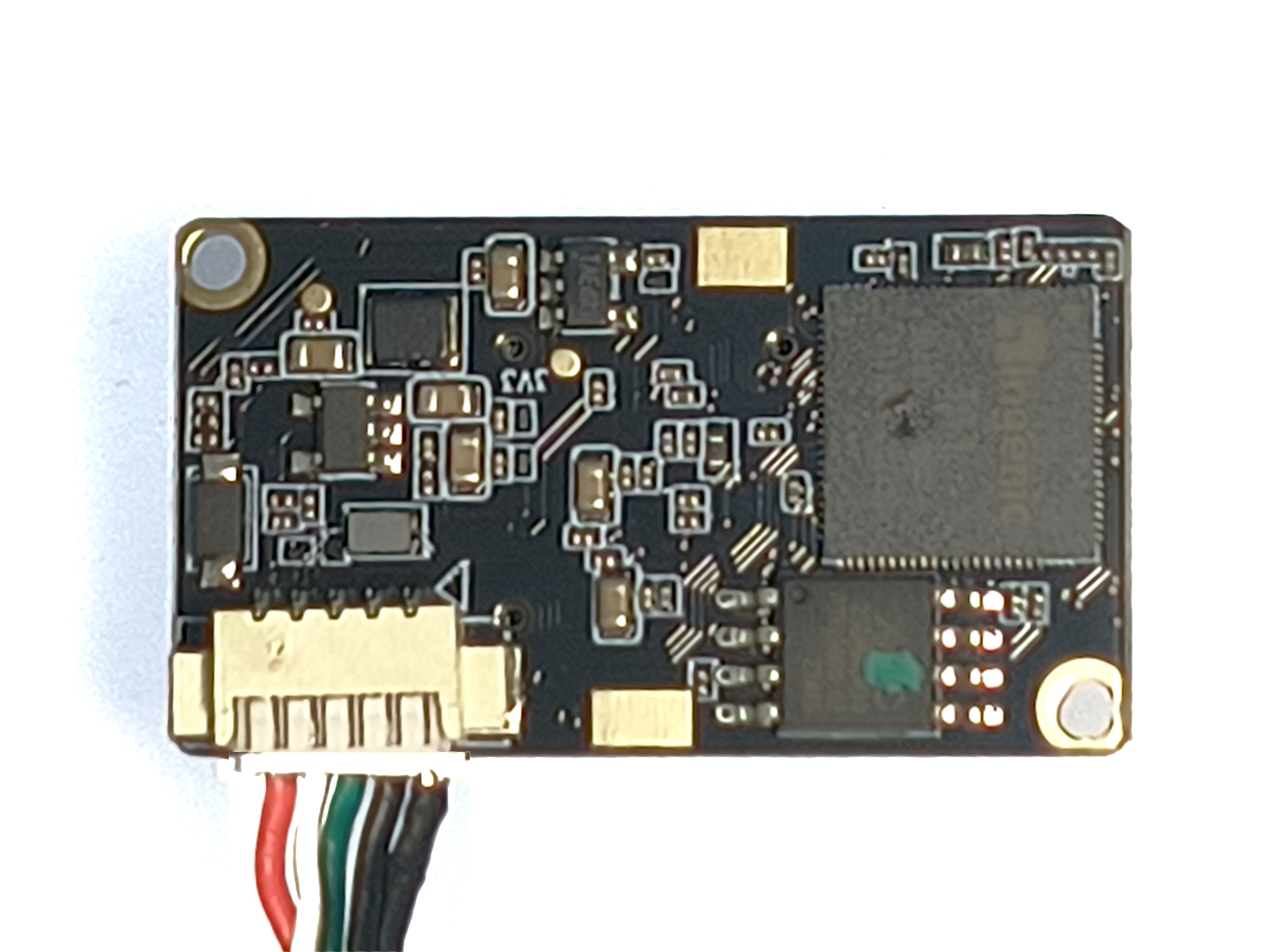

• Ingenic T31 chipset

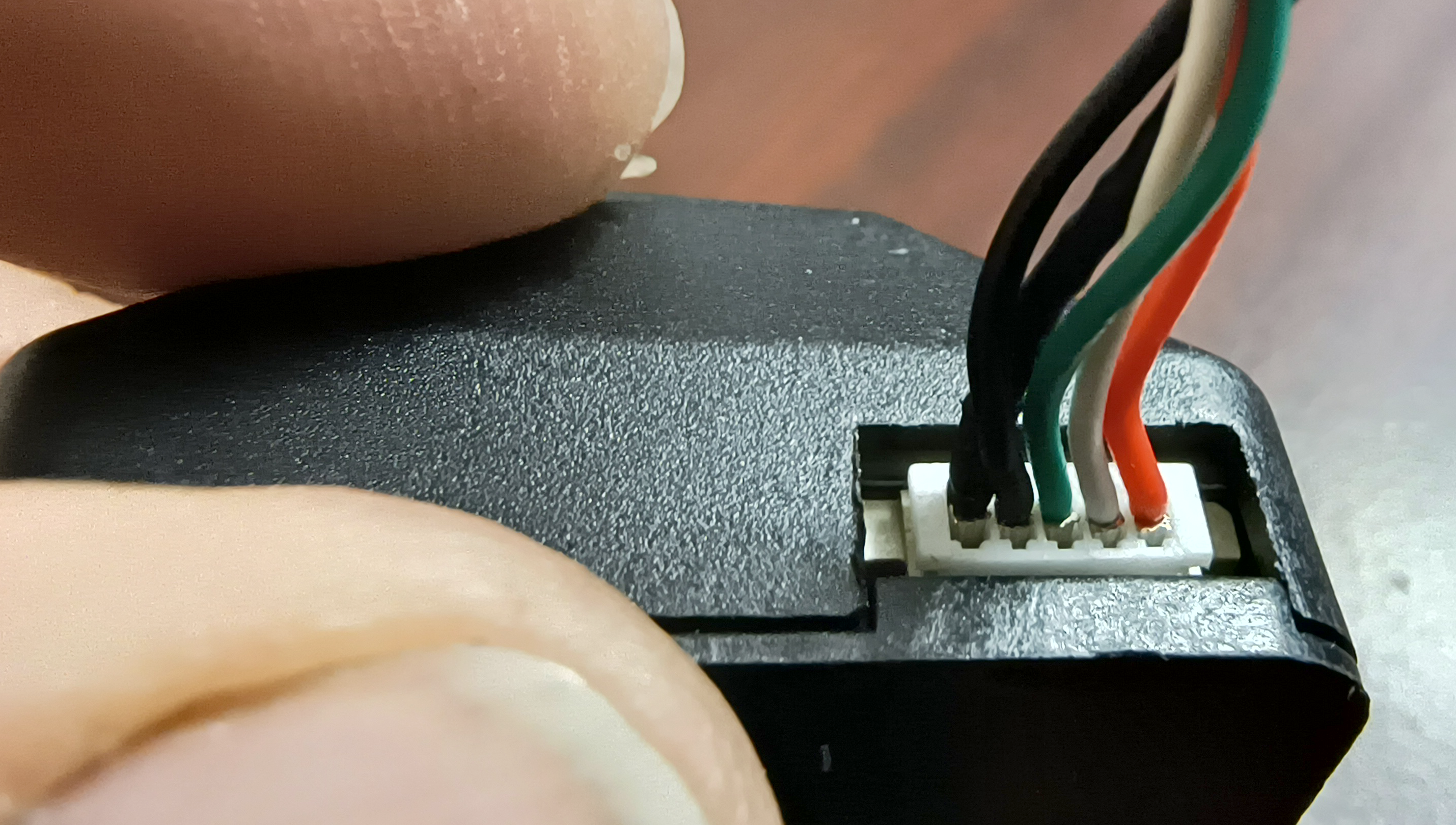

• USB wiring: (Middle-Out) Shield/Gnd/D+/D-/Vcc (NOTE – this is reverse to what some online USB-cable resellers provide – confirm the wiring, trust us!)
  • DON’T trust USB cable colors. Except maybe black and red. Maybe.

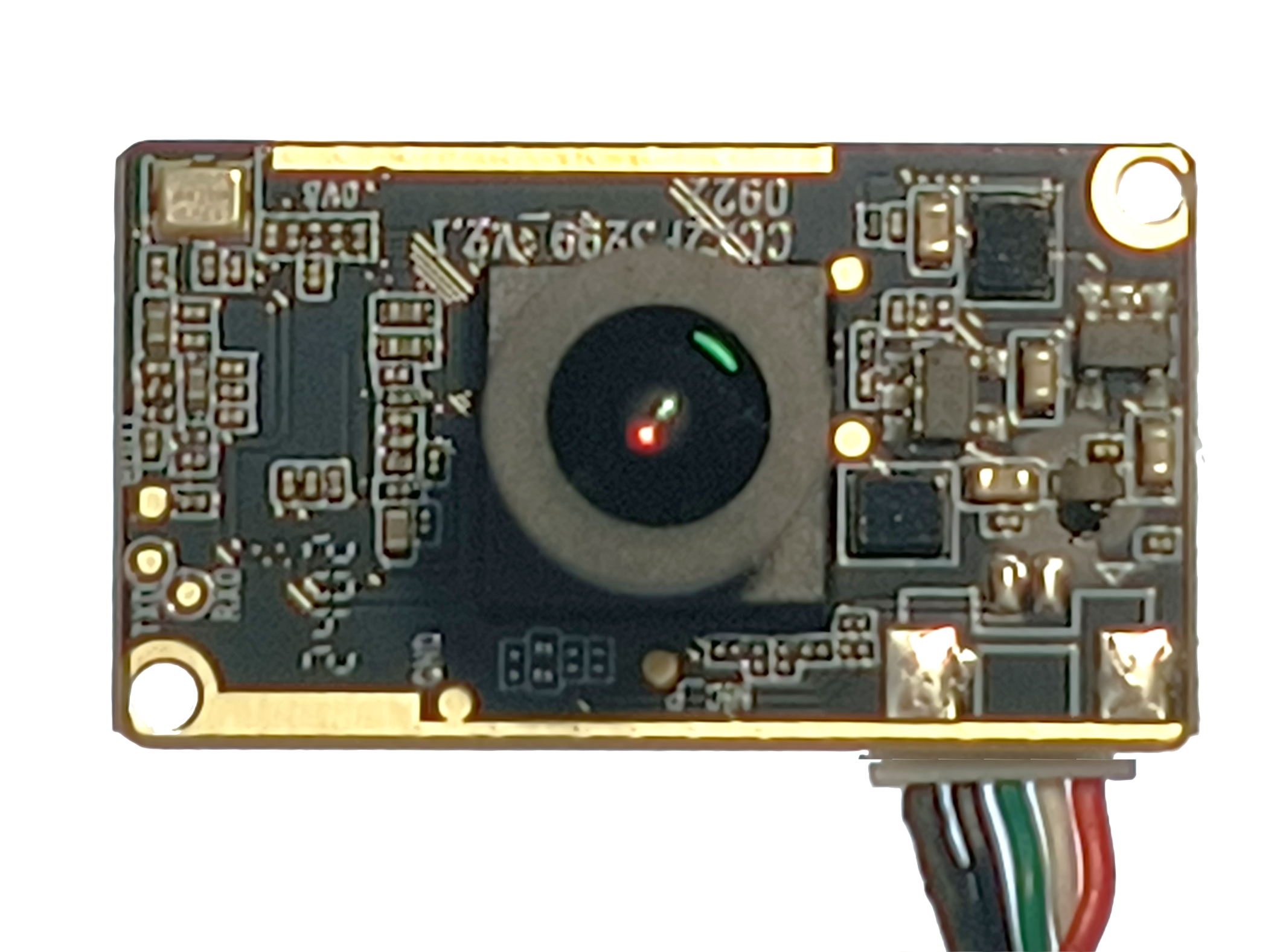

Don’t mind the hole in IC featured in the gallery – from our initial experiments buying off-the-shelf cables.
