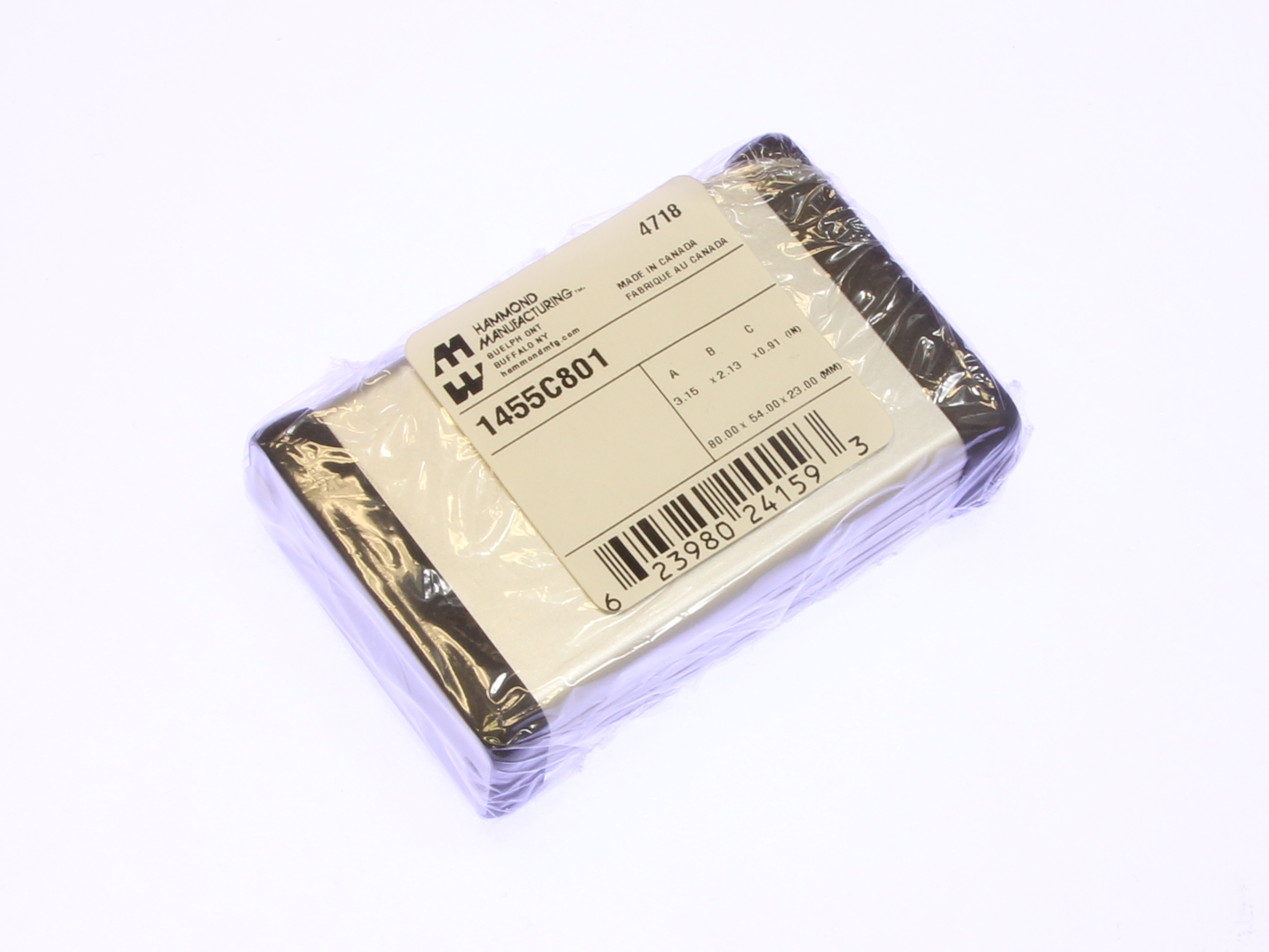

Hammond 1455C801
Features:

• Designed to house P.C. boards or for equipment interfacing.
• Sized for standard Eurocards.
• P.C. boards mount horizontally by sliding into internal slots extruded into the enclosure body.
• Rugged body constructed from extruded aluminium with a minimum thickness of .06” (1.5 mm).
• Extruded body includes a slide removable “belly” plate – except in smaller sizes “A” through “D”.

Includes:

• Versions with metal end plates include two aluminium end panels – finish matched to the extruded aluminium body – and two black ABS plastic bezels (your option to install).
• Versions with plastic end plates include two all-plastic end caps.
• Extruded aluminium body.
• Self-adhesive rubber feet.
• All hardware – end panel screws are #6 x 3/8” TTT – thread rolling, steel screws with a #4 flat head Phillips drive. Zinc plate finish – either clear or black (black screws are used on the black, blue & red models).
• NOTE: Recommended screw torque is 5 lbf-in
