ABS Enclosure, Heavy Duty, Gray - 104x66x33mm (4.1x2.6x1.3in) SKU: 137343

Name: ABS Enclosure, Heavy Duty, Gray - 104x66x33mm (4.1x2.6x1.3in)
SKU: 137343
Availability: OutOfStock

ABS Enclosure, Heavy Duty, Gray – 104x66x33mm (4.1×2.6×1.3in)

$7.99 USD

1594CSGY – Rugged electronic instrument enclosure, suited for mounting printed circuit boards. Heavy duty with a thick walled design of 3.3mm(0.13″).

Out of stock

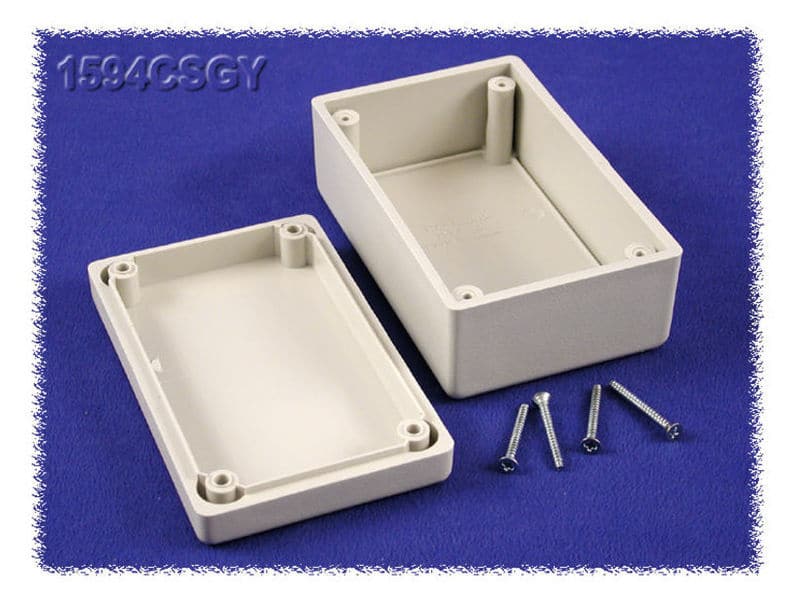

Hammond 1594CSGY
Features

Rugged electronic instrument enclosures, ideally suited for mounting printed circuit boards.
Heavy-duty, thick wall design with an average wall thickness of .13” (3.3 mm).
Standard versions from flame retardant ABS plastic (carries a UL flammability rating of 94V-0).
On standard and water-tight versions, the countersunk lid is secured with four M3 x 0.5 – 0.71” (18 mm) long, Phillips machine screws threaded into integral brass bushings. Perfect for applications with repetitive assembly and disassembly required.
Standard and economy versions are rated IP54, but can be upgraded to IP66 with gaskets and screws with o-rings.
Water-tight versions are rated IP66.
Stocked in black and grey with a matte textured finish.
