Description

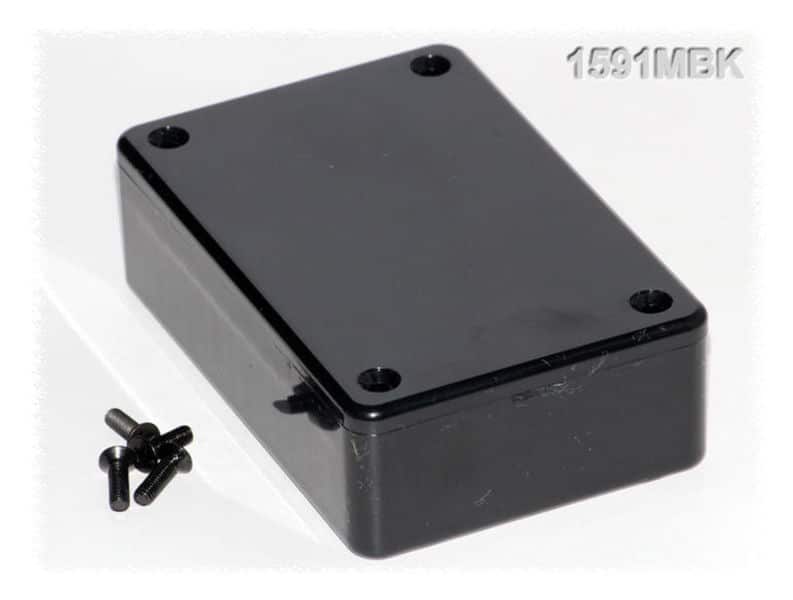

Hammond 1591MBK
Features:

• Ideally suited for vertical mounting of printed circuit boards (internal side walls include molded in card guides – see photo to the right).
• Integral card guides accept 1.5 mm (0.062”) P.C. cards.
• Lap joint construction provides protection against access of dust and splashing water.
• Designed to meet IP54.
• Flame retardant ABS plastic versions carry a UL flammability rating of 94V-0.
• On standard versions the lid is secured with M3 x 10 mm Phillips machine screws, threaded into integral brass bushings. Perfect for applications when repetitive assembly and disassembly are required.
• Economy versions are assembled with self tapping screws into fully plastic posts.
• Black enclosures include black screws, while all others include standard nickel finish screws.
