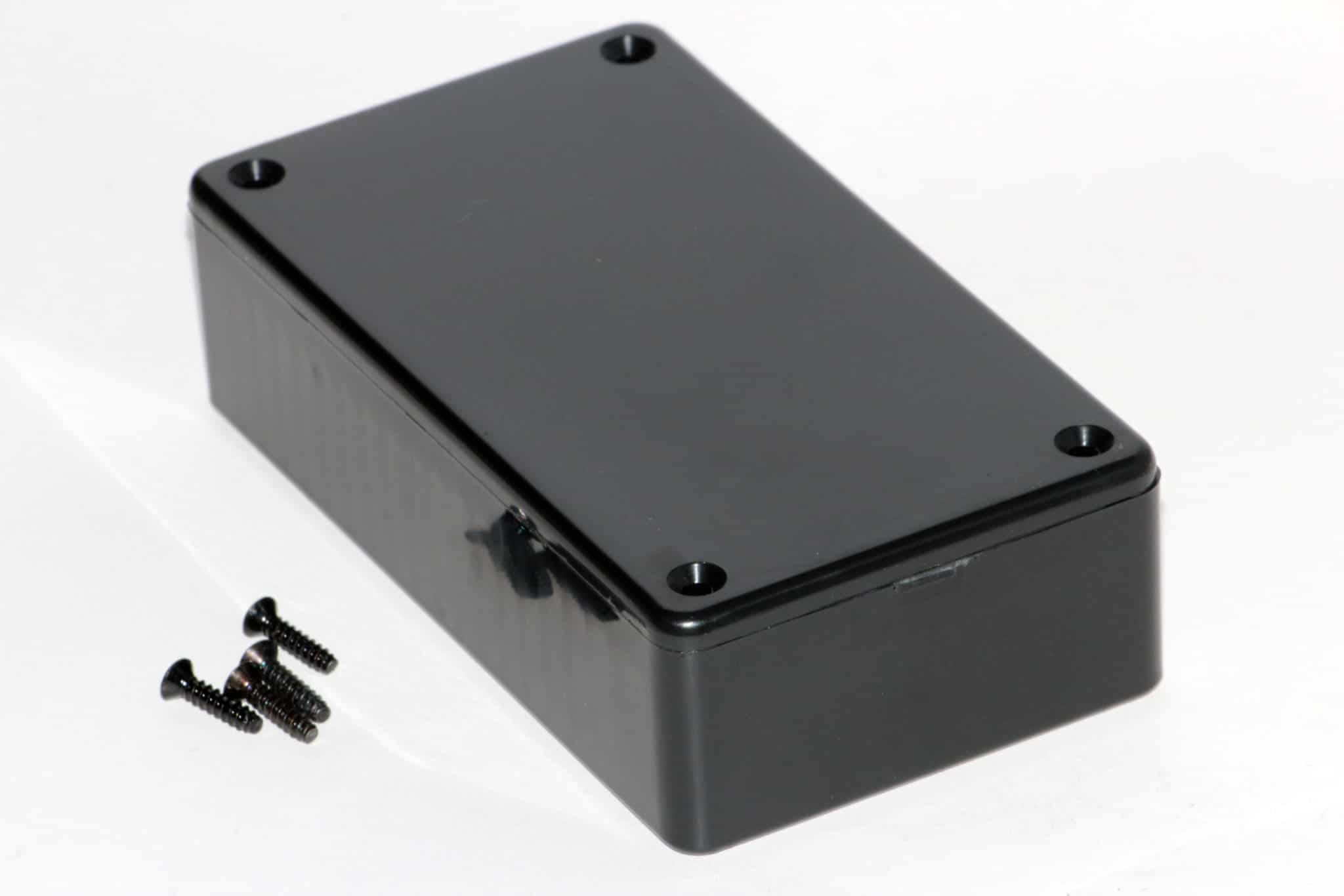

ABS Enclosure, General Purpose, Black - 112x61x28mm (4.4x2.4x1.1in) SKU: 137338
ABS Enclosure, General Purpose, Black – 112x61x28mm (4.4×2.4×1.1in)
$7.90 CAD
1591BSBK – Suited for vertical mounting of printed circuit boards with molded side rails. Easy to machine ABS plastic with lap joint construction for protection against dust and splashing water.
In stock
Description
Hammond 1591BSBK
Features:
- Ideally suited for vertical mounting of printed circuit boards (internal side walls include molded in card guides – see photo to the right).
- Integral card guides accept 1.5 mm (0.062”) P.C. cards.
- Lap joint construction provides protection against access of dust and splashing water.
- Designed to meet IP54.
- Flame retardant ABS plastic versions carry a UL flammability rating of 94V-0.
- On standard versions the lid is secured with M3 x 10 mm Phillips machine screws, threaded into integral brass bushings. Perfect for applications when repetitive assembly and disassembly are required.
- Economy versions are assembled with self tapping screws into fully plastic posts.
- Black enclosures include black screws, while all others include standard nickel finish screws.
More Info
Weight | 0.057 kg |
---|---|
Dimensions | 11.70 × 6.60 × 6 cm |
Material | |
Color | |
IP Rating | |
Type |
