Description

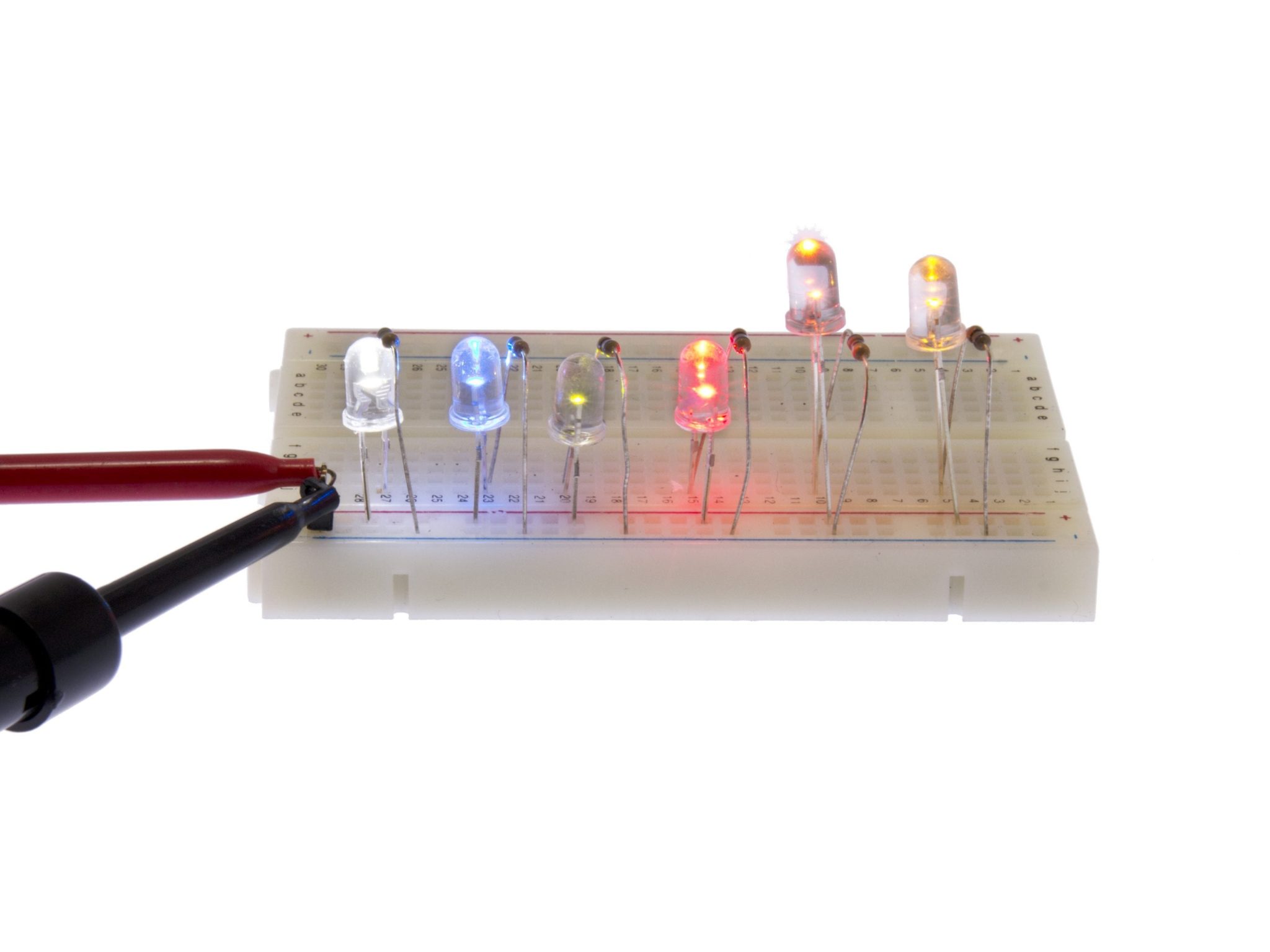

Ultrabright LEDs come from the same part family as the Standard (SLED) series LEDs, but are clear and have a much more focused beam. Good for illuminating a piece, shining through acrylic, or getting attention by blinding a friend(?) or co-worker.

These LEDs have a nominal working current of 20mA, with a maximum rating of 30mA continuous and 150mA pulse (1/10 duty cycle @ 1kHz).

Bundle Includes

• 10x Ultra Bright 5mm LED – Orange (2000mcd, 2.1Vfwd)
• 10x Ultra Bright 5mm LED – White (10000mcd, 2.7Vfwd)
• 10x Ultra Bright 5mm LED – Blue (5000mcd, 2.7Vfwd)
• 10x Ultra Bright 5mm LED – Red (1000mcd, 1.95Vfwd)
• 10x Ultra Bright 5mm LED – Yellow (2200mcd, 2.1Vfwd)
• 10x Ultra Bright 5mm LED – Green (700mcd, 2.2Vfwd)

Also Available

• Standard 5mm Diffused LED bundle
• Super Bright 5mm Clear Wide-Angle LED Bundle
• Ultra Bright 10mm LED Assortment
