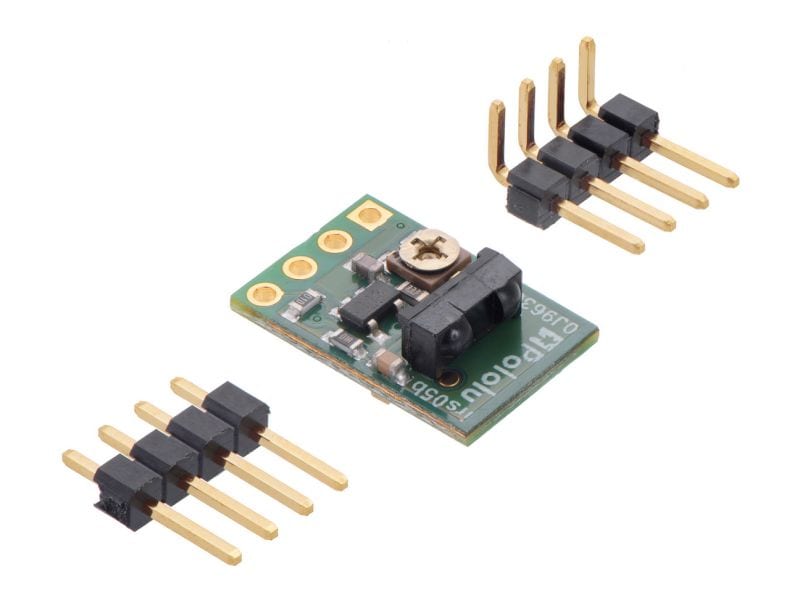

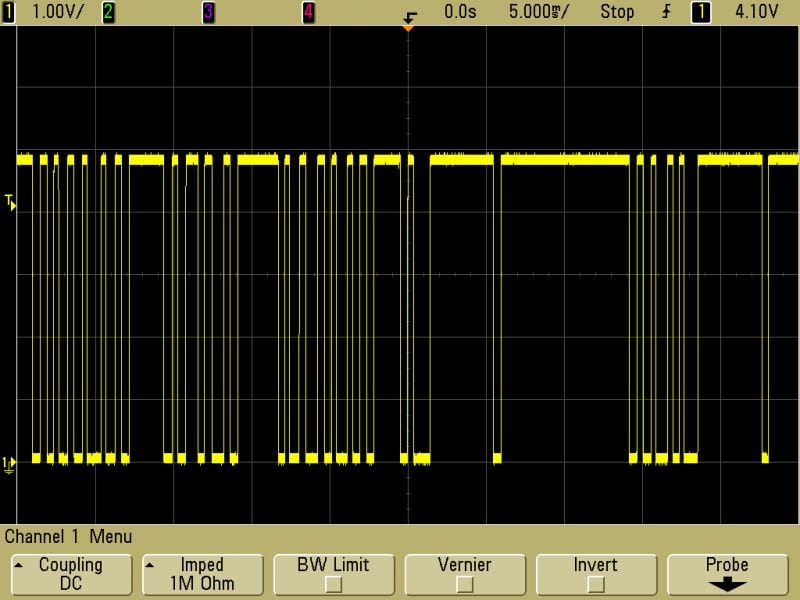

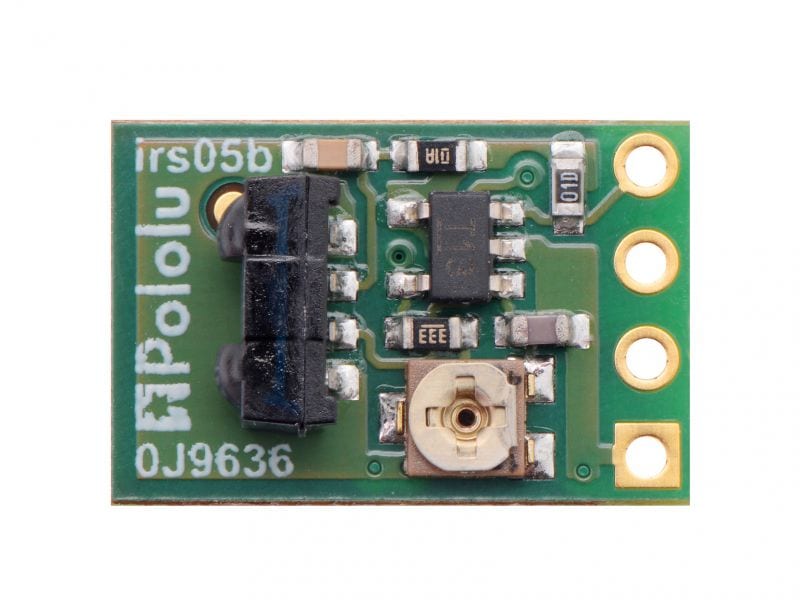

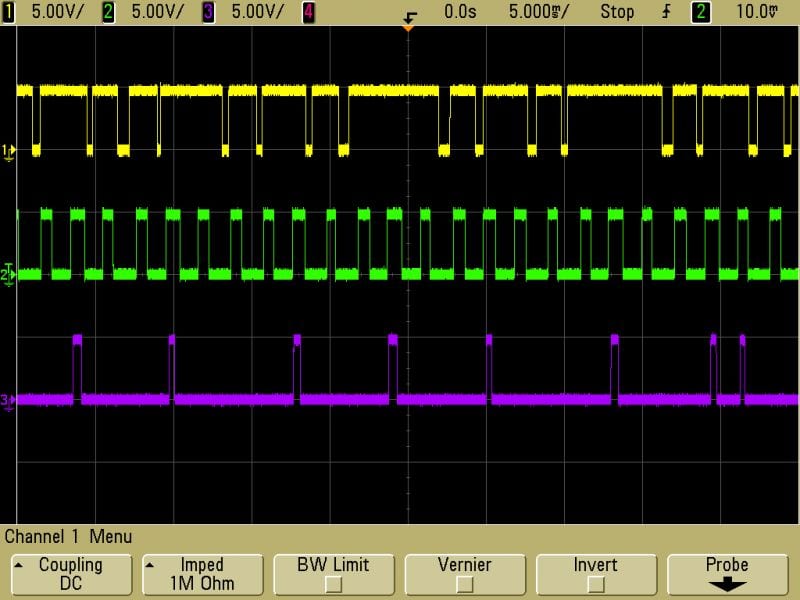

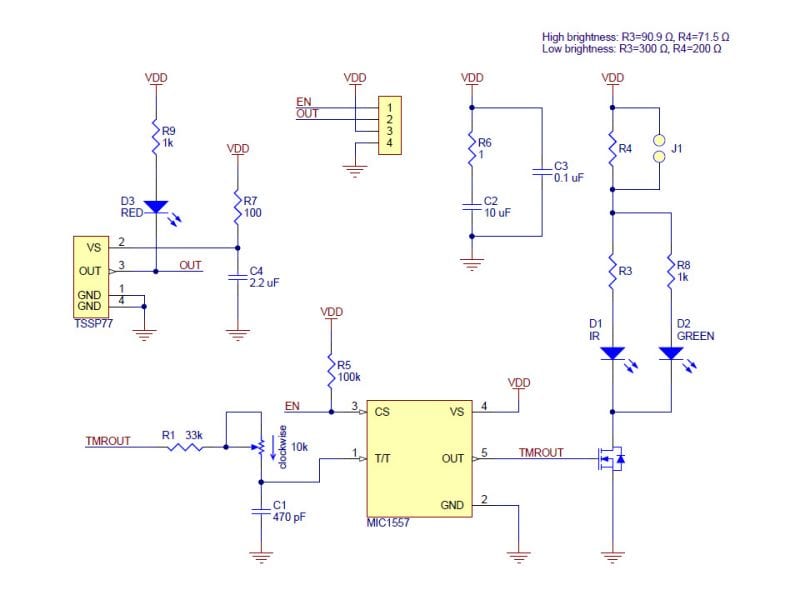

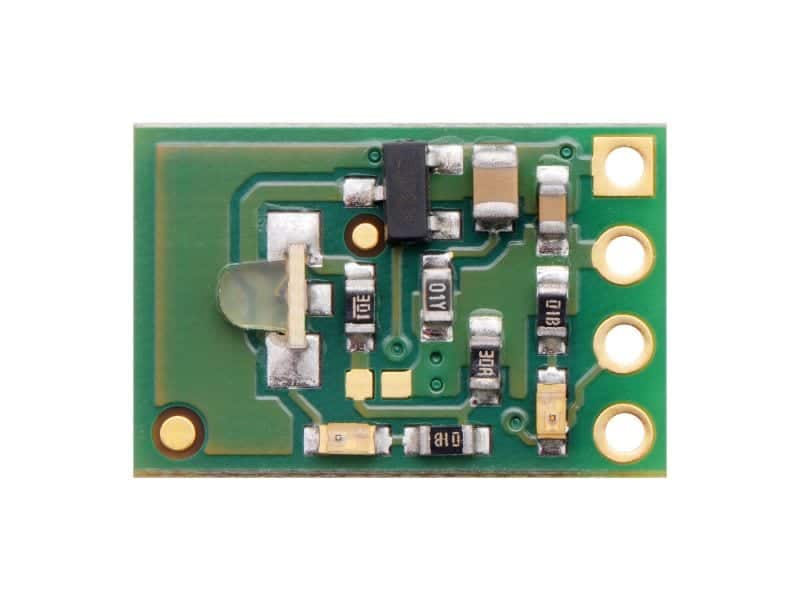

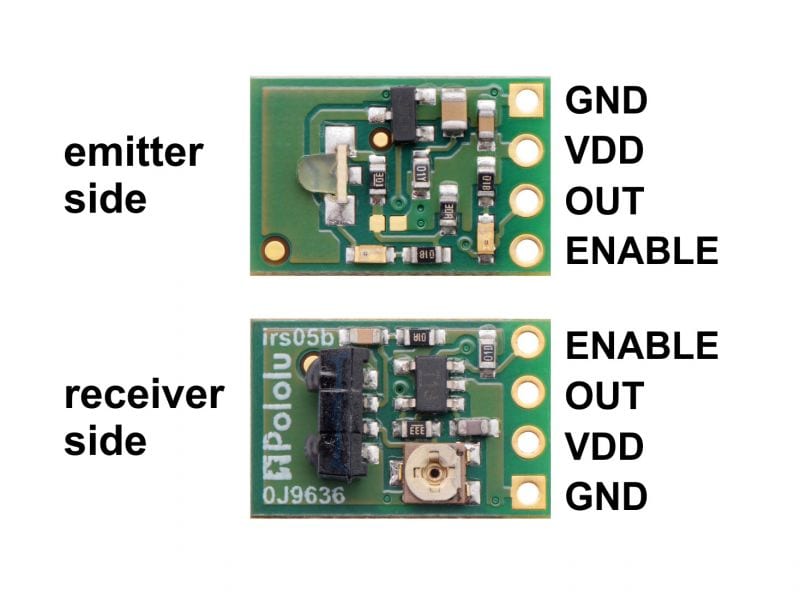

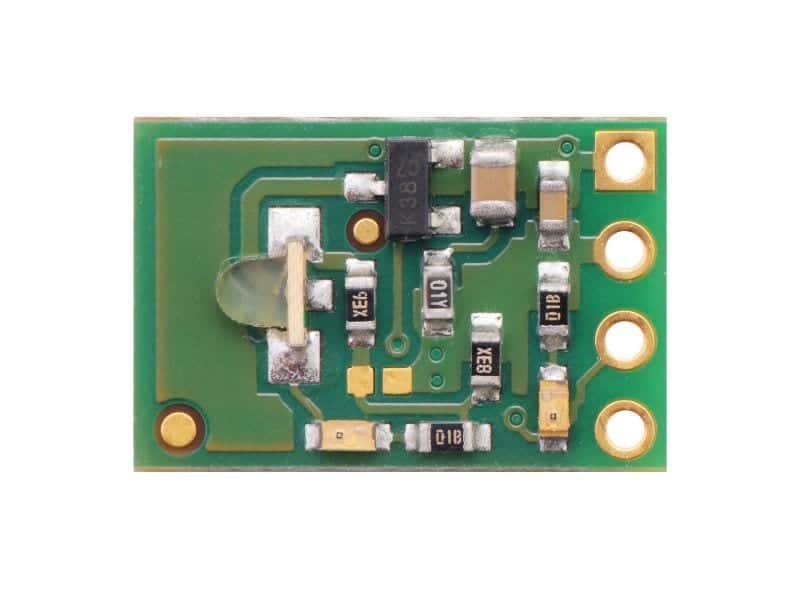

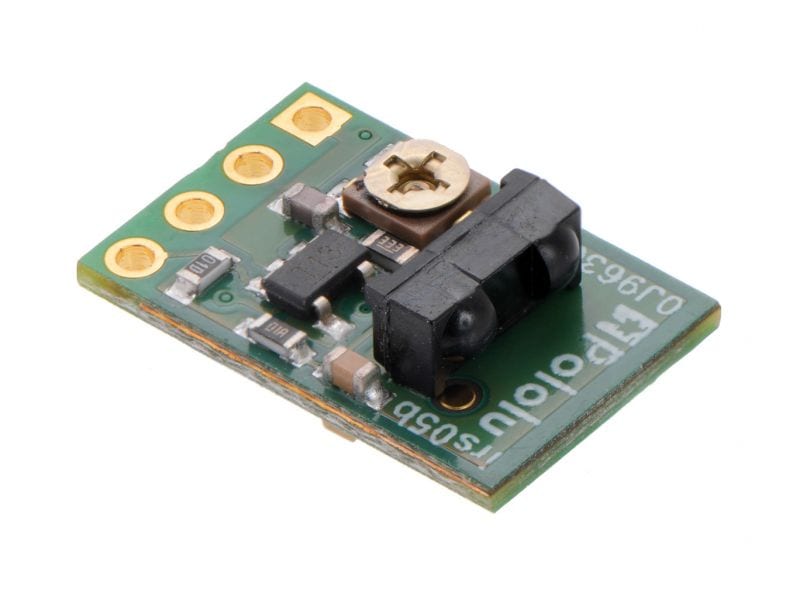

Home / Parts / Sensors / Infrared / Pololu 38 kHz IR Proximity Sensor, Fixed Gain,Low Brightness Pololu 38 kHz IR Proximity Sensor, Fixed Gain,Low Brightness SKU: 51007 Pololu 38 kHz IR Proximity Sensor, Fixed Gain,Low Brightness$5.95 USD Solid, accurate way of determining if something with within range!In stock + Pololu 38 kHz IR Proximity Sensor, Fixed Gain,Low Brightness quantity $5.95 USD- Add to cart SKU: 51007 Categories: Infrared, Parts, Sensors Tag: allAccounts Description Resources More Info Reviews (0) Description This module features a fixed-gain, 38 kHz modulated IR sensor and a corresponding IR LED with oscillator circuit to make a tiny proximity sensor. This low-brightness version draws an average of 8 mA at 5 V and has a typical sensing range up to approximately 12 inches (30 cm). These sensor modules are based on Vishay’s TSSP77038 modulated infrared receivers. Unlike most IR receiver modules designed for remote control of appliances like televisions, the TSSP77038 has a fixed gain (sensitivity) that makes the sensor more predictable when used in proximity or reflectance sensors. The Pololu carrier module combines the TSSP77038 with an IR LED driven by a 555 timer-based circuit to make a complete sensor module that requires only a 3.3 V to 5 V power connection. An enable input allows control of whether or not the IR LED is on, and a digital output indicates whether or not an object is detected. Connections The proximity sensor has four connections: ground (GND), logic power (VDD), digital detection indicator (OUT), and IR emitter enable (ENABLE). The logic power, VDD, should be between 3.3 V and 5 V. Supplying less than 5 V will decrease the IR LED brightness and decrease the sensing range. To run the sensor at full brightness while powered at 3.3 V, bridge the surface mount jumper located on the emitter side of the board. The OUT pin, which is high by default, remains low as long as the TSSP77038 receiver is detecting a sufficient signal. When at the edge of the detection range, this output will alternate between high and low. A red LED on the emitter side of the board is tied to this output and turns on when the pin goes low, providing a visual indication of when the sensor is detecting something. The ENABLE pin turns off the IR emitter LED when it is set low. This pin is high by default and can be left disconnected if dynamic control of the IR emitter is not needed. A green LED on the emitter side of the board is connected in parallel with the IR LED, making it easy to tell when the IR LED is on. The four connections are arranged with a 0.1″ spacing along the edge of the board for compatibility with solderless breadboards, connectors, and other prototyping arrangements that use a 0.1″ grid. You can solder wires directly to the board or solder in either the 4×1 straight male header strip or the 4×1 right-angle male header strip that is included. Limitations This sensor will only tell you if an object is within its sensing range, not how far away it is. At the edge of its detection range, the output will alternate between high and low as it sporadically detects (see the left oscilloscope capture below). The sensor is merely looking at whether or not it is getting any signal back, so object size and reflectivity (to IR) will affect sensing range. The sensing angle is relatively wide in both directions. For many applications, additional shielding can be used to block undesirable sensing paths, such as reflections off of the ground, or to reduce interference from ambient lighting. When applying shielding, keep in mind that reflection off the shielding itself can cause undesired activation of the sensor. This sensor can be triggered by ambient IR (e.g. from fluorescent lights; see the right oscilloscope capture below). Some optical shielding, such as by having the sensor mounted receiver-side-down when fluorescent lights are above, might mitigate this. Some advanced analysis of the correlation between the output and toggling of the enable input might also be used to mitigate ambient interference. Multiple sensors can interfere with each other. Multi-module applications might require use of the enable inputs to limit interference. Dimensions: Size: 0.4″ × 0.6″ × 0.2″ Weight: 0.6 g General specifications: Maximum range: 12″ Sampling rate: 1kHz Average input current: 8mA Resources Vishay TSSP77038 IR receiver module datasheetDatasheetDimension diagram of the Pololu 38 kHz IR Proximity SensorDocumentation3D model of the Pololu 38 kHz IR Proximity SensorDocumentationDrill guide for the Pololu 38 kHz IR Proximity SensorDocumentation More Info Weight 0.0024 kg Dimensions 6.5 × 4 × 0.3 cm Reviews There are no reviews yet.Only logged in customers who have purchased this product may leave a review. Related products Solarbotics L293D Secret Motor DriverSKU: K SMDThe Secret L293D motor driver kit replaces the guts of a standard servo and turns it into tidy gear motor with a built in motor driver!$12.95 USD In stockAdd to cart 330µF 16V Electrolytic CapacitorSKU: CP330uFA nice and tidy 330µF 16V capacitor, ideal for power filtration.$0.35 USD In stockAdd to cart Dual Small Spring Sensor parts bundleSKU: TACT2A pair of low-force omnidirectional tactile sensors$4.50 USD In stockAdd to cart 6.8µF Tantalum CapacitorSKU: CP6.8uF6.8µF tantalum capacitors have low leakage and greater capacitance than monolithics.$0.80 USD In stockAdd to cart SPDT Slide SwitchSKU: SWT1PC-Mount SPDT narrow power switch$1.35 USD In stockAdd to cart
