Description

Need a simple breakout for your Synapse modules? Use this kit for the application end of your Synapse Wireless RF networks. This kit will provide your Synapse node with 3.3V regulated power and break out all the nodal pins.

Kit Includes:

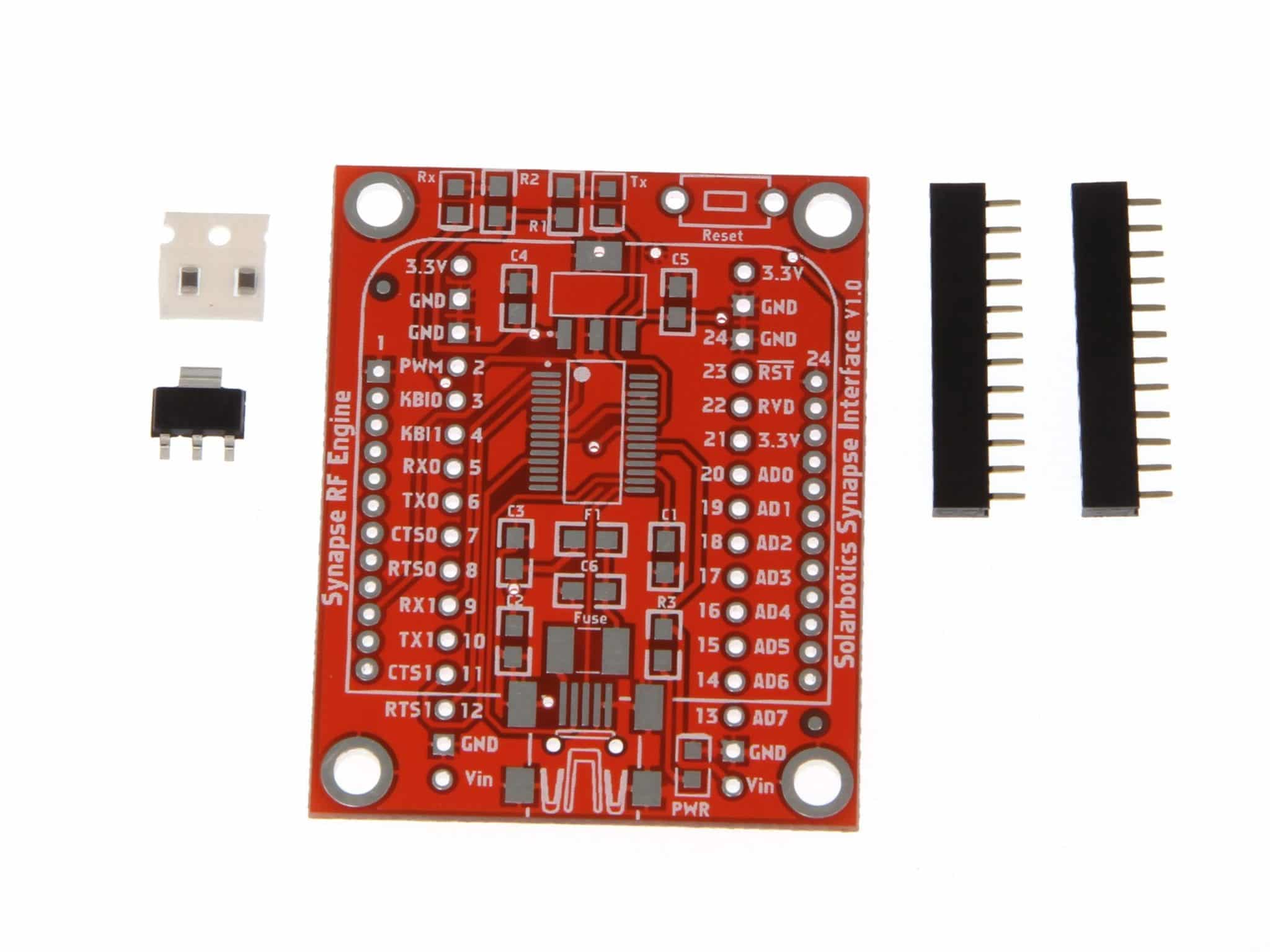

• 1 x Solarbotics RF engine Interface PCB
• 2 x Female Header 12-pin – 2mm spacing
• 2 x 1uF 0805 Surface Mount Capacitors for C4 & C5
• 1 x MCP1826S-3302 (3.3V 1Amp Voltage Regulator) 2.3VDC Min – 6VDC Max

Please Note: The silkscreen markings are for RF100 modules but it accommodates RF200 and RF300 modules as well. The pins labeled AD0-AD7 are in reverse order, sorry our mistake.
