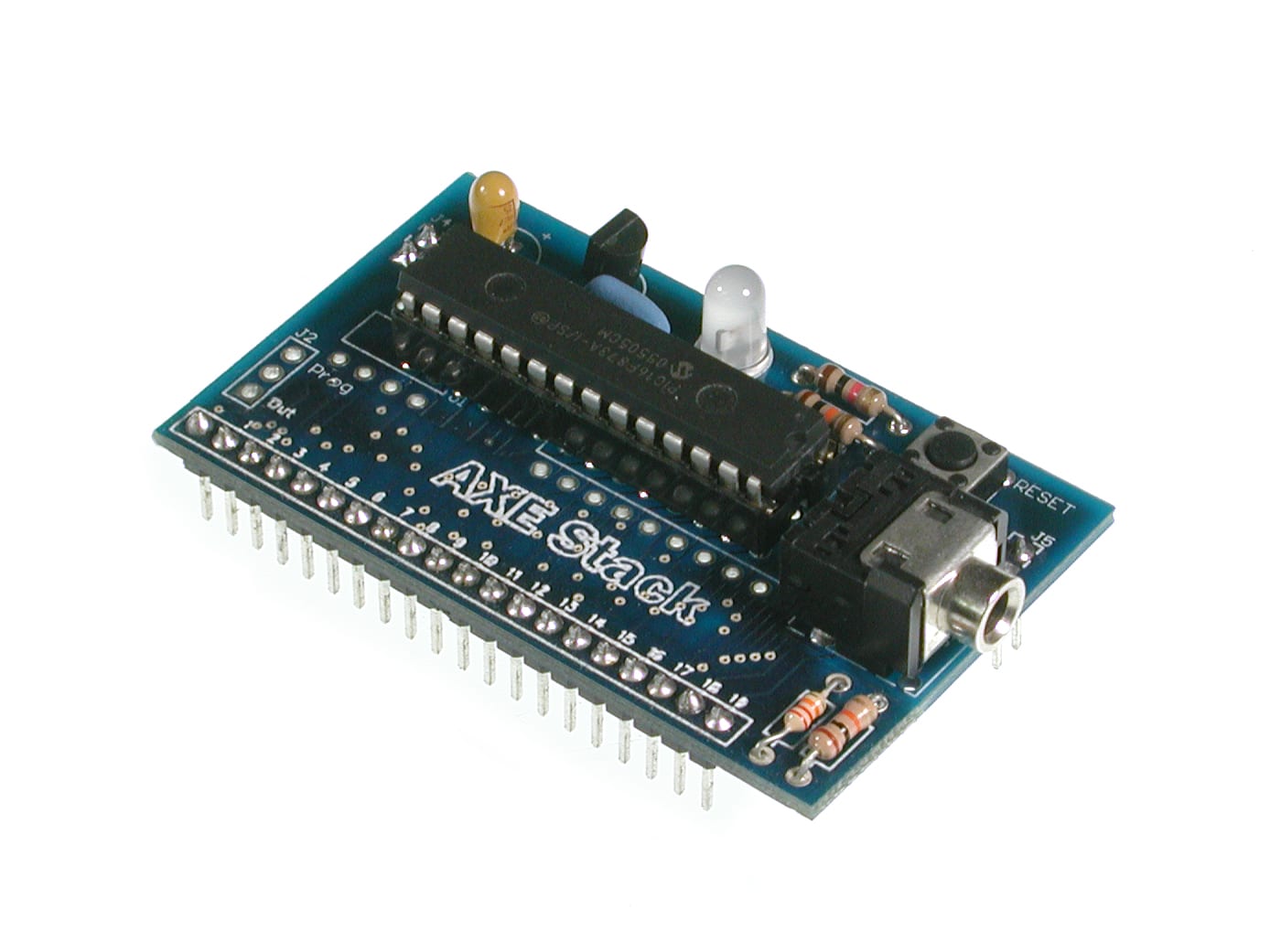

The AXE Stack-28 carries on the tradition of our popular “stack” products with the 28-pin PICAXE microcontrollers. As with our other stacks, the AXE Stack-28 mounts on any breadboard for total prototyping flexibility.

Features

• High quality double-sided circuit board with plated-through holes for easy assembly.
• Over-voltage and reverse-polarity protected on-board voltage regulator circuit.
• Bi-Colour power indicator LED (green=correct, red= reversed).
• Mounts on any breadboard for easy and expandable prototyping.
• RESET button
• Provides a sturdy platform that protects the PICAXE IC from damage – ideal for the classroom!
• PICAXE-28X1 IC included.

What’s In the Kit

• Circuit board and all components (including a PICAXE-28X1 microcontroller)
• Assembly instructions
• Programming tutorial

What’s Not Included

• Programming cable*
• Breadboard*

* The AXE Stack-28 Starter Kit includes these items

Assembly Time

• Beginner: 20 Min.
• Expert: 10 Min.

There is a 18-pin version of this stack here (SKU 28570).

Resources

• PICAXE Manual Part 1 – Getting Started (.pdf)
• PICAXE Manual Part 2 – BASIC Commands (.pdf)
• PICAXE Manual Part 3 – Interfacing Circuits (.pdf)
• Programming Editor (.exe)

PICAXE is a trademark of Revolution Education.
