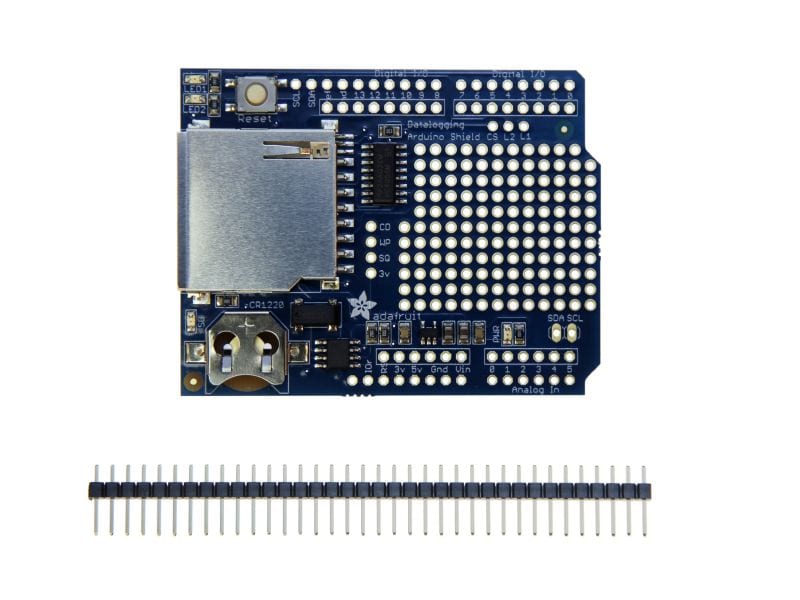

Adafruit Assembled Data Logging shield for Arduino

USD $15.95

The engineers at Adafruit have come up with a nice little datalogger shield, this time (mostly) assembled!

In stock

SKU: 18908 Categories: , , Tag:
DESCRIPTION
RESOURCES
MORE INFO
REVIEWS

DESCRIPTION

Datalogging is an important aspect of a problem. Get data; analyze data; solve problem; eat pie!

To accomplish the first task (get data), the Adafruit datalogger shield for Arduino compatibles is a pretty well-thought out solution. Data is date/time stamped, and written to an SD card in one unit. Solder in the mounting pins, install the battery for the real-time clock, and you're ready to load code into your Arduino to make this shield log stuff.

There are some clever code hacks to maximize this shield's ability to log data at up to 100k samples/second (8-bit accuracy, or 256 levels), and as high as 30k samples per second at 10-bit accuracy (1024 levels).

Features

  • SD card interface works with FAT16 or FAT32 formatted cards. 3.3v level shifter circuitry prevents damage to your SD card
  • Real time clock (RTC) keeps the time going even when the Arduino is unplugged. The battery backup lasts for years
  • Included libraries and example code for both SD and RTC mean you can get going quickly
  • Prototyping area for soldering connectors, circuitry or sensors.
  • Onboard 3.3v regulator is both a reliable reference voltage and also reliably runs SD cards that require a lot of power to run
  • Works with Arduino UNO, Duemilanove, Diecimila, Leonardo or ADK/Mega R3 or higher. ADK/Mega R2 or lower are not supported.

Specifications

  • Dimensions (assembled): 70mm x 53mm x 17mm (2.7in x 2in x 0.65in)
  • SD Card protrudes by 10mm (0.4in) when inserted
  • Weight: 22g/0.8oz



RESOURCES & DOWNLOADS

Additional information

Weight 0.021 kg
Dimensions 15 × 10.5 × 0.7 cm
