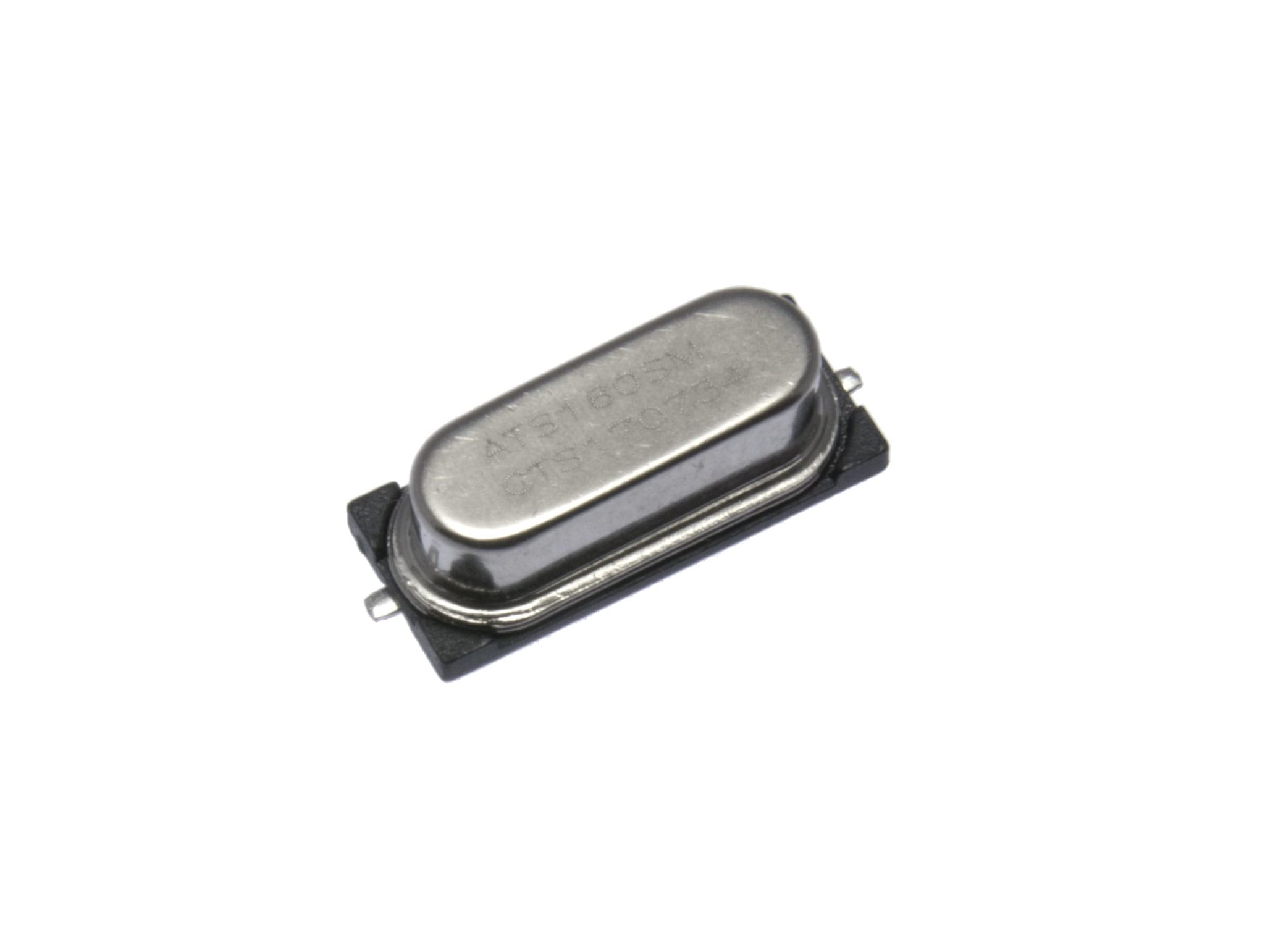

16MHz SMD / Through-hole Crystal Oscillator

USD $1.00

These 16MHz crystal oscillators are actually through-hole, but formed with a spacer to be surface-mount, and can be converted back to through-hole.

In stock (can be backordered)

SKU: 17085 Categories: , , Tag:


These ATS160SM-1 16MHz capacitors have been successfully used to build breadboarded Arduino-compatible circuits. In this form, they're designed to be soldered to the face of a circuit board (SMD), but are easily turned back into through-hole form by unfolding the legs and removing the plastic spacer.


  • Frequency: 16MHz
  • Frequency Stability: ±50ppm
  • Frequency Tolerance: ±30ppm
  • Load Capacitance: Series
  • ESR (Equivalent Series Resistance): 40 Ohm
  • Operating Mode:    Fundamental
  • Operating Temperature:    -20°C ~ 70°C
  • 11.1 x 4.83 x 4.30mm (0.437 x 0.190 x 0.169")
  • Lead free / RoHS Compliant

Additional information

Weight 0.0006 kg
Dimensions 1.2 × 0.5 × 0.4 cm
