1/2" Shrink Tube - Violet SKU: 108646

1/2″ Shrink Tube – Violet

$3.69 USD

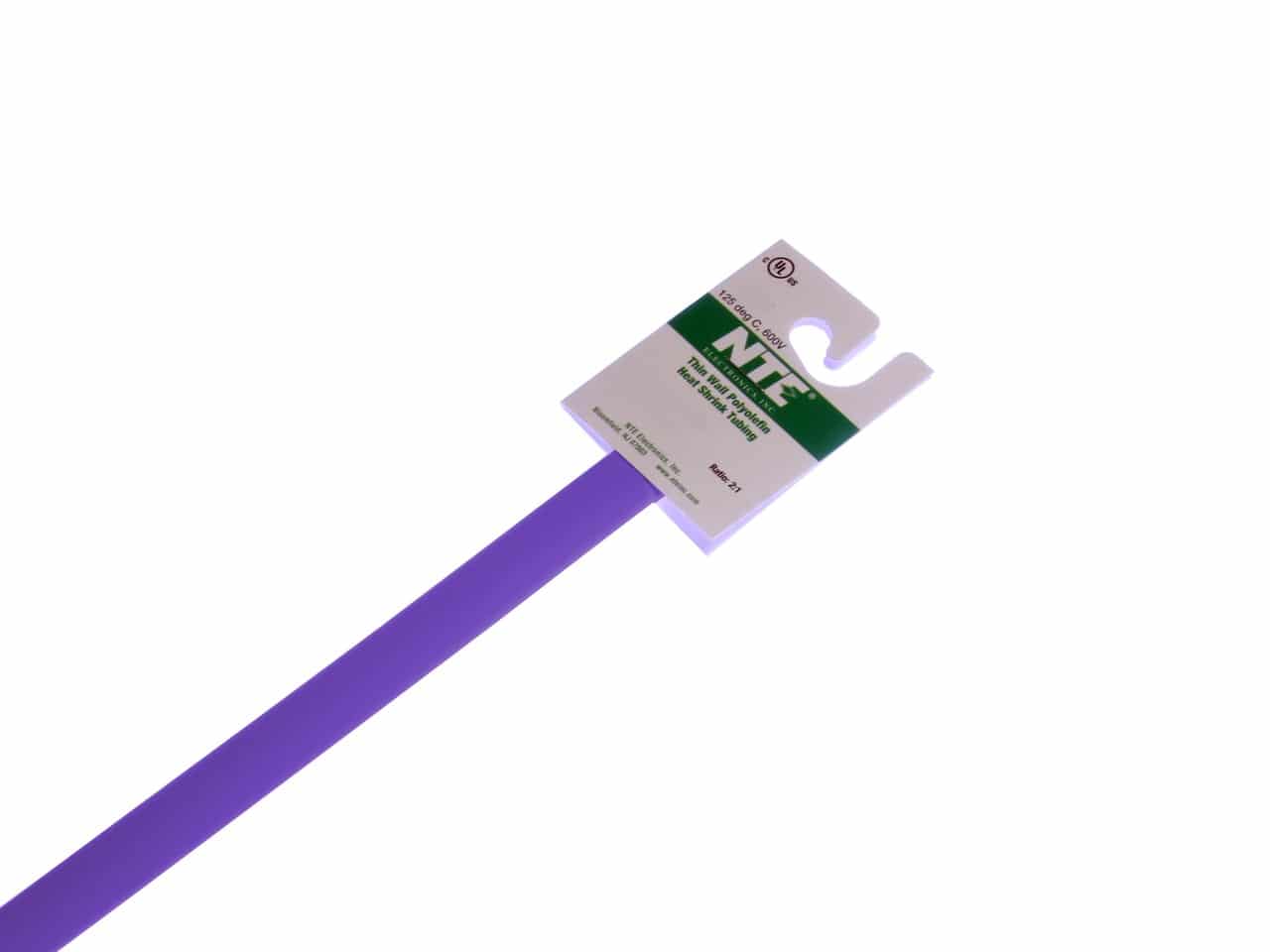

This Violet heatshrink starts at 1/2in and decreases by a 2:1 ratio. Thin walled and sold in 4ft lengths.

In stock

$3.69 USD
SKU: 108646 Categories: , , Tag:

Description

Features:

NTE’s Thin Wall Heat Shrink Tubing is a high performance, multi-purpose, professional-grade, flexible, flame retardant, polyolefin based heat−shrinkable tubing with excellent electrical, chemical and physical properties. This tubing is used extensively in industrial and military applications for cable and wire harnessing, strain relief, insulation, color coding, identification and protection against fluids.

Specifications:

MIL−DTL−23053/5, Class 1 and 3, CSA C22.2 No 198.1 UL 224, 125°C, VW1 (Except Clear)

Technical Data:

Properties Test Method Typical Value
Physical
Tensile Strength ASTM D 638 13 N/mm^2
Elongation at Break ASTM D 638 400%
Longitudinal Change ASTM D 2671 +5%. -5% Max
Water Absorption ASTM D 570 0.15% Max
Specific Gravity ASTM D 792 1.4
Chemical
Fungal Resistance MIL-1-7444 Inert
Fluid Resistance MIL-1-23053/5 Good
Copper Corrosion ASTM D 2671 B Good
Thermal
Continuous Operating Temperature -55° to 135°C
Minimum Shrink Temperature > 90°C
Heat Shock (4 Hours at 250°C) ASTM D 2671 No Dripping, Cracking, or Flowing
Heat Aging (168 Hours at 150°C) ASTM D 638 Elongation 300%
Low Temperature Flexibility (-55°C) ASTM D 2671 C No Cracking
Flammability UL 224 VW 1 Pass (Except Clear)
Electrical
Voltage Rating 600V
Dielectric Strength ASTM D 2671 25kV/mm
Volume Resistivity ASTM D 257 10 @ 14 Ohm.cm

More Info

Weight 0.006 kg
Dimensions 6.90 × 5.10 × 1 cm
Color

Length

Supplied Diameter
