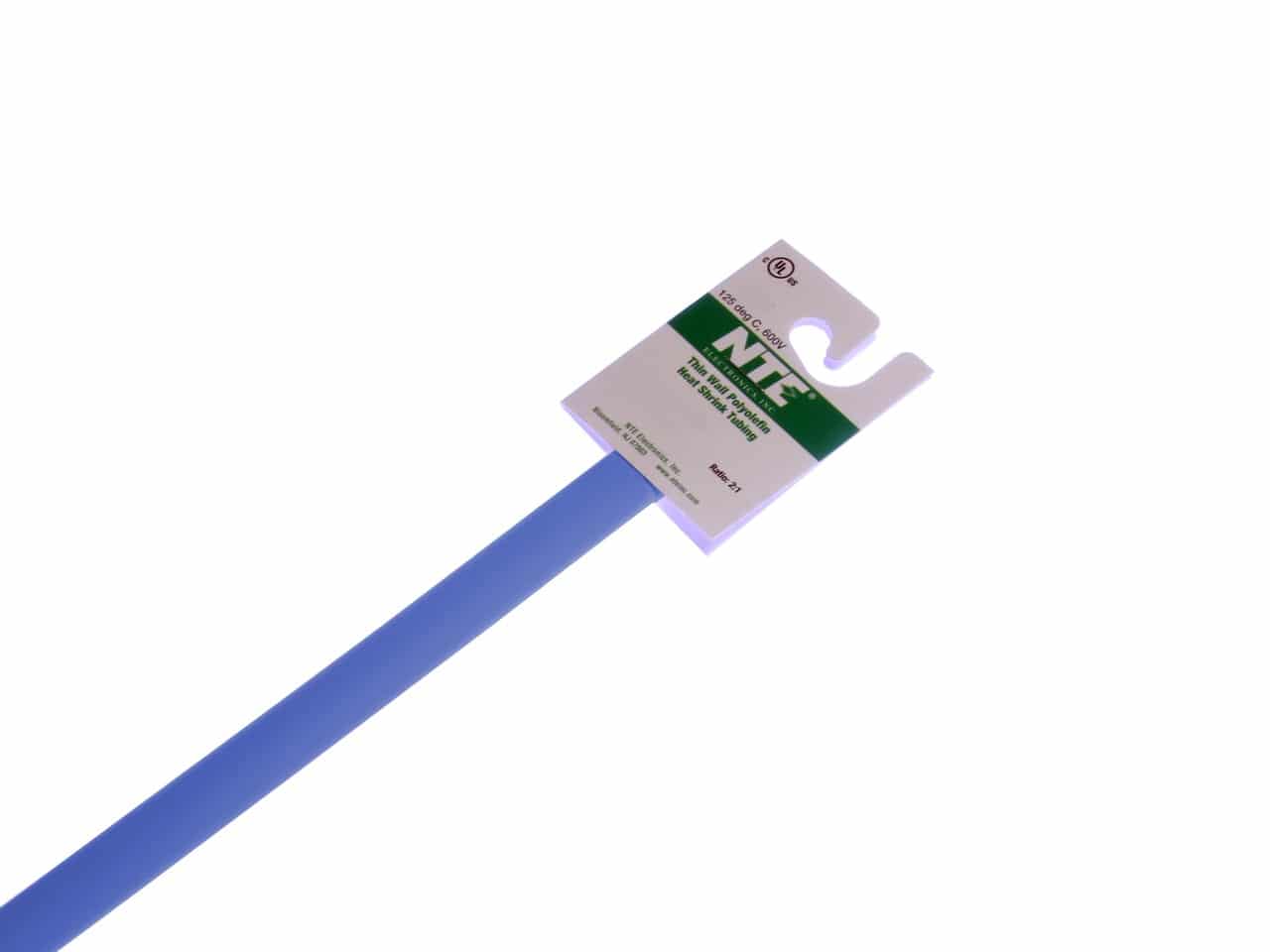

This Blue heatshrink starts at 1/2in and decreases by a 2:1 ratio. Thin walled and sold in 4ft lengths.
NTE’s Thin Wall Heat Shrink Tubing is a high performance, multi-purpose, professional-grade, flexible, flame retardant, polyolefin based heat−shrinkable tubing with excellent electrical, chemical and physical properties. This tubing is used extensively in industrial and military applications for cable and wire harnessing, strain relief, insulation, color coding, identification and protection against fluids.
MIL−DTL−23053/5, Class 1 and 3, CSA C22.2 No 198.1 UL 224, 125°C, VW1 (Except Clear)
|Properties||Test Method||Typical Value|
|Tensile Strength||ASTM D 638||13 N/mm^2|
|Elongation at Break||ASTM D 638||400%|
|Longitudinal Change||ASTM D 2671||+5%. -5% Max|
|Water Absorption||ASTM D 570||0.15% Max|
|Specific Gravity||ASTM D 792||1.4|
|Copper Corrosion||ASTM D 2671 B||Good|
|Continuous Operating Temperature||-55° to 135°C|
|Minimum Shrink Temperature||> 90°C|
|Heat Shock (4 Hours at 250°C)||ASTM D 2671||No Dripping, Cracking, or Flowing|
|Heat Aging (168 Hours at 150°C)||ASTM D 638||Elongation 300%|
|Low Temperature Flexibility (-55°C)||ASTM D 2671 C||No Cracking|
|Flammability||UL 224 VW 1||Pass (Except Clear)|
|Dielectric Strength||ASTM D 2671||25kV/mm|
|Volume Resistivity||ASTM D 257||10 @ 14 Ohm.cm|
