Detecting motion is often done with beautifully created MEMS accelerometers and gyroscopes which do much more than just give you a motion-check. But often all you may need is a simple “”Is this thing moving?”” check. That’s where this module comes into play.

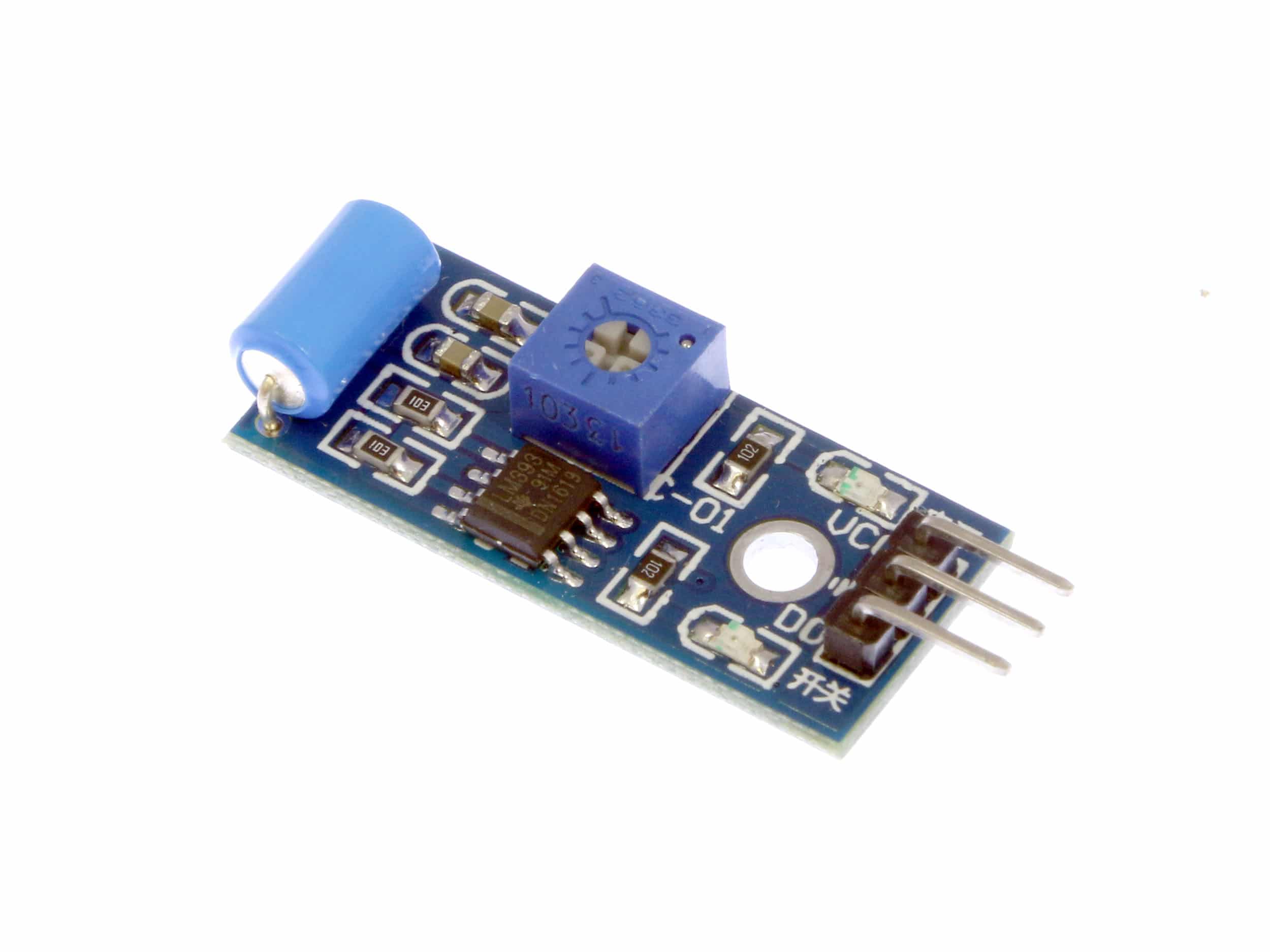

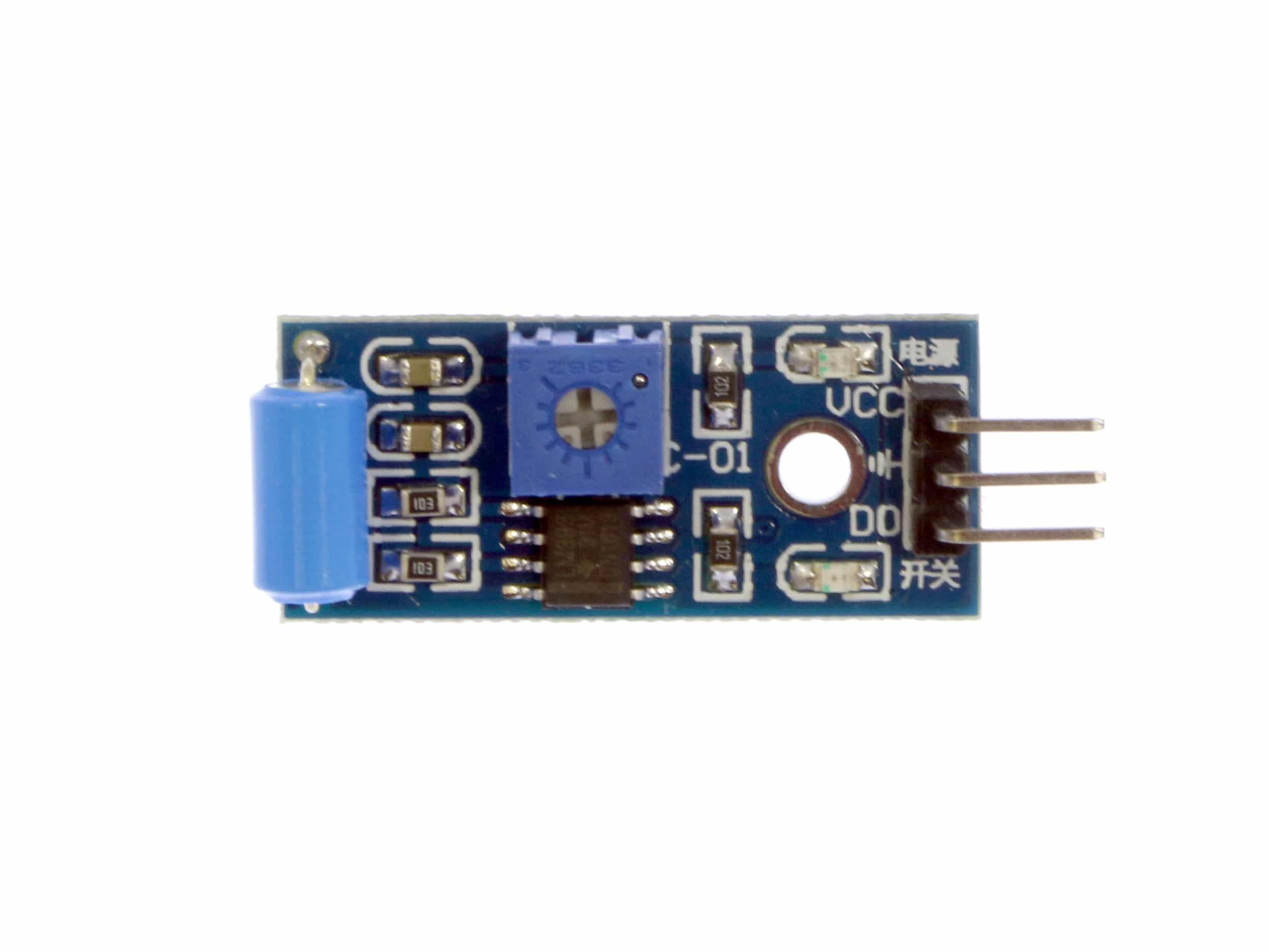

The SW-420 Vibration detection module features a shake-ball cylinder coupled with an LM393 comparitor to create a logic-level output normally-on signal. When there is sufficient G-force motion, the module toggles low, indicated by both an LED going out and a ground signal on the sensor pin.

The trimpot allows you to dial on how severe of a motion is required before it triggers the low-signal, ranging anywhere from a gentle tap to a vigorous shaking motion.

Specifications:

• 3.3~5VDC power
• SW-420 shake sensor
• Digital active-low signaling
• LED indicator for power & signal
• Trimpot for configuring activation strength
• LM393 comparitor output provides 15mA drive
• 3-pin 0.1″” spaced pin wiring interface
• 31x14x7mm
