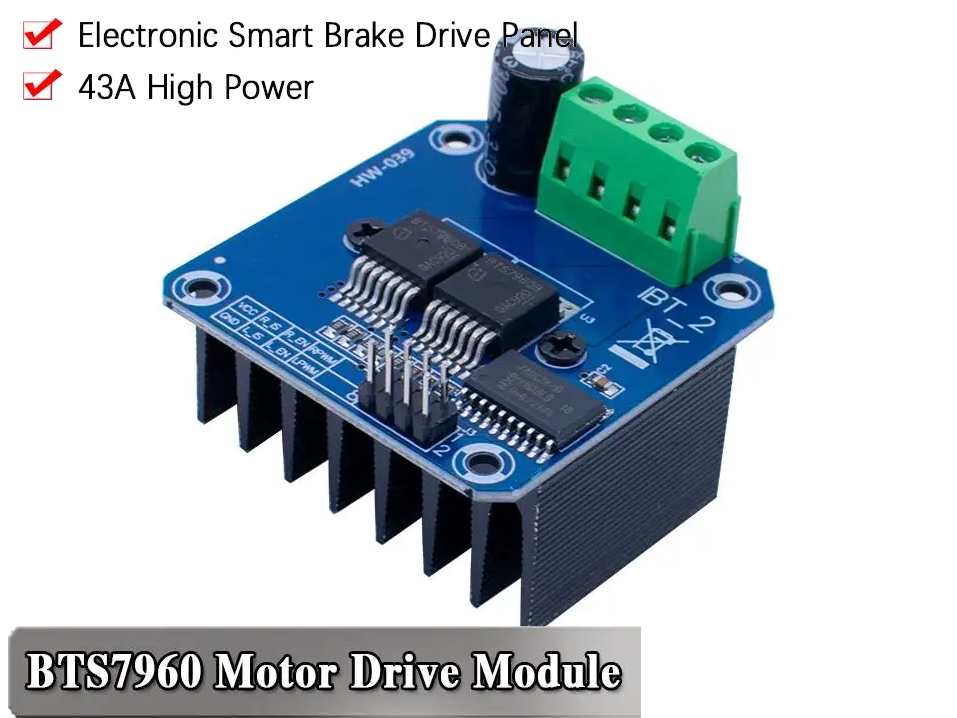

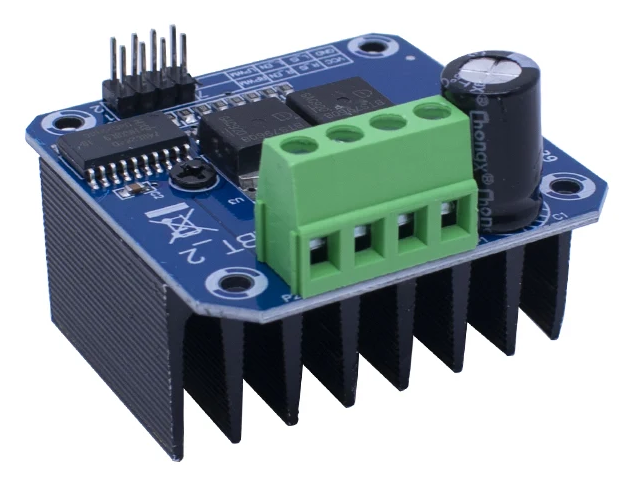

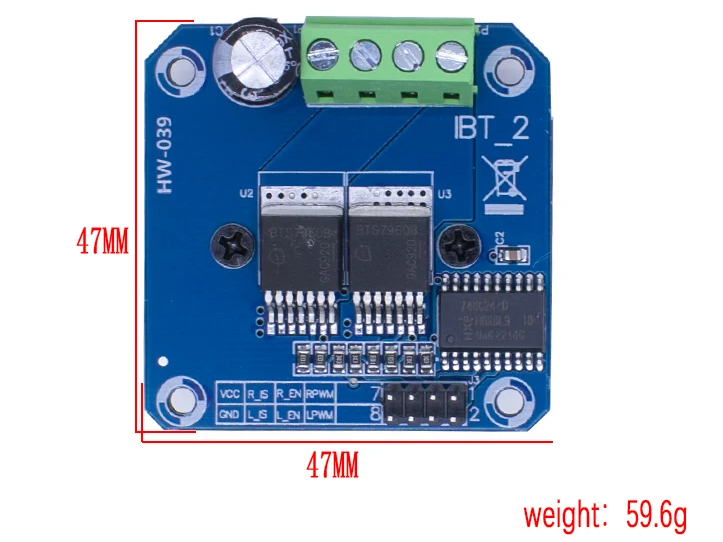

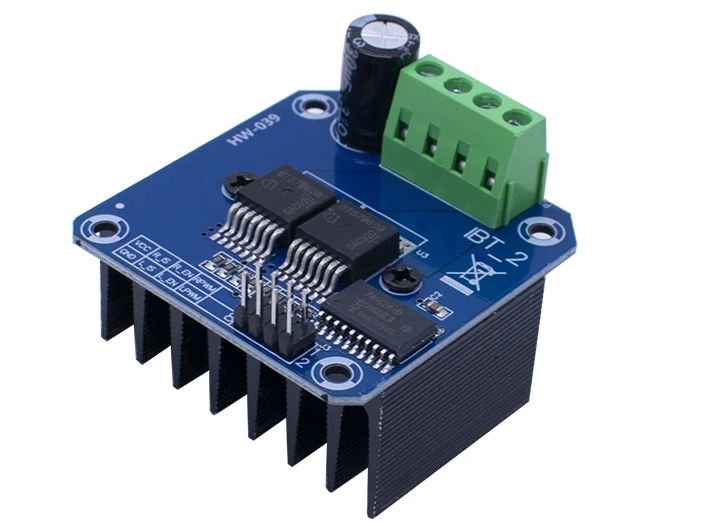

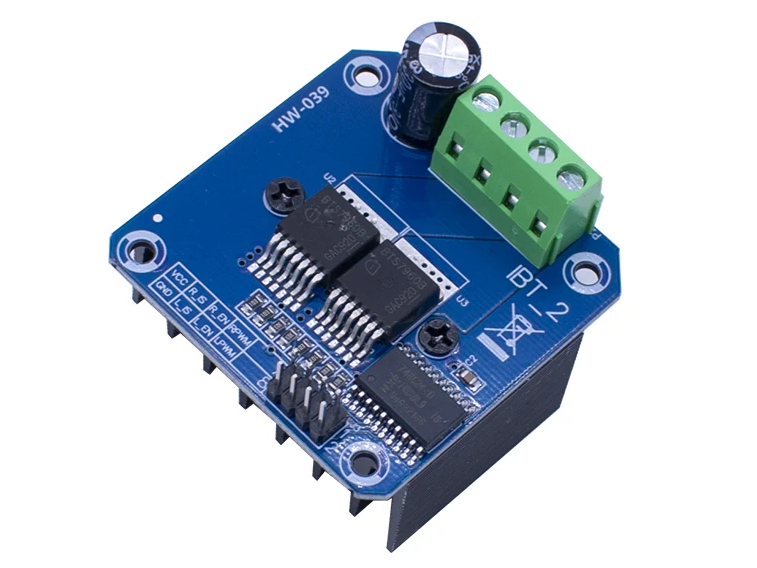

Infineon BTS7960 Dual H-Bridge Motor Controller, with 74HC244 Buffer controller.

Product parameters

1. Double BTS7960 High Current (43A) H Bridge Drive
2. Dual Motor Forward and Reverse
3. High 25KHZ Frequency PWM signal
4. Two Overcurrent/Overheat Error Signal Output
5. Isolation Chip 5V Power Supply (can share 5V with single-chip computer)
6. Power Voltage 5.5 to 27V

Product parameters

• Product name: BTS7960 motor drive module
• Input voltage: 6V~27V
• Surge current: 43A
• Input level 33V~5V
• Control mode: PWM or level
• [remaining text cut off at bottom]
