Flipsky 100A 2-Channel Electronic Speed Controller Based on 6.60 VESC SKU: 700246
Flipsky 100A 2-Channel Electronic Speed Controller Based on 6.60 VESC
$303.85 USD
Available on backorder
Description
What is VESC you ask? It’s a feature-rich electronic speed controller originally designed and open-sourced by Benjamin Vedder. Unlike a regular ESC which is purpose-built for a specific motor size and current, VESC’s can be programmed to accommodate a number of different motor sizes and currents with programmable acceleration and deceleration curves.
While a VESC is not as simple to use as a standard ESC, it allows you to do many things that its counterpart cannot. You can:
- Control torque by adjusting amperage output to the motor and amperage input from the battery
- Customize the acceleration and braking curves to better tune motor behavior
- Specify the number of cells of your battery and overall capacity
- Protect your motors and batteries by specifying amperage maximums
- Use sensored or sensorless BLDC Motors (brushless DC)
While the price of a VESC is higher than your standard ESC, the build quality, robustness, and programmability make it an excellent choice for projects that need fine-tuned control and customizability.
To learn a bit more about VESCs check out the VESC-Project website here
The software for programming the VESC can be found here
Specs:
- Hardware: V6.60
- Firmware: Latest Version
- PCB: 4 layers, size: 40*60mm
- Motor Channels: 2
- Current: 100A continuous per channel / 400A peak per channel
- Voltage: 8V-60V (Cells: 3-13S LiPo)
- Recommended 10S battery
- BEC: 5V@1.5A
- BEC: 3.3V@1.0A
- BEC type: Internal driver support
- Timing: Software calibration
- Motor control interface: PPM signal (RC servo), analog, UART, I2C,
- USB or CAN‐bus.
- Cutoff Voltage: Programmable
- Frequency: PWM input
- Governor: No
- Weight: 76g
- FSESC4.12 Size: 67x39x18.3mm
- Reverse: Yes
- Motor wire: 12AWG
- Power cable: 8AWG

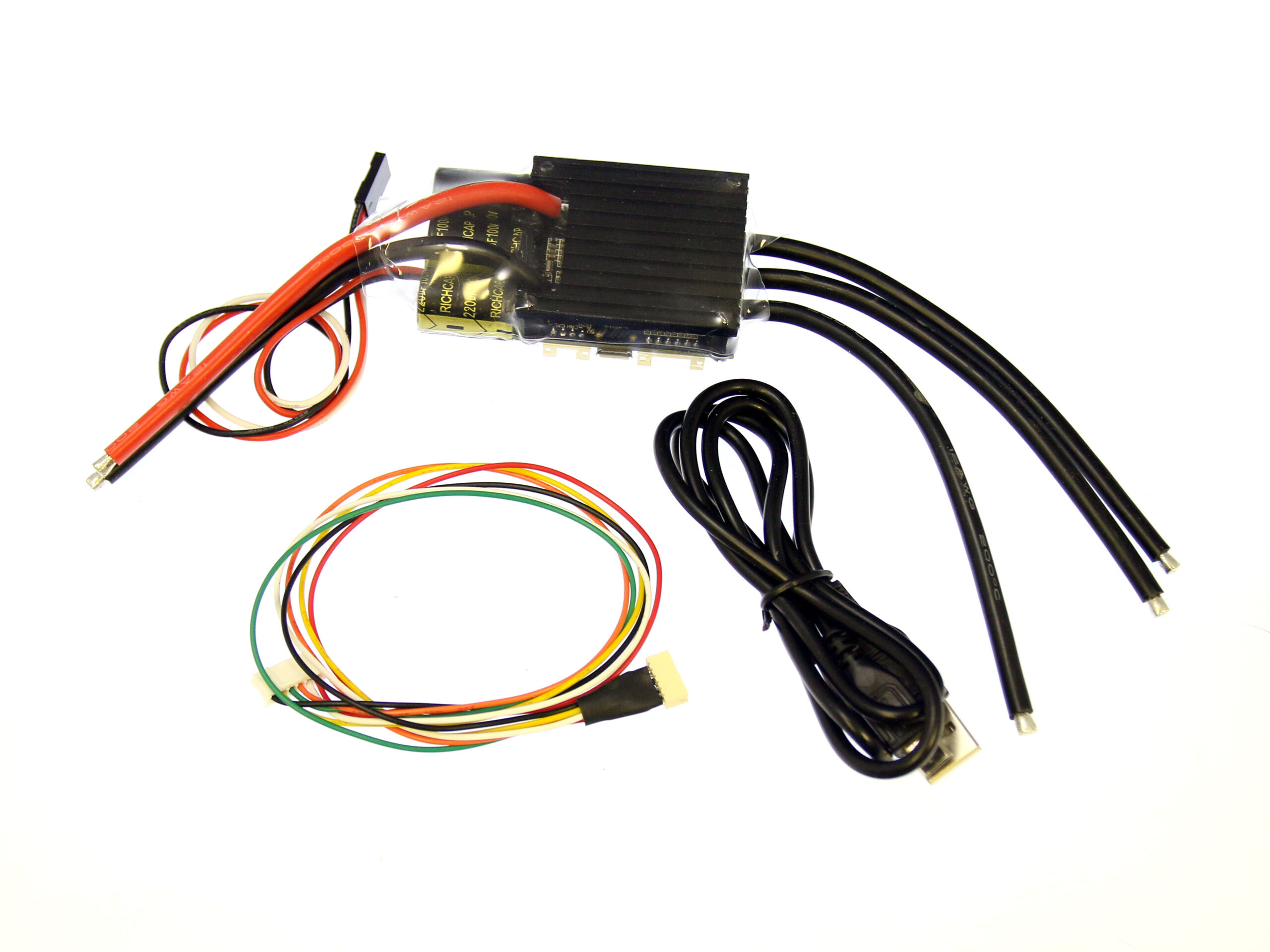

Includes:
- 1*VESC (6.60) + Heatsink
- 1*Micro USB
- 1*VESC Sensor Wire
- 1*Manual
More Info
Weight | 0.250 kg |
---|---|
Dimensions | 20 × 14 × 5 cm |
Type | |
Motors |
