Description

As beautiful as regular RGB are, for proper color rendition a white channel is necessary. That’s where this non-addressable RGBW LED strip comes into play.

It looks and works like any other non-addressable strip where power is provided through the 12V pin and then the R,G,B, and W pins are grounded to turn that channel on.

These are sold by the meter.

Specifications:

• 12VDC
• 30 LEDs per meter (32.2mm spacing)
• 12mm wide PCB (black)

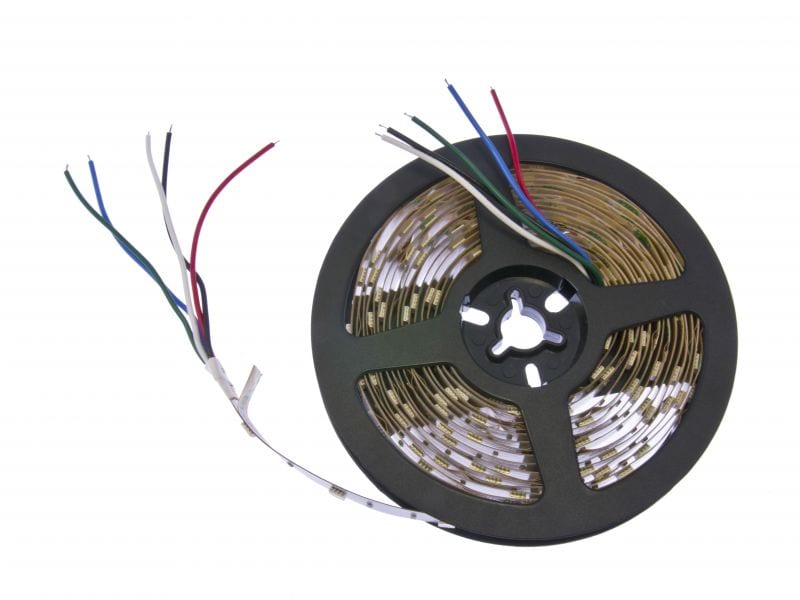

• 5 meters per roll comes complete with wires soldered onto the ends
  • Connector pinout:
  • Red – Red Channel (+R)
  • Green – Green Channel (G)
  • Blue – Blue Channel (B)
  • White – White Channel (W)
  • Black – 12VDC (+12V)
• -40 to 60°C operating temperature

These are sold by the meter! You may or may not wires pre-soldered to the end of your strip. The only way to be sure is to order a full spool (5M length).
