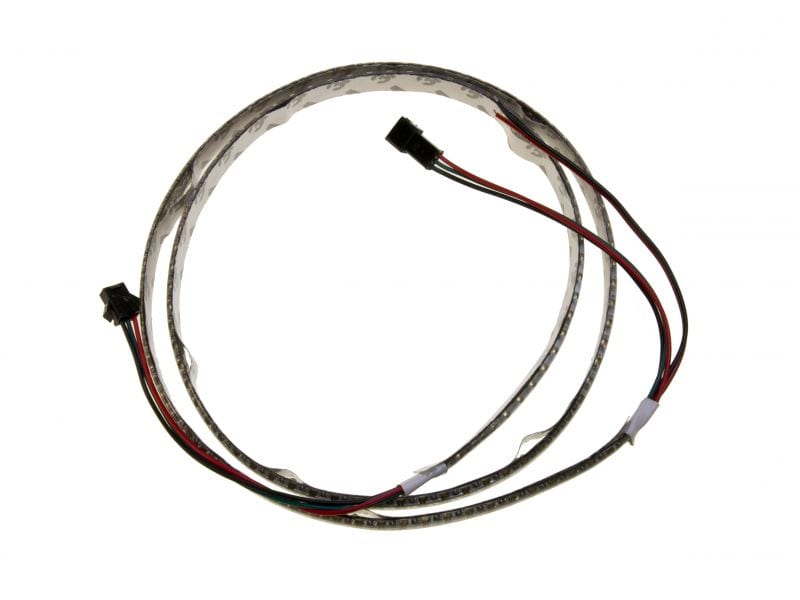

5V RGB Addressable LED strip, 1M (144 per meter)

USD $42.99

With 144 pixels per strip, this is easily the king stripxel of the techno-color jungle.

Available on backorder

SKU: 60542 Categories: , , Tag:
DESCRIPTION
RESOURCES
MORE INFO
REVIEWS

DESCRIPTION

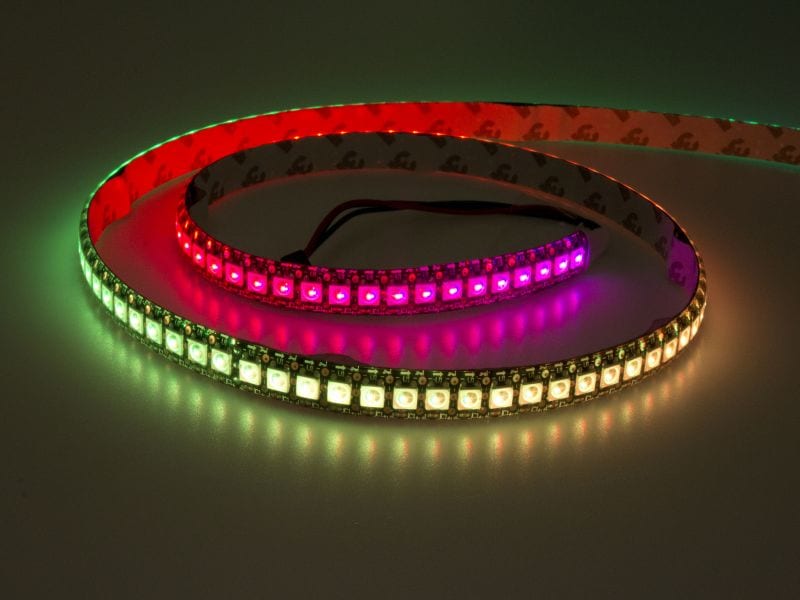

RGB LEDs are cool. The small surface-mount ones are even cooler. But WOW, full flexible strips of RGB LEDS are neat! But these aren't just a strip of LEDs that all change color at the same time - you can individually control each LED!

These Solarbotics stripxels come with 144 LEDs per meter! Each RGB LED connects to the well-documented WS2812B RGB controller IC, so you simply power up the string with 5V, and use the FastLed Arduino library to send the data to each pixel.

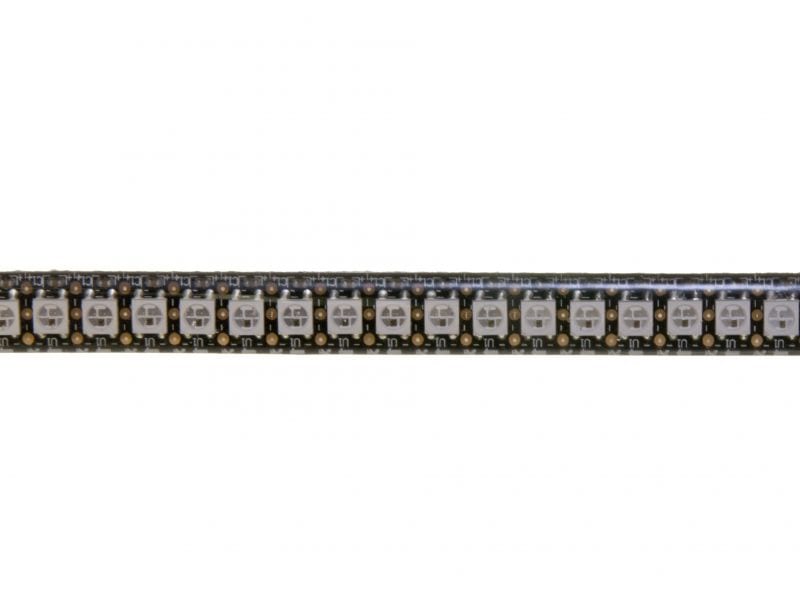

You can snip these strings apart in 1 LED increments at the points marked on the strip, so if you really want to stretch them out, you can snip and patch-wire them different lengths or segments (assuming you are running sufficient 5V power to each segment).

Oh, and did we mention they are waterproof? They are IP67 rated which means they can handle going under water (but try not to place the ends in as well, as they are much less waterproof). Officially, the IP67 rating is described as "protected against the effect of immersion between 15cm and 1m". They also come with an adhesive backing that will allow you to affix them to almost anything!

Applications:

  •     Seasonal lighting: Christmas, Halloween, etc.
  •     Mood lighting
  •     Accent lighting for the home, show vehicle, or robot
  •     Cupboard or closet lighting
  •     Camping Lighting
  •     Edge-lighting for signs

Features:

  •     Working Voltage: DC5V
  •     Current consumption: ~5A (All 144 LEDs at full brightness [White])
  •     Led QTY: 144 leds/M
  •     IC type: WS2812B
  •     PCB Color:Black
  •     Power Consumption: Max 25W/M
  •     Brightness Level: 256 level
  •     Emitting Color: RGB/W/R/G/B/other single color
  •     Waterproof IP grade: IP67, which means "protected from dust" and "protected against the effects of immersion". Just don't submerge the open ends!



Arduino Library: http://fastled.io/

These are sold by the meter!

RESOURCES & DOWNLOADS

Additional information

Weight 0.051 kg
Dimensions 12 × 12 × 3 cm
