Description

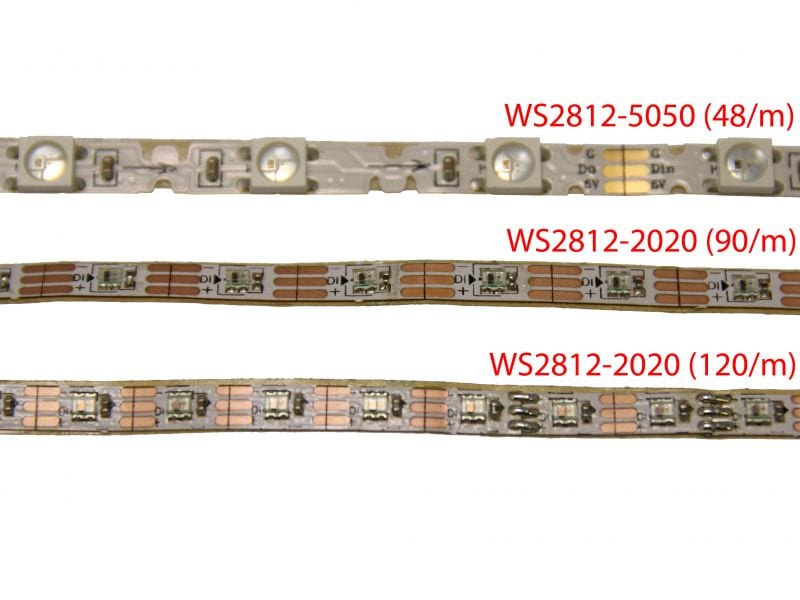

MicroNova is an accurate description of what these LEDs are! Where traditional addressable LEDs come in a “5050” footprint, meaning 5.0 x 5.0mm square, the MicroNova is only 2.0×2.0mm – less than 1/6 the size.

These strips use the standard WS2812 communication protocol and can be controlled with any arduino using the FASTLED or NeoPixel library!

Features:

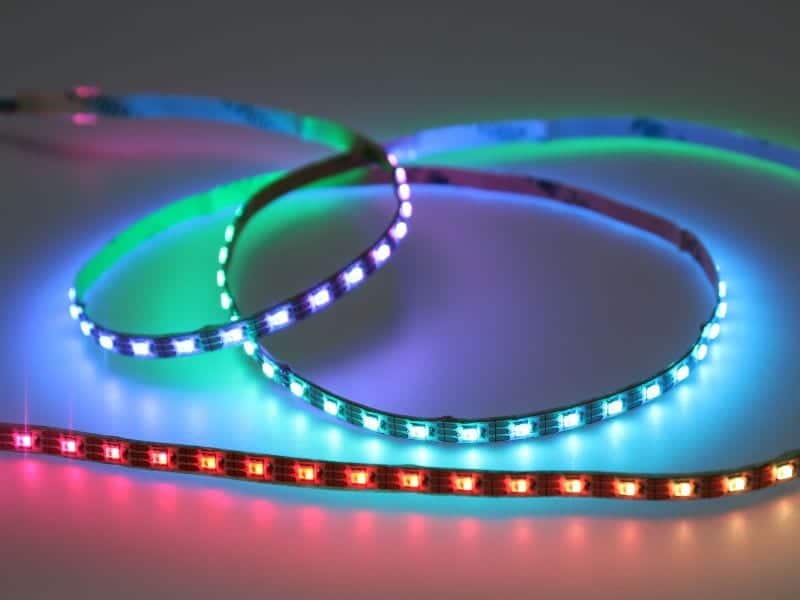

• 120 LEDs per Meter
• Super Tiny!
• WS2812 Communication Protocol (1 Data Line)
• 3M Adhesive Backing

Specifications:

• Model: WS2812B-2020
• Working Voltage: 5VDC
• Current Consumption: 33mA per LED @ full brightness [White] (3.96A per meter)
• LED QTY: 120/M
• PCB Color: White
• Color Resolution: 8 bit / color (256 levels)
• Emitter Color: GRB (Green/Red/Blue)

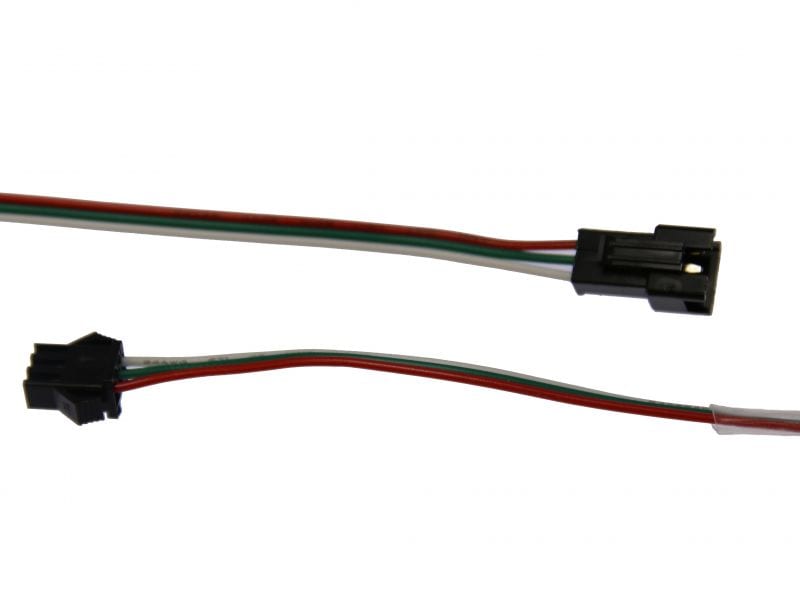

• 3-Pin Female and Male Connectors: VCC(red), Data(green), Ground(white)
• Strip Dimensions: (LxWxH) 1.00m x 4.00mm x 1.30mm (3.3′ x 0.116″ x 0.157″ tall)

Note: These LED strips MUST be connected to power on both sides of the strip if you want all LED’s to display full white @ 100% brightness due to strip resistance being high at this small size.

Resources:

• Arduino Library: http://fastled.io/
