16mm Pushbutton Switch Harness SKU: 700934
Home » 16mm Pushbutton Switch Harness
16mm Pushbutton Switch Harness
$1.95 USD
Push button switch harness for metal push button switch with 5 wires.
In stock
Description

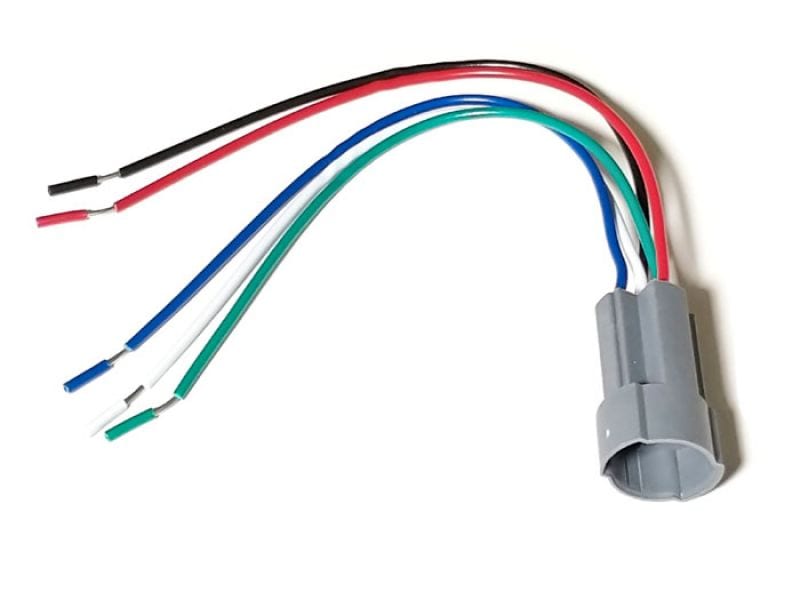

This harness is designed to support the 16mm Push Button Switch series, including the illuminated-ring style. It’s a simple push-fit breakout that brings the normally-open, normally-closed, common, and LED illumination pins out to a set of pre-stripped wires.
- 3A capable
- 150mm wire length
- 5mm stripped ends

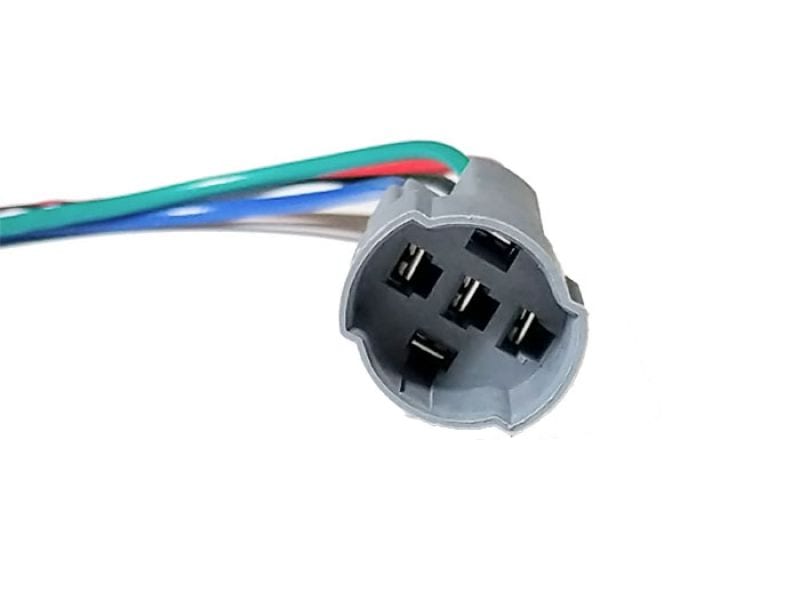

To use it with one of the mating switches, plug it in so the switch pin marked “+” (see the close-up image) matches the red wire, and the following wire colours apply:
- LED + = Red
- LED – = Black
- Switch Common = Green
- Switch NC (normally Closed) = Blue
- Switch NO (normally Open) = White
More Info
Weight | 0.009 kg |
---|---|
Dimensions | 4.70 × 9.40 × 2 cm |
Type |
