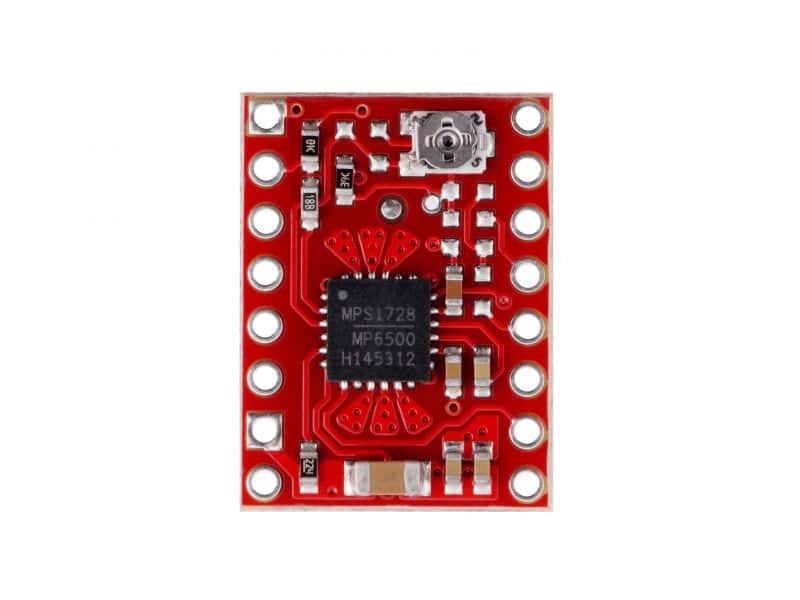

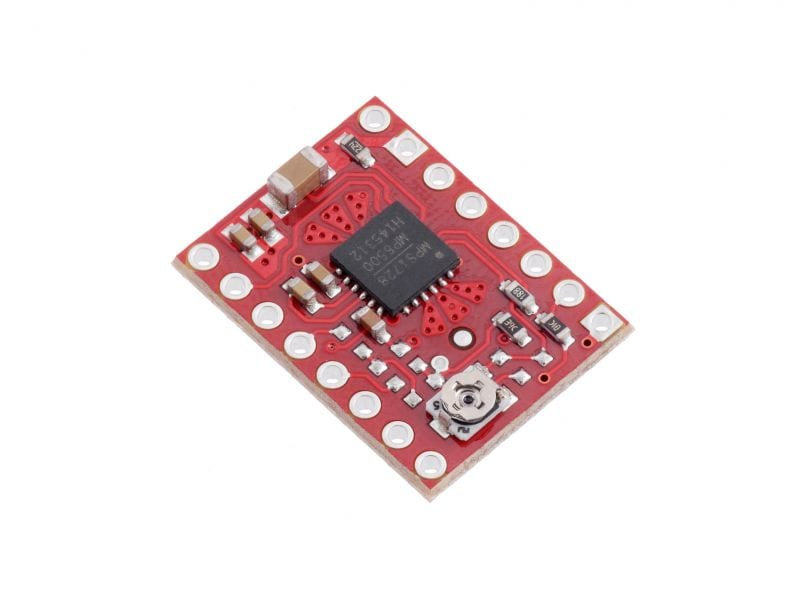

MP6500 Stepper Motor Driver Carrier, Analog Current Control SKU: 51202
Home » MP6500 Stepper Motor Driver Carrier, Analog Current Control

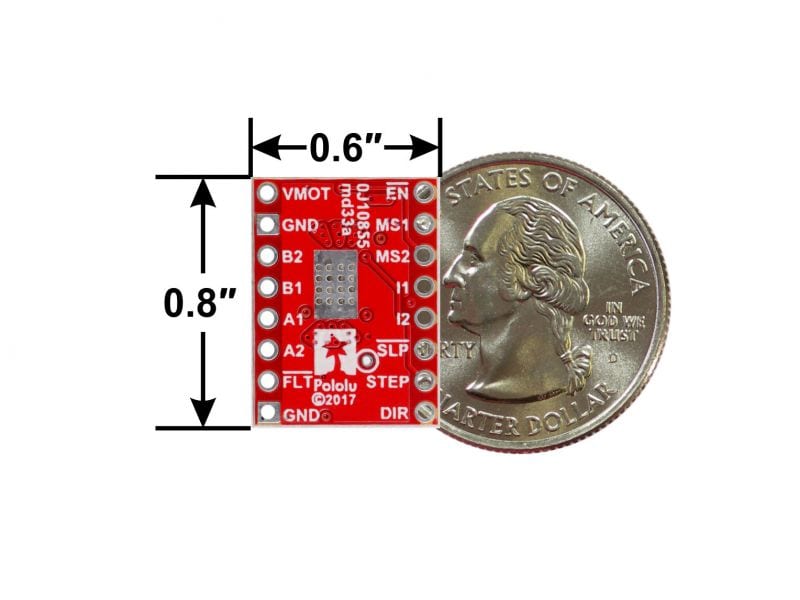

MP6500 Stepper Motor Driver Carrier, Analog Current Control
$5.29 USD
Need a A4988 with dynamic current control? Check out this new Stepper Motor Driver!
In stock
Description

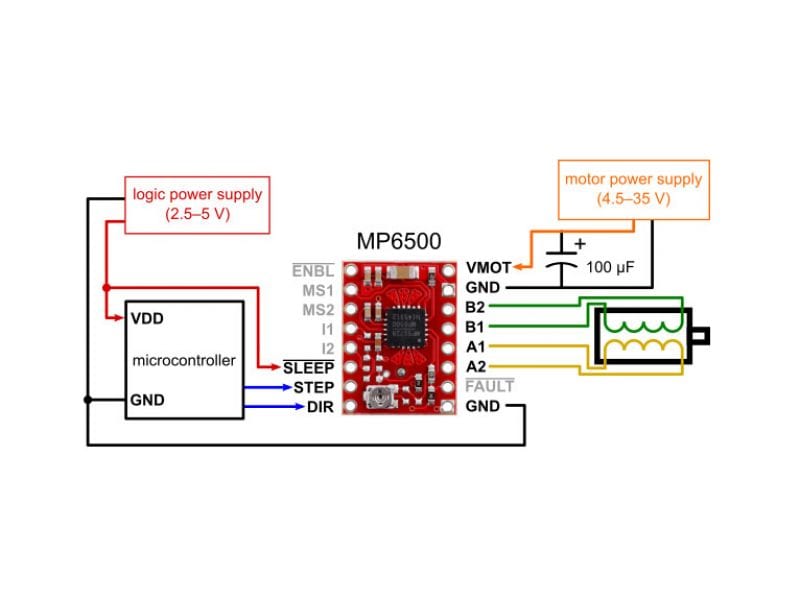

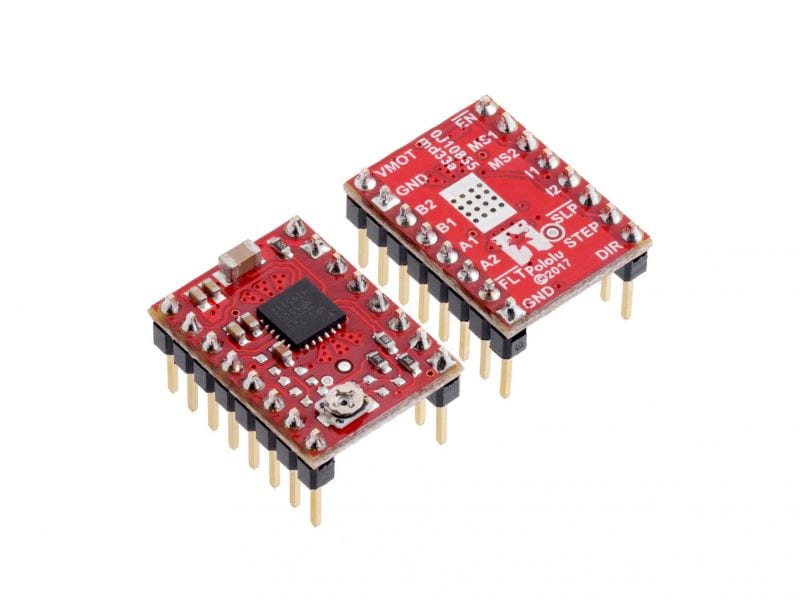

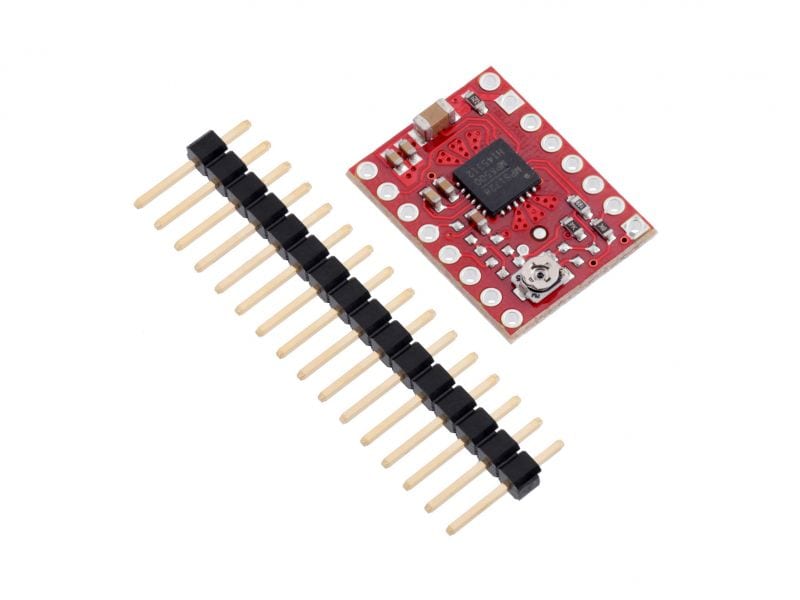

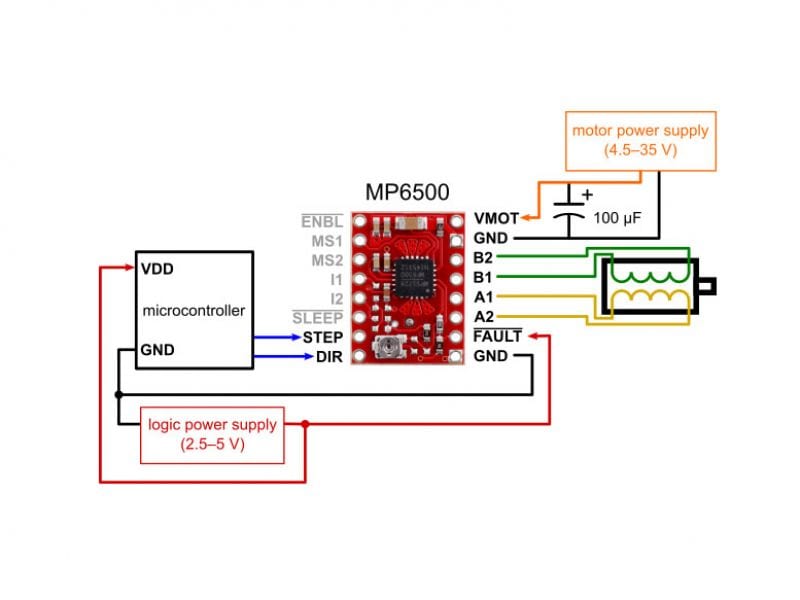

This Pololu breakout board for the MPS MP6500 microstepping bipolar stepper motor driver has a pinout and interface that are very similar to that of the popular A4988 carriers, so it can be used as a drop-in replacement for those boards in many applications. The MP6500 offers up to 1/8-step microstepping, operates from 4.5 V to 35 V, and can deliver up to approximately 1.8 A per phase continuously without a heat sink or forced air flow (up to 2.5 A peak). This version of the board uses an on-board trimmer potentiometer for setting the current limit, and the board ships with 0.1″ male header pins included but not soldered in.
Recommended links

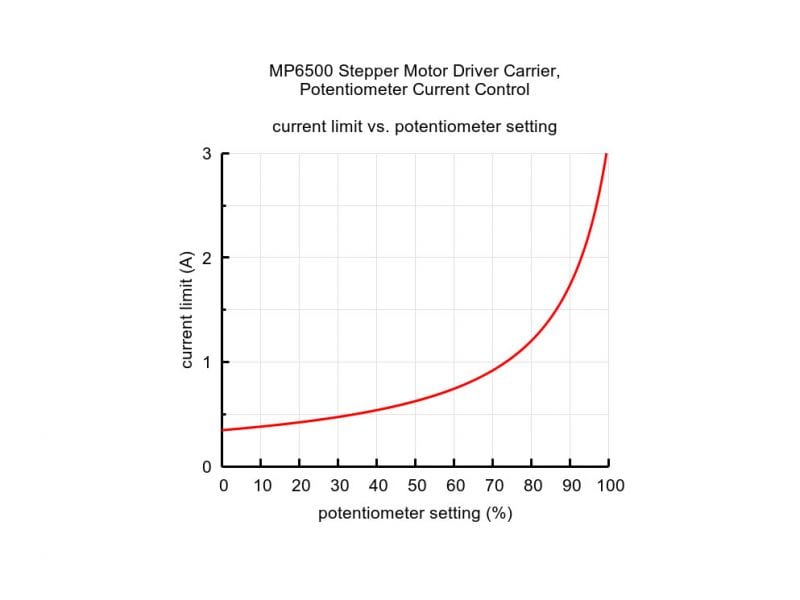

Video: setting the current limit on Pololu stepper motor driver carriers
Resources
51202 - MP6500 Stepper Motor Driver - #2966Datasheet
MPS MP6500 stepper motor driver datasheetDatasheet
MPS Application Note AN120: Undestanding MP6500 Current ControlDocumentation

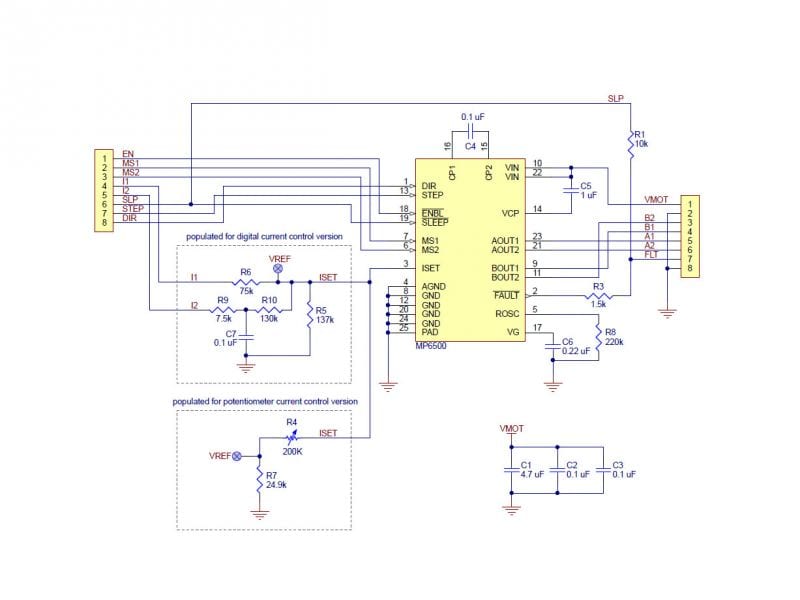

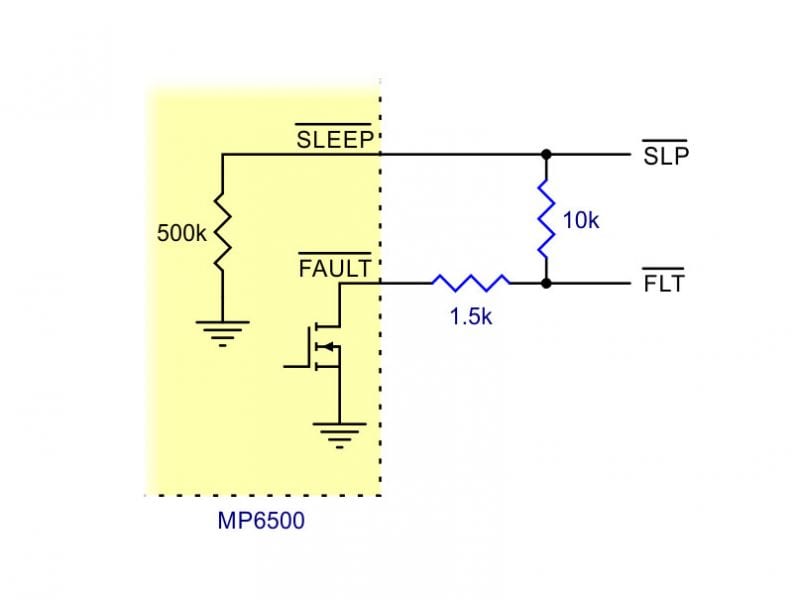

Schematic diagram of the MP6500 Stepper Motor Driver CarrierSchematic
Dimension diagram of the MP6500 Stepper Motor Driver CarrierSchematic
Drill guide for the MP6500 Stepper Motor Driver CarrierDocumentation
3D model of the MP6500 Stepper Motor Driver Carrier, Potentiometer Current ControlDocumentation
3D model of the MP6500 Stepper Motor Driver Carrier, Digital Current ControlDocumentation
More Info
Weight | 0.0034 kg |
---|---|
Dimensions | 8.5 × 7.5 × 0.3 cm |
Type | |
Motors |
