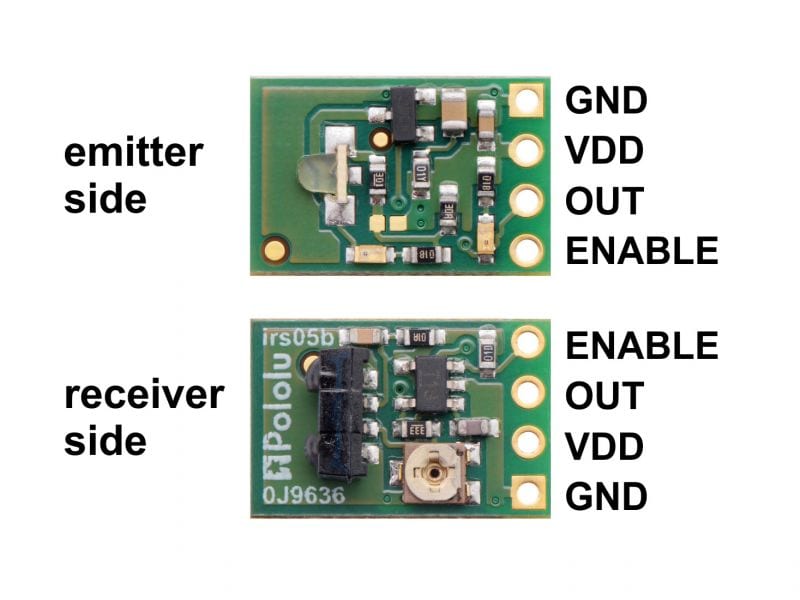

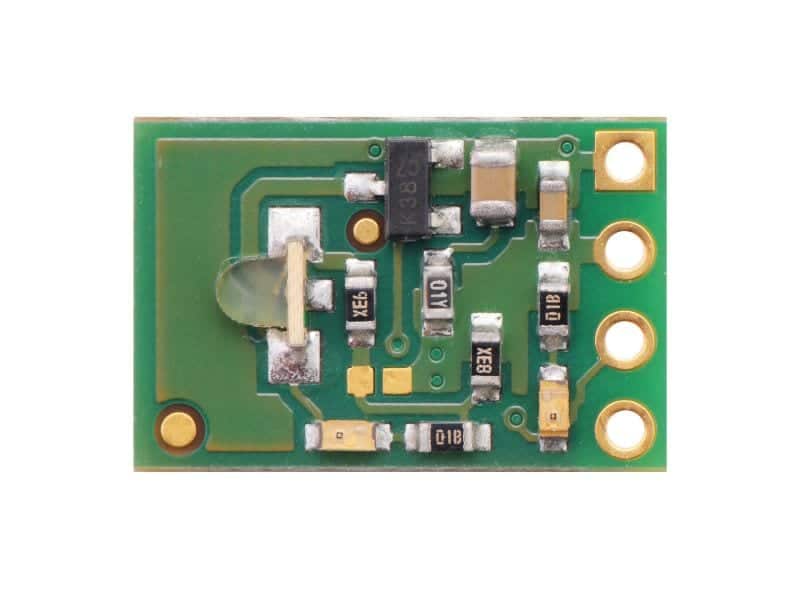

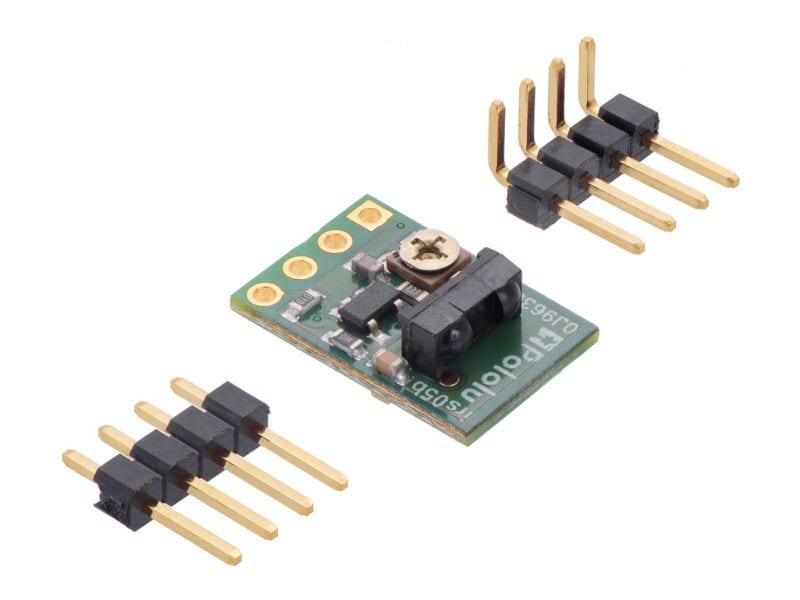

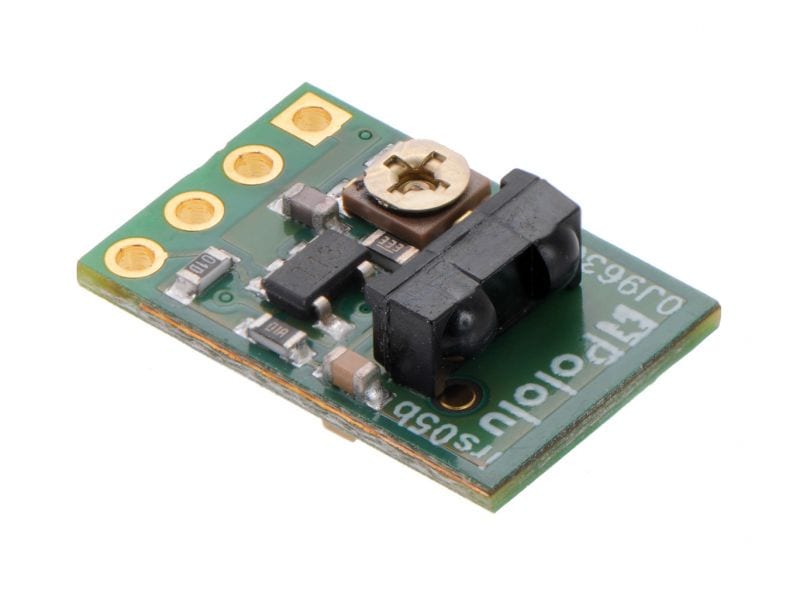

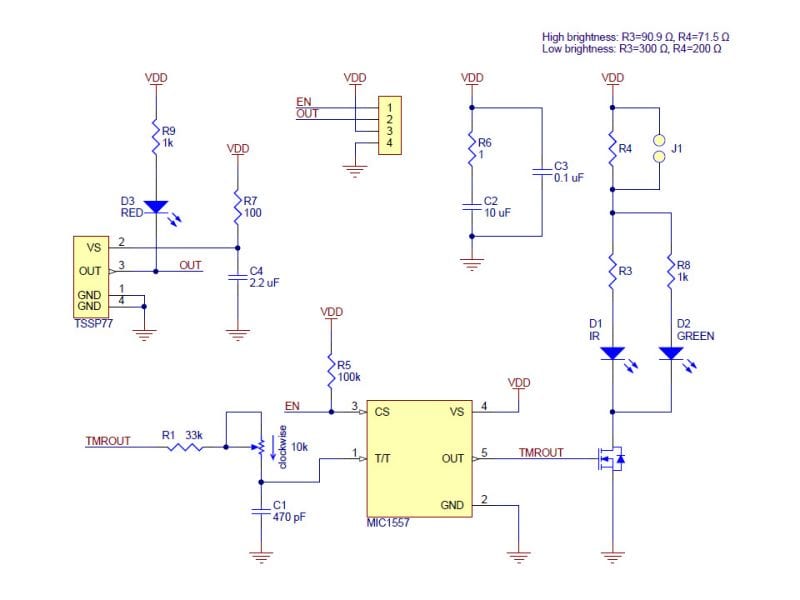

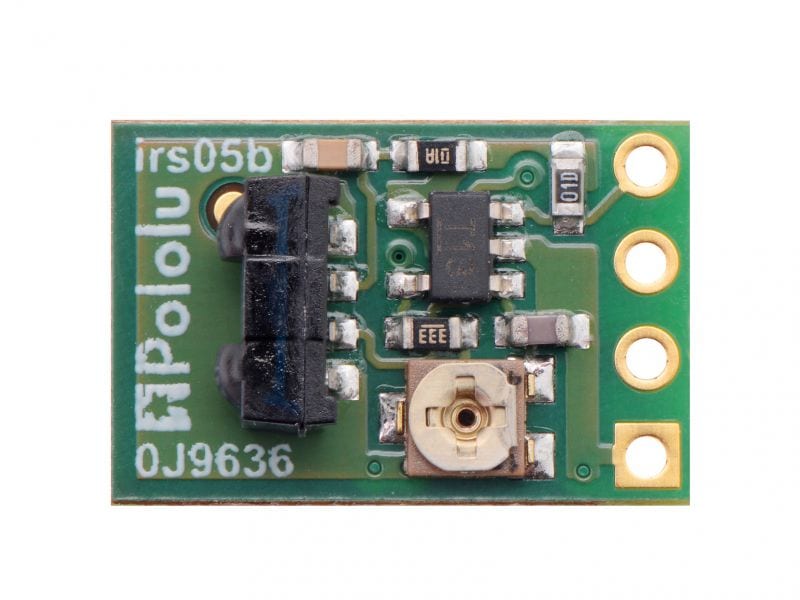

Home / Parts / Sensors / Infrared / Pololu 38 kHz IR Proximity Sensor, High Brightness Pololu 38 kHz IR Proximity Sensor, High Brightness SKU: 51009 Pololu 38 kHz IR Proximity Sensor, High Brightness$5.95 USD Solid, accurate way of determining if something with within range!In stock + Pololu 38 kHz IR Proximity Sensor, High Brightness quantity $5.95 USD- Add to cart SKU: 51009 Categories: Infrared, Parts, Sensors Tag: allAccounts Description More Info Reviews (0) Description This module features a fixed-gain, 38 kHz modulated IR sensor and a corresponding IR LED with oscillator circuit to make a tiny proximity sensor. This high-brightness version draws an average of 16 mA at 5 V and has a typical sensing range up to approximately 24 inches (60 cm). Connections The proximity sensor has four connections: ground (GND), logic power (VDD), digital detection indicator (OUT), and IR emitter enable (ENABLE). The logic power, VDD, should be between 3.3 V and 5 V. Supplying less than 5 V will decrease the IR LED brightness and decrease the sensing range. To run the sensor at full brightness while powered at 3.3 V, bridge the surface mount jumper located on the emitter side of the board. The OUT pin, which is high by default, remains low as long as the TSSP77038 receiver is detecting a sufficient signal. When at the edge of the detection range, this output will alternate between high and low. A red LED on the emitter side of the board is tied to this output and turns on when the pin goes low, providing a visual indication of when the sensor is detecting something. The ENABLE pin turns off the IR emitter LED when it is set low. This pin is high by default and can be left disconnected if dynamic control of the IR emitter is not needed. A green LED on the emitter side of the board is connected in parallel with the IR LED, making it easy to tell when the IR LED is on. The four connections are arranged with a 0.1″ spacing along the edge of the board for compatibility with solderless breadboards, connectors, and other prototyping arrangements that use a 0.1″ grid. You can solder wires directly to the board or solder in either the 4×1 straight male header strip or the 4×1 right-angle male header strip that is included. Tuning the emitter frequency The trimmer potentiometer on the receiver side of the sensor can be used to adjust frequency of the IR emitter LED. The sensing distance can be maximized by tuning for 38 kHz, or it can be intentionally detuned to shorten the sensing range. If you have the appropriate equipment, you can tune it by setting the actual frequency, but a simpler approach is to just observe the performance as you turn the pot. The sensor should work to at least some degree over the entire range of the pot. Limitations This sensor will only tell you if an object is within its sensing range, not how far away it is. At the edge of its detection range, the output will alternate between high and low as it sporadically detects (see the left oscilloscope capture below). The sensor is merely looking at whether or not it is getting any signal back, so object size and reflectivity (to IR) will affect sensing range. The sensing angle is relatively wide in both directions. The high-brightness version in particular might require extra consideration when mounting to prevent seeing surfaces parallel to the sensor’s line of sight. For many applications, additional shielding can be used to block undesirable sensing paths, such as reflections off of the ground, or to reduce interference from ambient lighting. When applying shielding, keep in mind that reflection off the shielding itself can cause undesired activation of the sensor. This sensor can be triggered by ambient IR (e.g. from fluorescent lights; see the right oscilloscope capture below). Some optical shielding, such as by having the sensor mounted receiver-side-down when fluorescent lights are above, might mitigate this. Some advanced analysis of the correlation between the output and toggling of the enable input might also be used to mitigate ambient interference. Multiple sensors can interfere with each other. Multi-module applications might require use of the enable inputs to limit interference. Dimensions: Size: 0.4″ × 0.6″ × 0.2″1 Weight: 0.6 g1 General specifications: Maximum range: 24 in2 Sampling rate: 1 kHz Average input current: 16 mA Voltage: 3-5VDC Identifying markings: PCB dev codes: irs05b More Info Weight 0.0024 kg Dimensions 6.5 × 4 × 0.3 cm Reviews There are no reviews yet.Only logged in customers who have purchased this product may leave a review. Related products Solarbotics Sumovore Baseplate UpgradeSKU: K SV-UPG1For owners of Sumovores purchased prior to May 2005, this kit solidifies your Sumovore with a powder-coated steel baseplate!$6.95 USD In stockAdd to cart 0.22µF Monolithic CapacitorSKU: CP0.22uF0.22µF monolithic ceramic capacitor with many general purpose electronic applications.$0.40 USD In stockAdd to cart 0.01µF Monolithic CapacitorSKU: CP0.01uFThis 0.01uF capacitor is a relatively low value that is useful for higher frequency bicore experiments.$0.30 USD In stockAdd to cart 0.47µF Monolithic CapacitorSKU: CP0.47uF0.47µF monolithic ceramic capacitor with many general purpose electronic applications.$0.45 USD In stockAdd to cart Heavy Duty SensorSKU: TACT3A pair of heavy-duty omnidirectional tactile sensors$5.00 USD In stockAdd to cart
