Description

Need to measure humidity? It’s simple with the Honeywell HIH-4030 breakout board by SparkFun. We’ve seen this project used in a local science fair project (green house monitor), and it works brilliantly at good value.

Connect the sensor output directly to an ADC on a microcontroller and scale the near-linear analog voltage to the humidity scale. That’s it!

Voltage applied to the supply pins should be within 4-5.8VDC, and optimally at 5V. The sensor will typically only consume about 200μA.

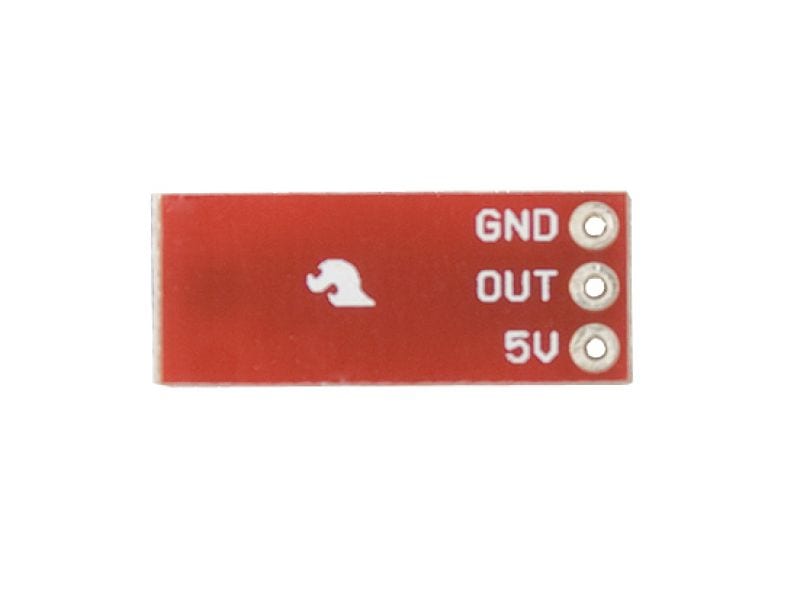

This product comes as shown in the picture, with the HIH-4030 soldered onto the breakout board. The pins of the 3-pin header are spaced by 0.1″.

Features:

• Near linear, analog output
• 4-5.8VDC voltage supply
• All pins broken out to a 0.1″ pitch header
• Laser trimmed interchangeability
• Low power design, typical current draw of only 200μA
• Enhanced accuracy
• Fast response time
• Stable, low drift performance

Dimensions: 0.75 x 0.30 ” (19.05 x 7.62 mm)

Documents:

• Schematic
• HIH-4030 Humidity Sensor Datasheet
