Description

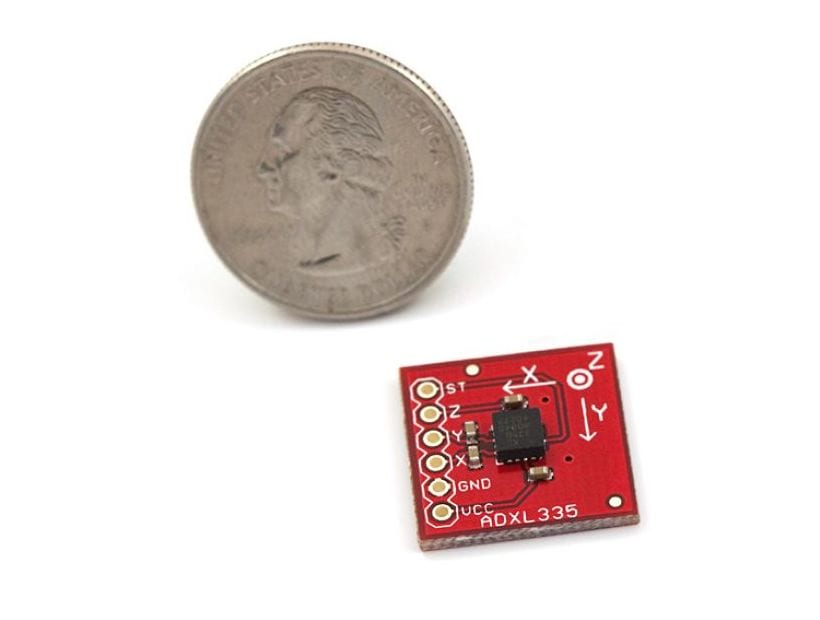

Here’s another SparkFun breakout board, this time featuring the Analog Device ADXL335. This one is particularly sweet in that is has very low nose, and current consumption of only 320µA (that’s 1/3 of 1mA!).

Features:

• 1.8-3.6VDC Supply Voltage
• 350µA typical current consumption
• 10,000G shock survival
• Selectable bandwidth
  • 0.5Hz to 1600Hz for X/Y axis
  • 0.5Hz to 550Hz for Z axis

Note: The silkscreen indicators for the axises are incorrect. Please refer to the datasheet for the correct orientation.
