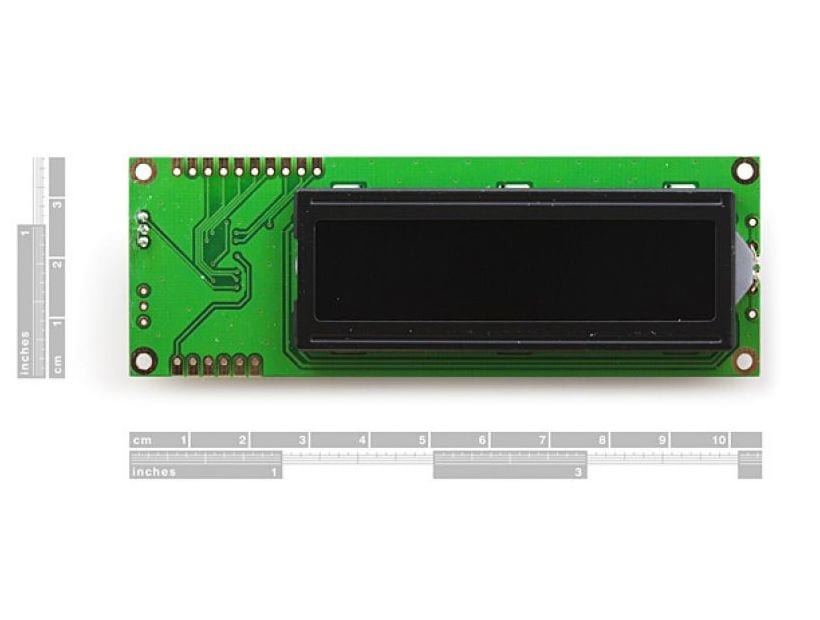

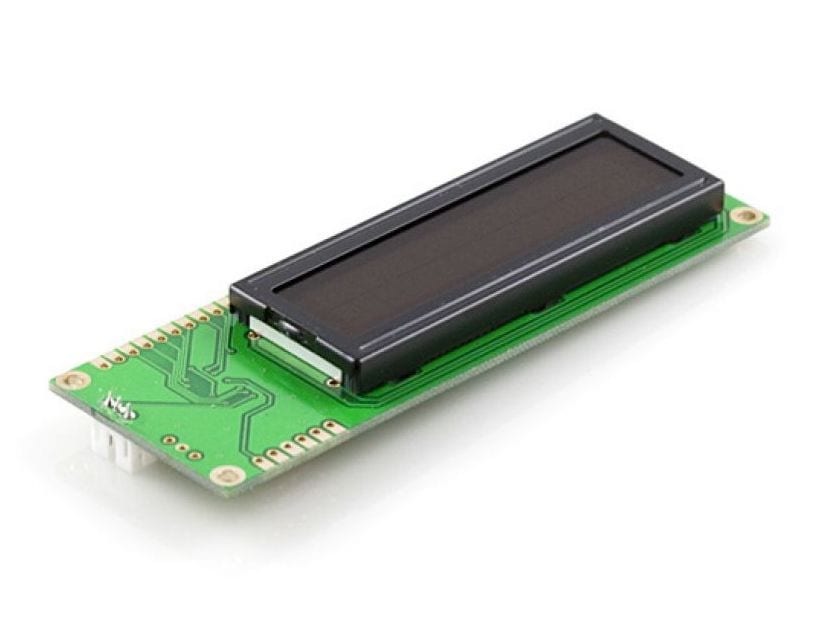

Sparkfun Serial Enabled 16x2 LCD - White on Black 5V

USD $24.95

This is Sparkfun's latest evolution of serial LCD. On-board is a 16x2 character LCD with an embedded circuit based around the PIC16F88. Via a TTL-serial interface you can issue commands to display characters, clear the screen, adjust the backlight brightness, turn the display on/off, and more!

Available on backorder

SKU: 50432 Categories: , , Tag:
DESCRIPTION
RESOURCES
MORE INFO
REVIEWS

DESCRIPTION

Communication with SerLCD requires TTL (5V) serial data at a default baud rate of 9600bps (8-N-1). You can adjust the baud to any standard rate between 2400 and 38400bps. The power (VDD), ground (GND) and RX pins are all broken out to both a 0.1" pitch header as well as a 3-pin JST connector. Displays white characters on a black backlit background.

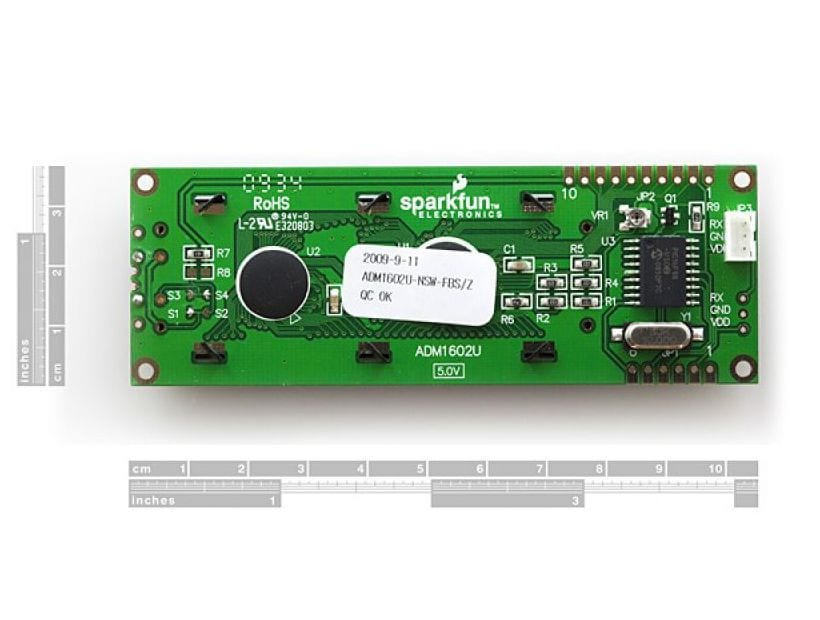

SerLCD has the ability to dim the backlight to conserve power if needed. There is also a potentiometer on the back of the display to adjust the contrast.

Features:

  • Embedded PIC 16F88 utilizes onboard UART for greater communication accuracy
  • Adjustable baud rates of 2400, 4800, 9600 (default), 14400, 19200 and 38400
  • Operational Backspace
  • Greater processing speed at 10MHz
  • Incoming buffer stores up to 80 characters
  • Backlight transistor can handle up to 1A
  • Pulse width modulation of backlight allows direct control of backlight brightness and current consumption
  • All surface mount design allows a backpack that is half the size of the original
  • Faster boot-up time
  • Boot-up display can be turned on/off via firmware
  • User definable splash screen

Dimensions:

  • PCB: 103x36mm
  • LCD: 71.4x26.4mm

Additional information

Weight 0.0357 kg
Dimensions 14.8 × 6.6 × 0.9 cm
Characters
