Description

The Hakko FX-888D is an updated digital version of the popular FX-888 and includes several new features. User-selectable preset temperatures and digital calibration simplify user setup and operation, and the new password protection and low-temperature alarm provides process control and helps protect against cold solder joints.

Features:

• Adjustable temperature control
• Temperature range 120° – 899°F (50° – 480°C)
• Digital display shows °F or °C
• Maintains idle temperature within 1.8°F (1°C) when set to 400 – 899°F (200 – 480°C)
• Ceramic heating element and sensor ensures rapid heat-up temperature and fast thermal recovery
• Password protected temperature setting functionality
• Preset mode allows you to store up to five (5) preset temperatures
• Slender, lightweight ergonomic iron handles
• Compact design takes up less bench space
• Wide selection of tips available for soldering SMD and through-hole applications
• Use with Hakko T18 series tips
• ESD Safe

Base Station Specifications:

• Power Consumption: 70W / 120VAC
• Temperature Range: 120° – 899°F (50° – 480°C)
• Temperature Stability: ±1.8°F (1.0°C)
• Temperature Control: Closed-loop sensor
• Dimensions: 100x120x120mm (3.9×4.7×4.7″)
• Weight: 2.6 lbs (1.2 kg)
• ESD Safe: Yes
• IPC J-STD-001: Meets or Exceeds requirements
• APPROVED: MET certified

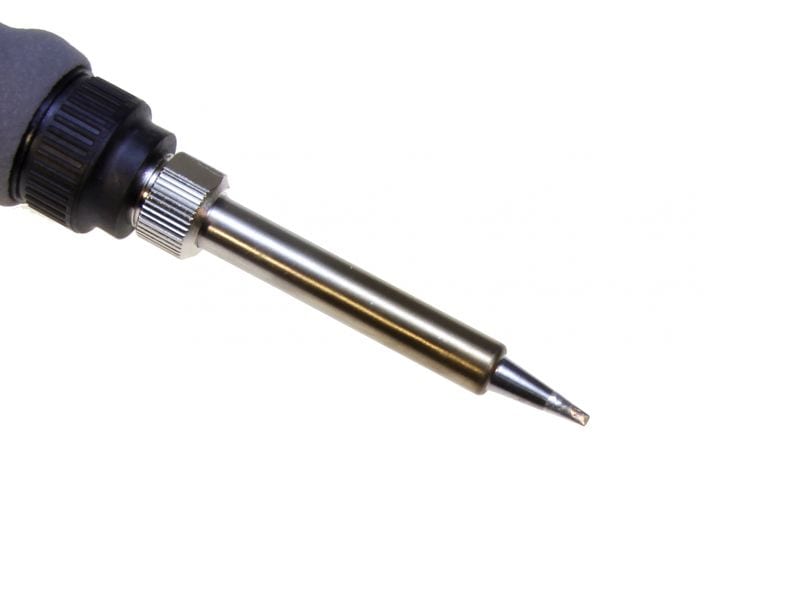

Soldering Iron Specifications:

• Model: FX-8801
• Part: FX8801-02
• Power Consumption: 65W / 26VAC
• Tip: T18 Series
• Standard Tip: T18-D16 (shape 1.6D)
• Tip-to-Ground Resistance: < 2 ohms
• Tip-to-Ground Potential: < 2mV
• Heating Element: Ceramic
• Handpiece Length (w/o cord): 8.5 in. (217 mm) with T18-D16 tip
• Cord Length/Reach: 3.9 ft. (1.2m)
• Weight  (w/o cord): 0.1 lb (46g) with T18-D16 tip

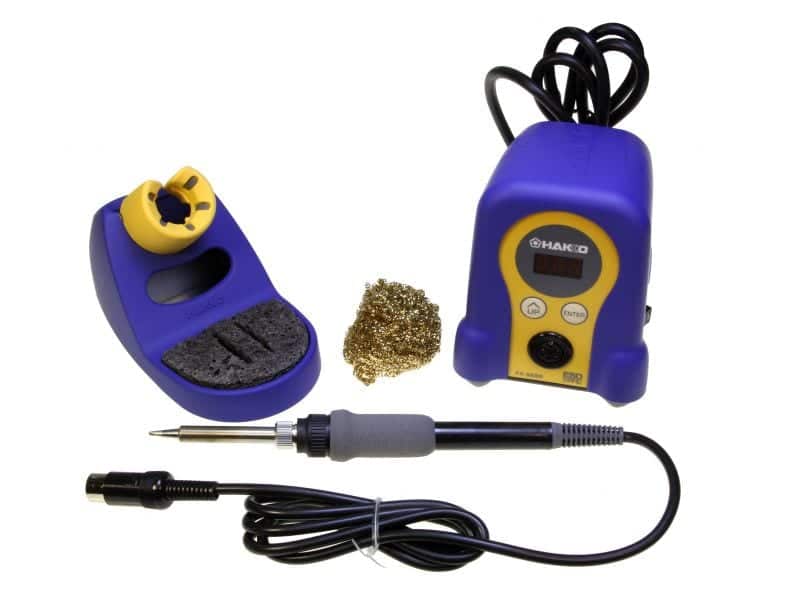

Contents:

• Hakko FX-888D Station (North American)
• FX8801-01 Soldering iron FX8801-02
• Soldering iron tip with FX-8801 T18-D16

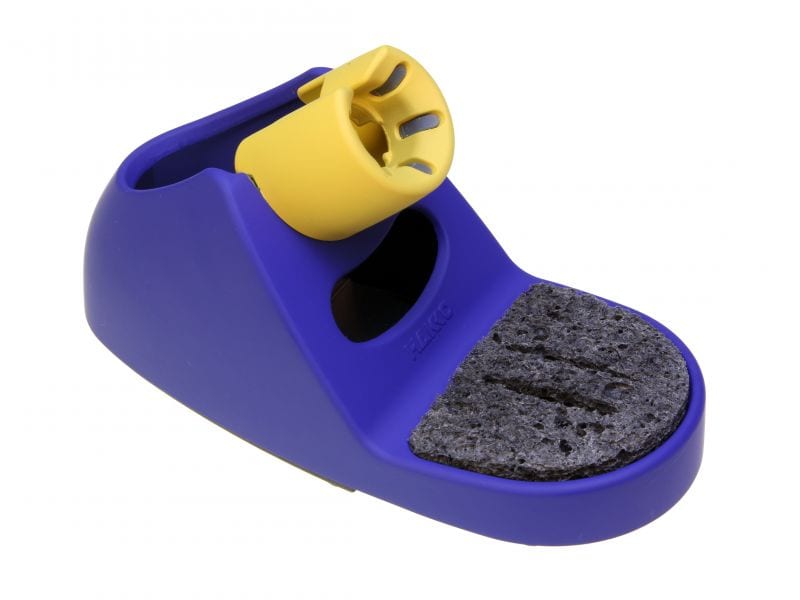

• Iron holder FH800-01BY
• Cleaning sponge A1559
• Tip cleaning wire A1561
• Instruction Manual (North American)
• Shipping Dimensions: 242(W) x 178(H) x 242(D) mm; 9.5(W) x 7.0(H) x 9.5(D) in.
• Shipping Weight: 4.7 lbs (2.13 kg)
