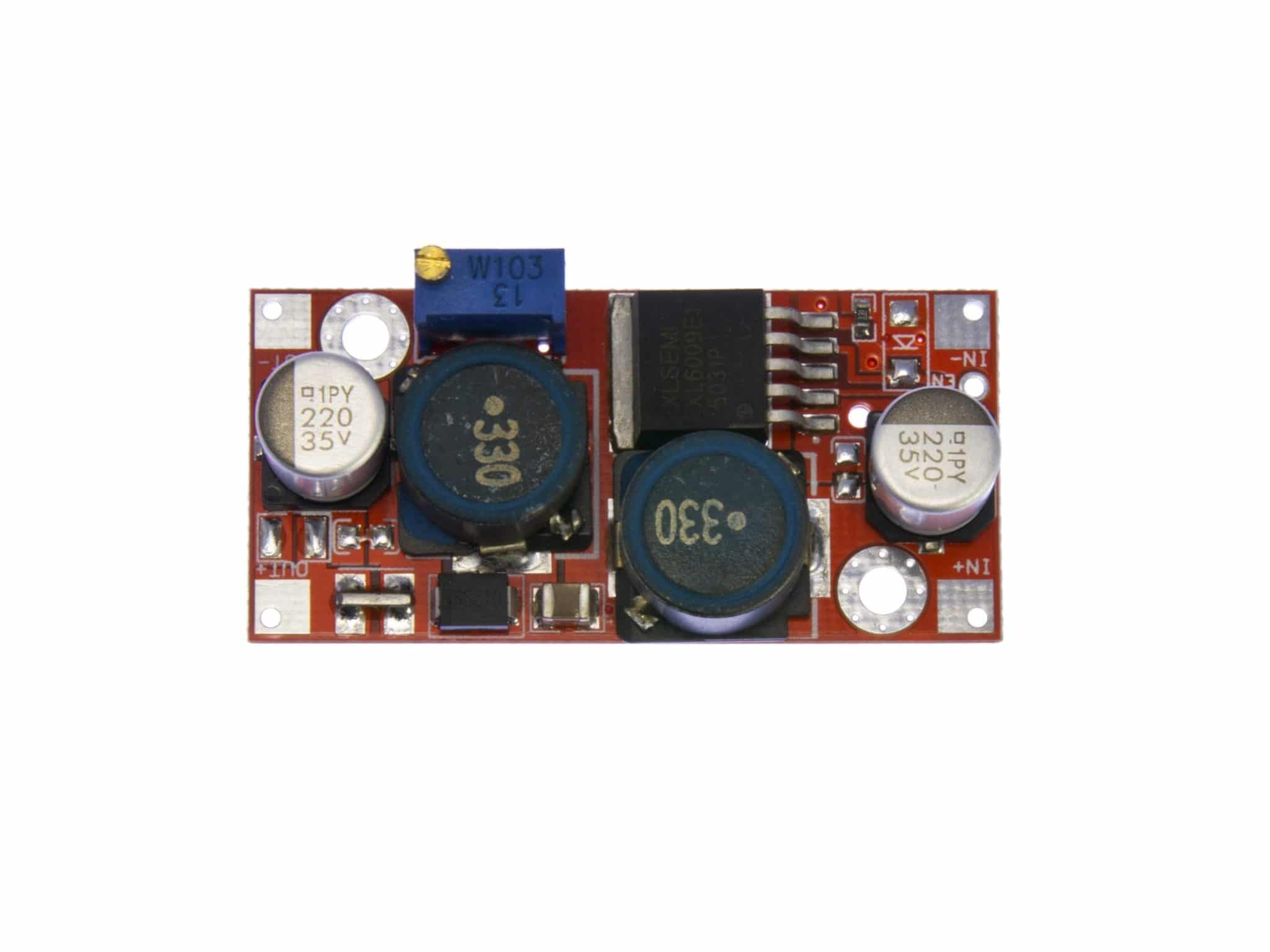

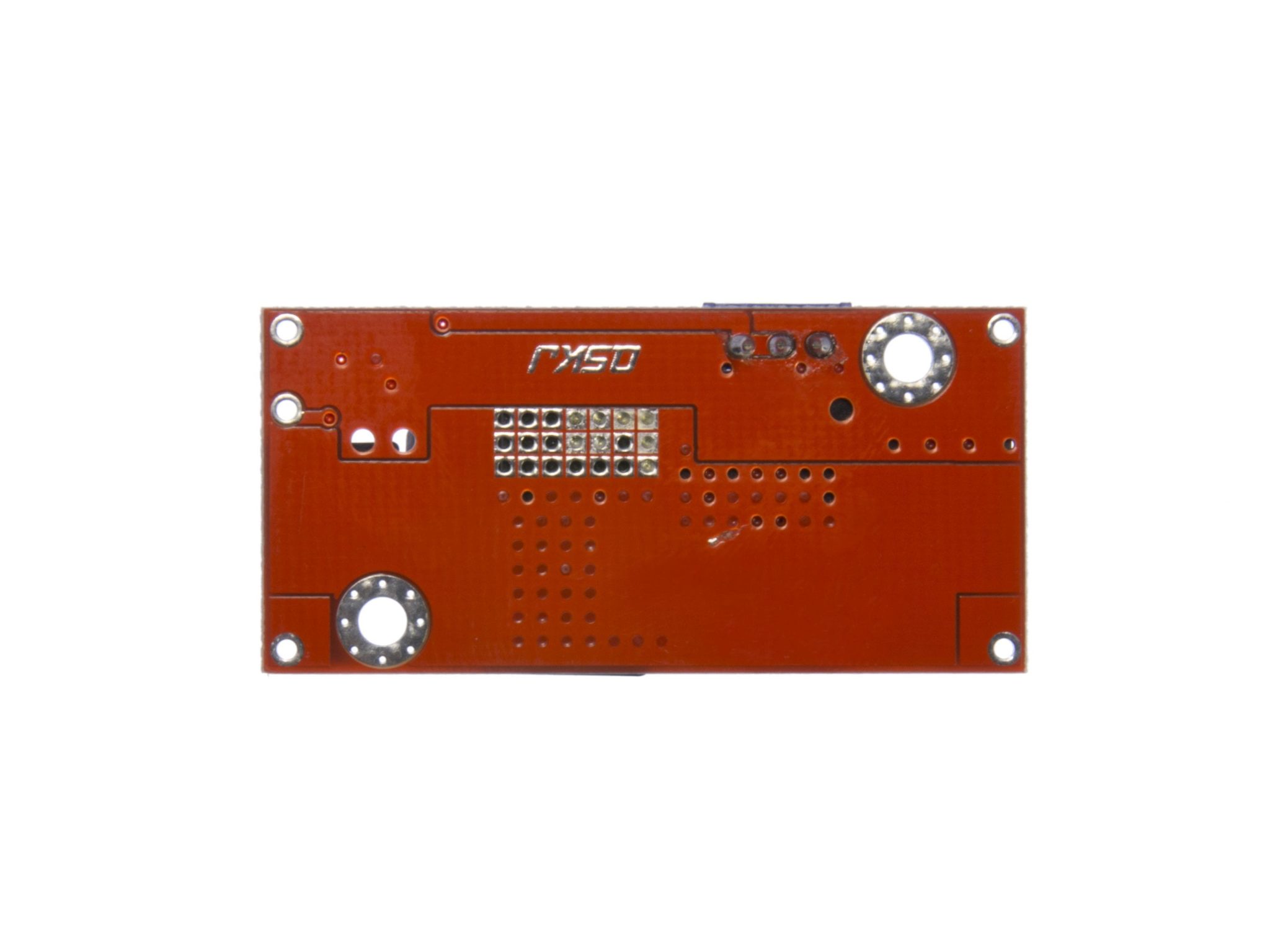

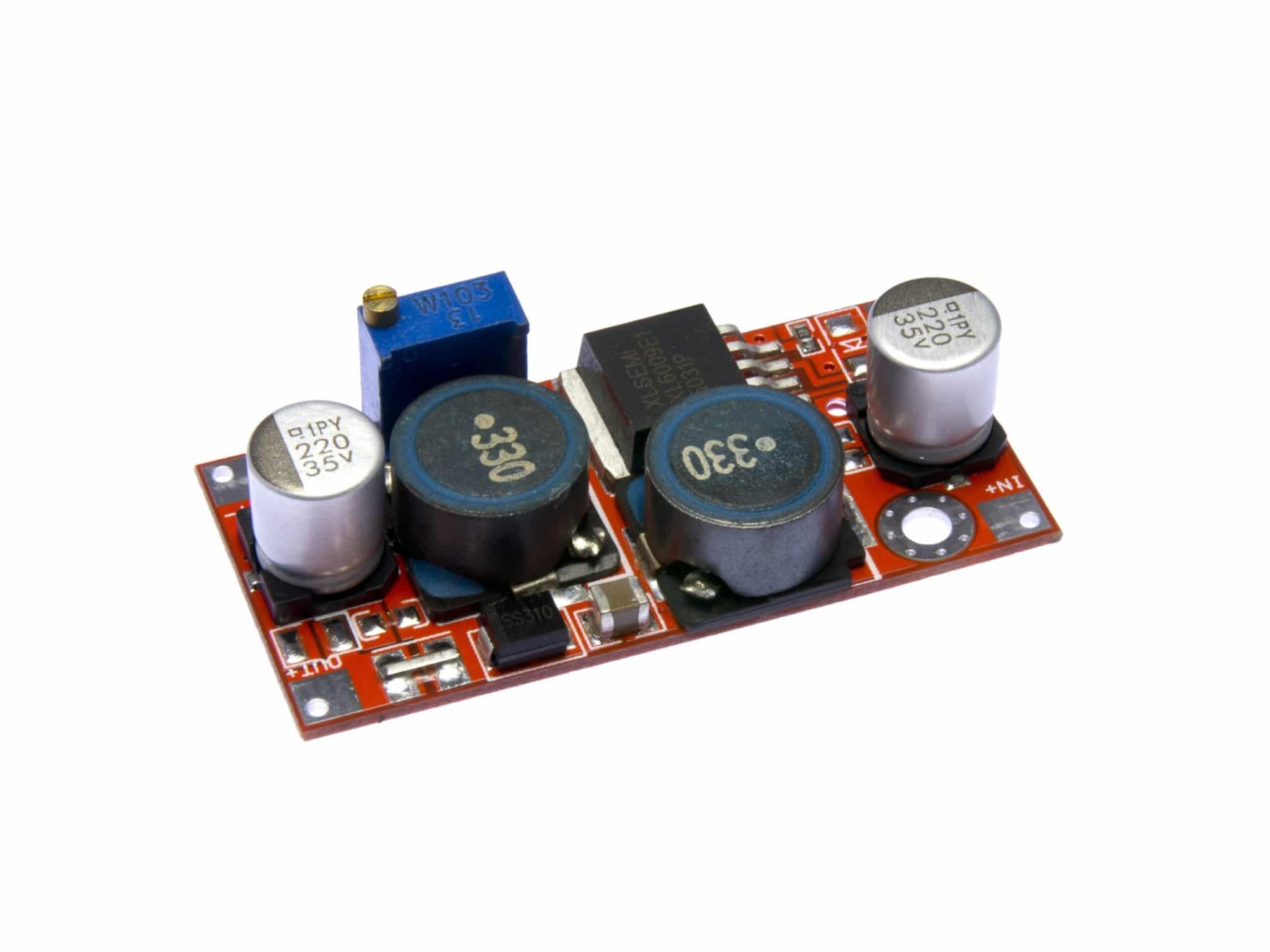

Buck Boost Converter
USD $4.50
1.25 ~ 35V Buck/Boost Regulator with 3A current capability
DESCRIPTION
RESOURCES
MORE INFO
REVIEWS
DESCRIPTION
This regulator will pretty much take any voltage between 5~32V and convert it to anything between 1.25 ~35V! Unlike standard Buck converters, this regulator can also boost the voltage as needed.
Applications
- Down-volting from a 12-24VDC supply rail to a local 5VDC
- Small photovoltaic or generator regulation (but this is not a MPPT converter, but will stabilize a solar cell output)
Specifications
- Module Properties： Non-isolated boost (BOOST)
- Rectification： Non-Synchronous Rectification
- Input Range：3.8V ~ 32V
- Output Range：1.25V ~ 35V
- Input Current：3A ( max ) , no-load 18mA (5V input , 8V output , no-load is less than 18mA. Higher the voltage , the greater the load current . )
- Conversion efficiency：< 94% ( greater the current , the lower the efficiency )
- Switching frequency：400KHz
- Output Ripple：50mV ( the higher the voltage , the greater the current , the greater the ripple )
- Load Regulation：± 0.5%
- Voltage Regulation：± 0.5%
- Operating Temperature：-40℃ ~ +85℃
- Dimensions：48x25x14mm (L*W*H)
RESOURCES & DOWNLOADS
Additional information
| Weight | 0.0137 kg |
|---|---|
| Dimensions | 5 × 2.5 × 1.5 cm |
| Type |
