Description

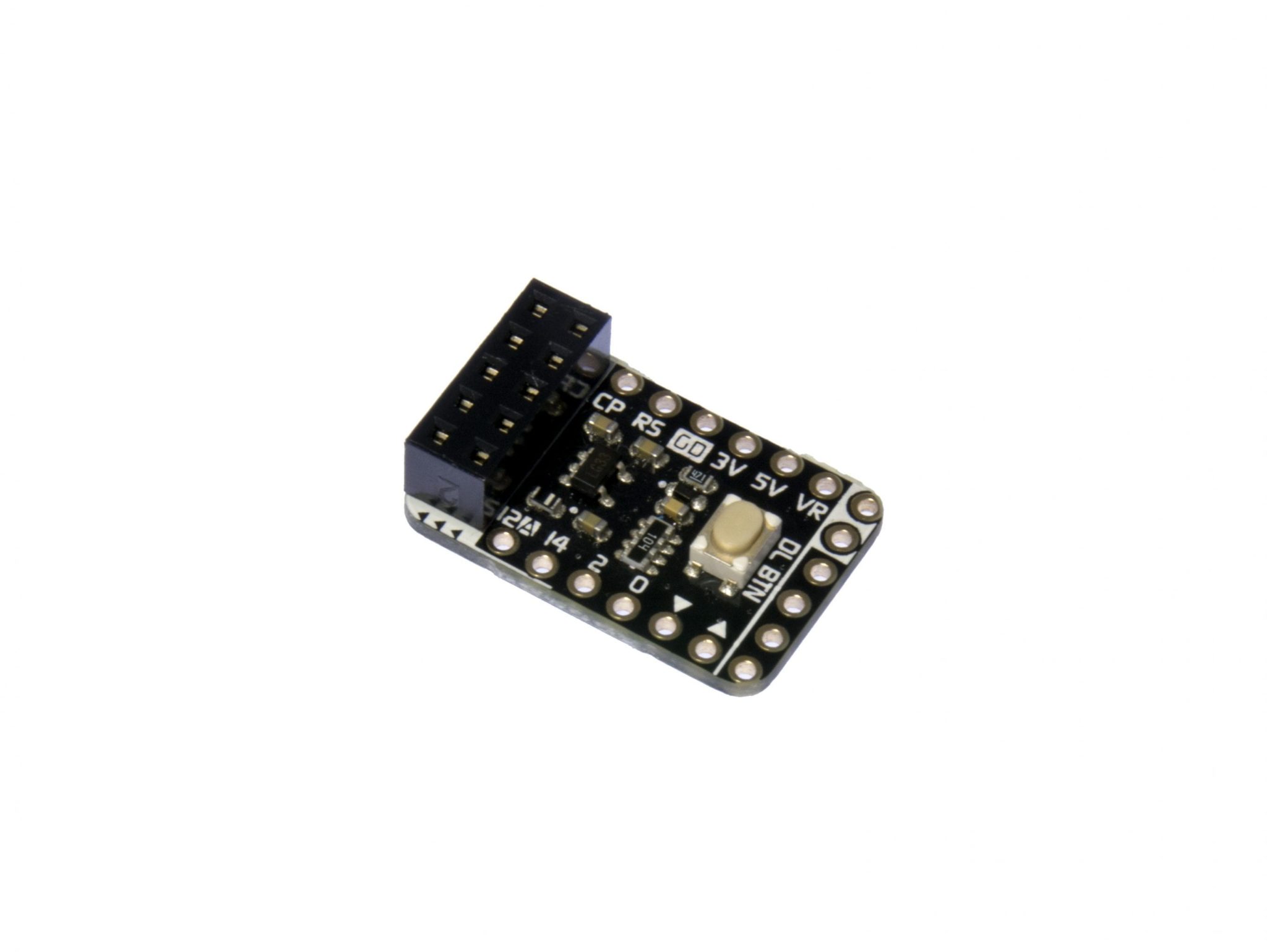

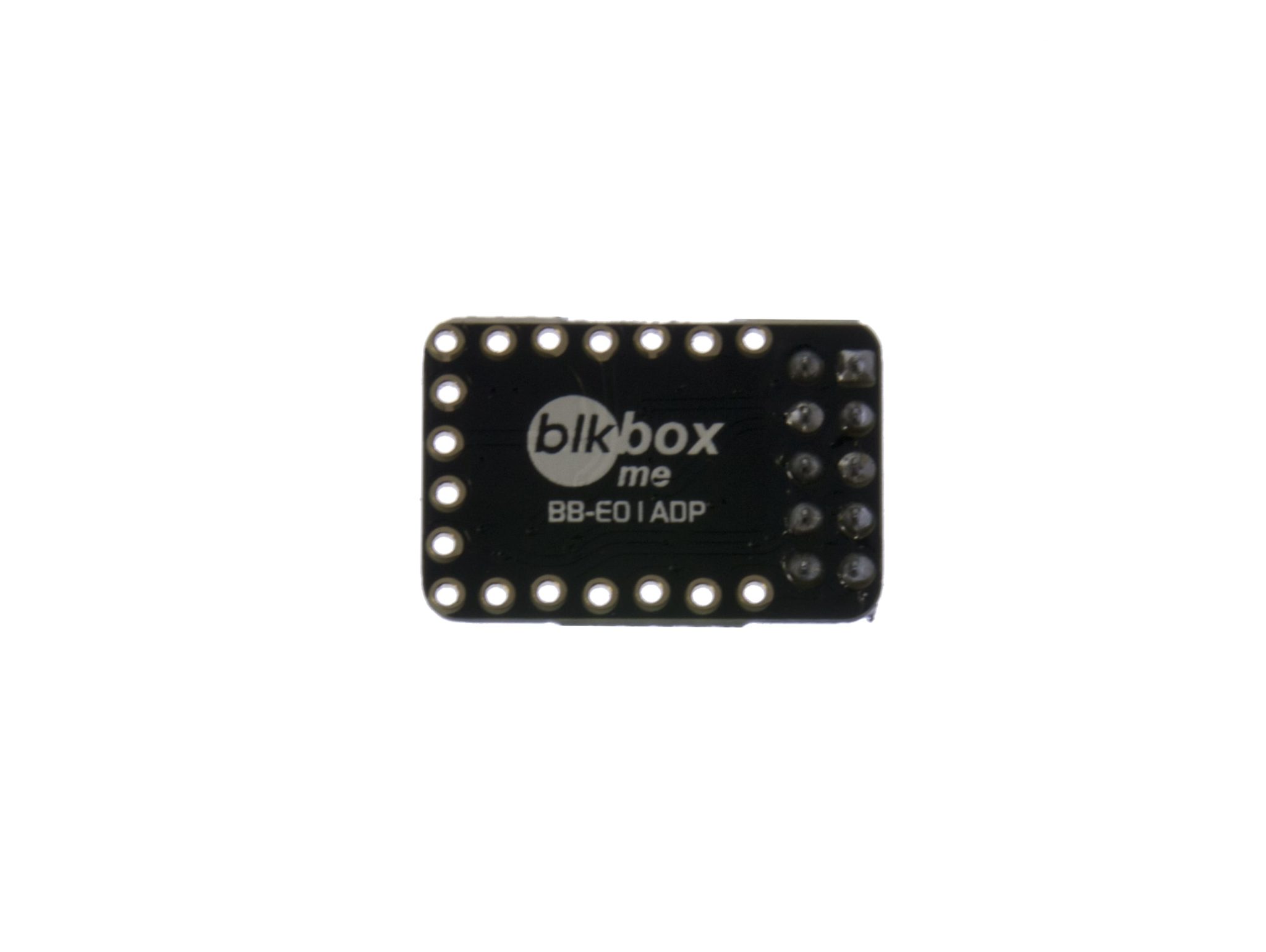

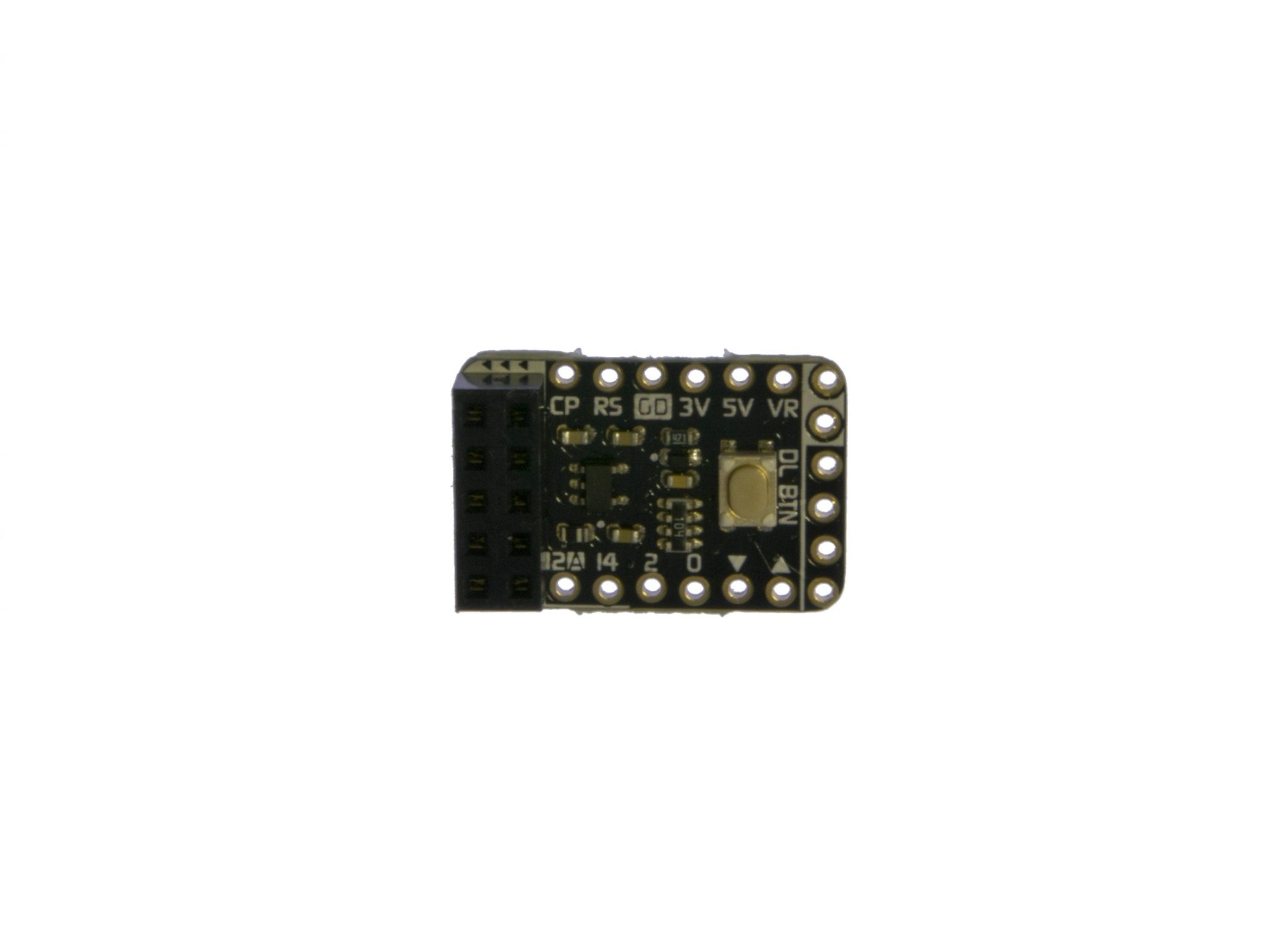

Programming an ESP0-01 (or any other ESP8266 variant) can be a bit of a button-toggling dance even after you get it wired up correctly. This handy little module by Blkbx makes it so much easier, by making it a 1-touch procedure. Plug in your ESP-01, an USB-to-TTL adapter, and use the standard ESP toolchain to do the programming. Just hold the button until the upload procedure starts, and release.

You’ll definitely want one of these if you’ve ever had to breadboard a quicky-programmer adapter for these more than once!

Specifications:

• 5-16VDC power input on external VR line
• Onboard 3.3VDC 350mA regulator
• 5V USB-TTL compatible
• Built-in auto-reset for straightforward programming
• 23x15mm (0.9×0.6″) board size

Note: Does not come with TTL pin header. We recommend either the MPin6 or MPin6-RA
