Description

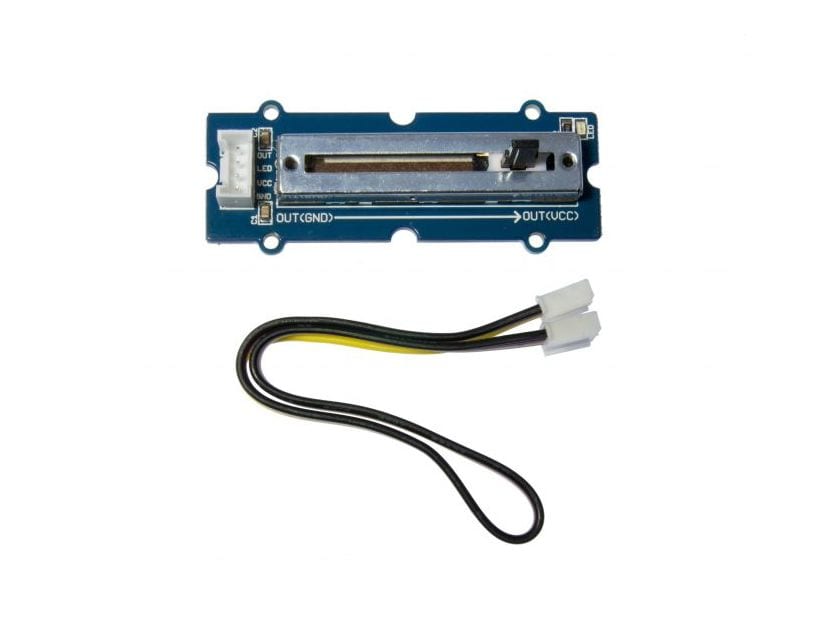

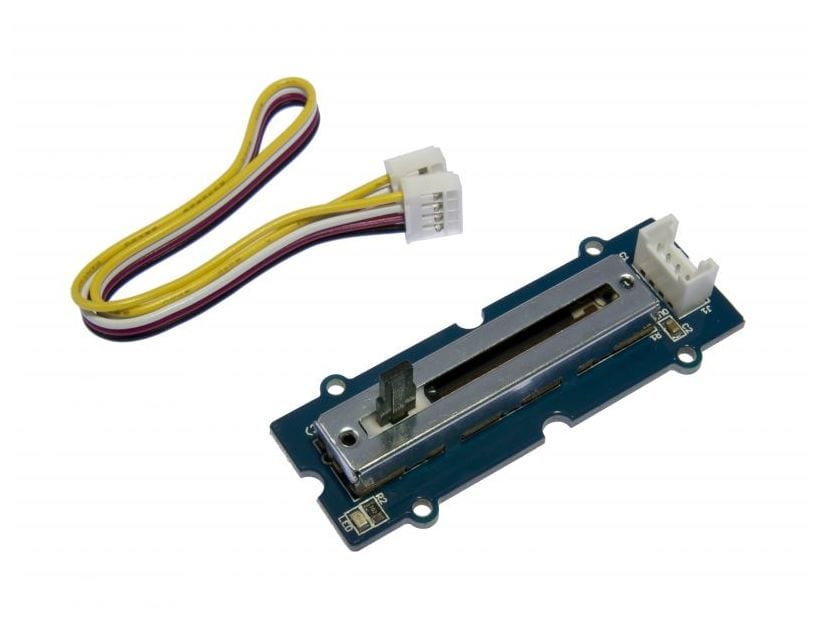

This slide potentiometer is a linear variable resistor with a total resistance of 10k. When you move the lever from one side to the other, its output voltage will range between 0 V to the VCC you apply. Three of four Grove pins are connected to VCC, GND and the ADC IN on the slide, while the remaining pin is connected to a green indicator LED. You can use the indicator LED to visually display the change on the potentiometer.

• 30 mm long slide length
• Linear resistance taper
• Grove compatible

Application Ideas

• Voltage divider: a linear circuit that produces an output voltage as a fraction of its input voltage
• HID for controlling panels
