36T GT2 5mm bore Timing Pulley SKU: 14415
Home » 36T GT2 5mm bore Timing Pulley
36T GT2 5mm bore Timing Pulley
$8.95 USD

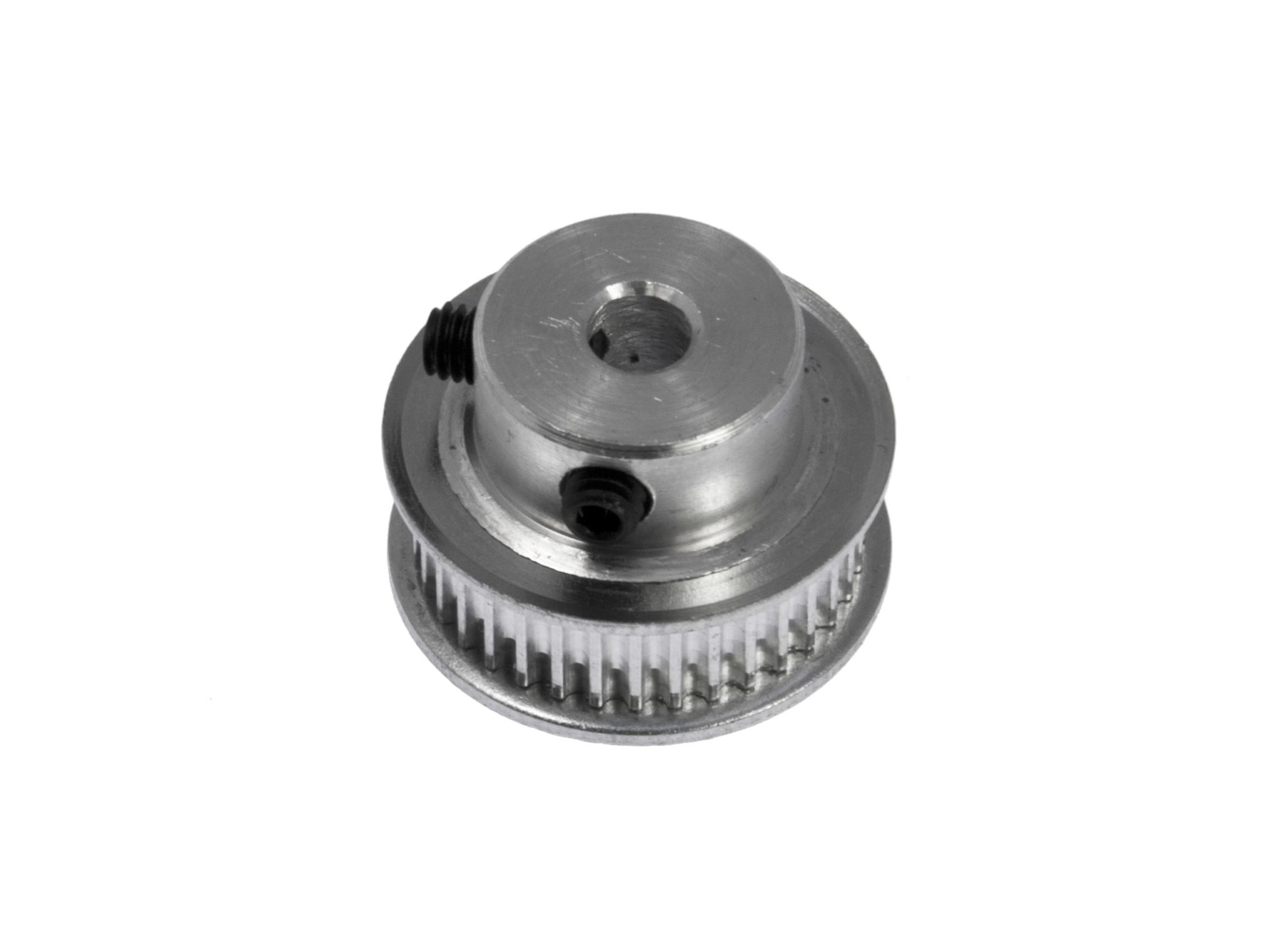

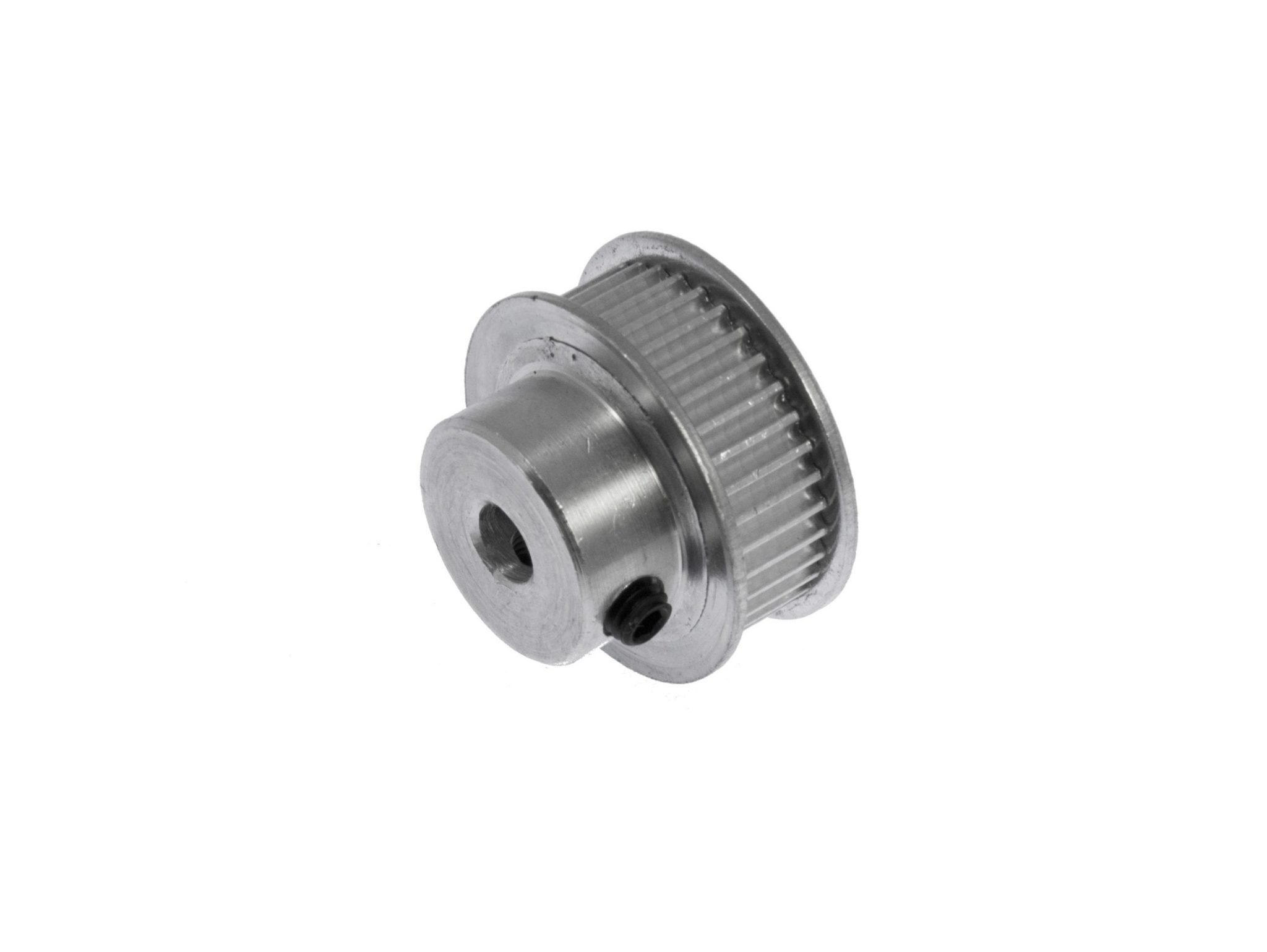

36 Tooth 5mm Bore Pinion Pulleys, ideal for stepper motors (GT2 style)
In stock
Description
These 5mm Bore Pinion Pulleys can attach directly to any of our stepper motors that have a 5mm output shaft. Simply slide the pulley onto the motor shaft and tighten the M4 set screws (2 of them), using a 2mm Hex key. These pulleys allow belts up to 6mm in width. They can be used for building pan and tilt systems, 3D printers, camera sliders, XY tables, robotic drive mechanisms, etc.
Specifications:
- 36 Tooth GT2
- 5mm bore
- 7mm tooth width
- Dual set screws
More Info
Weight | 0.0154 kg |
---|---|
Dimensions | 2.4 × 1.7 × 2.5 cm |
